HERMLE Z496-K Series Ultra High Capacity Refrigerated Centrifuges

Overview

The Z496-K centrifuges offer the highest tube/bottle capacity in the Hermle line.

Several rotors are available, including a popular 4 position swinging bucket rotor with a wide offering of accessories for the centrifugation of tubes, bottles, plates and blood bags. The high capacity rectangular buckets accept microplates directly or a variety of tube inserts for accommodating as many as 40 x 50ml conical or 96 x 15ml conical tubes per run.

Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving up to 99 saved programs, the easy to use front panel can adjust accel/decel rates, time, and convert operation between rpm and rcf. The powerful refrigeration system, with a range of -20° to 40° C, also features a precool function that ensures the temperature of the chamber is optimized for any application.

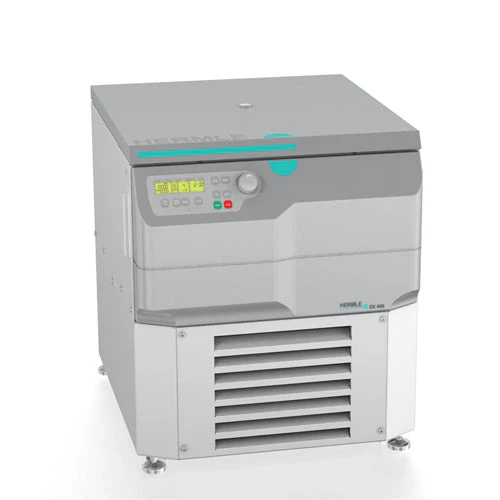

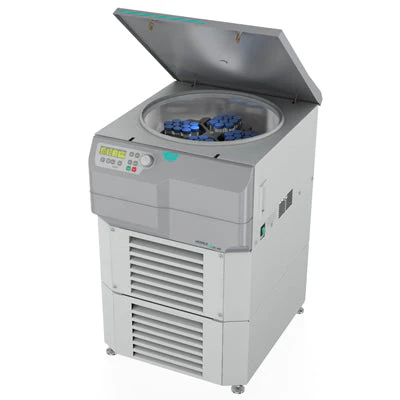

A standard floor standing model is available (height: 38.6 in.) which includes a convenient lower drawer for the storage of frequently used rotors and accessories. In addition, a space saving “underbench” model (height: 27.5 in.) is available when under the counter storage is preferred. Both models are equipped with wheels for easy maneuverability around the laboratory.

For all your high capacity, high volume needs, the Z496-K floor standing series is the perfect centrifuge.

Features:

• Speed up to 10,500 rpm
• G-Force up to 16,022 x g
• Swing Out Capacity:
• 4 x 1000ml
• 4 x 500/750ml blood bags
• 40 x 50ml
• 96 x 15ml
• 24 x microplates
• Angle Rotor Capacity
• 10 x 50ml
• 6 x 250ml
• 4 x 500ml
• Microprocessor Control
• Over-speed protection
• Automatic rotor identification
• Program Storage (99)
• Pre-Cool function
• Momentary spin button
• Imbalance detection
• Adjustable Accel/Decel
• Audible end of run alarm
• Available underbench model
• Maintenance free induction drive
• Motor driven safety lid-lock
• Quiet operation, less than 65 DB
• Splash proof display
• Powerful refrigeration
• Storage drawer (Floor standing only)

Additional Rotor specifications can be found on the accessory pages linked below

Key Attributes

RPM	10,500
RCF	16,022
Refrigeration	Yes
Capacity	4 x 1000 ml
Warranty (years)	5

Manufacturer Specifications

Speed Range: 200 to 10,500 rpm
Max. RCF: 16,022 xg
Max Capacity: 4 x 1000 ml
Timer: up to 99 hr, 59 min.
Dimensions: Underbench
24 x 27 x 27.5 in.
(W x D x H) 62 x 69 x 70 cm.
Floor Standing
24 x 27 x 38.6 in.
62 x 69 x 98 cm.
Weight: 346 lbs (157 kg)
Floor Standing 419 lbs (190 kg)
Electrical: 230V, 50/60Hz
Power Draw: 2300 W
Temp Range: -20° to 40° C

For additional Rotor specifications, see accessories link below
