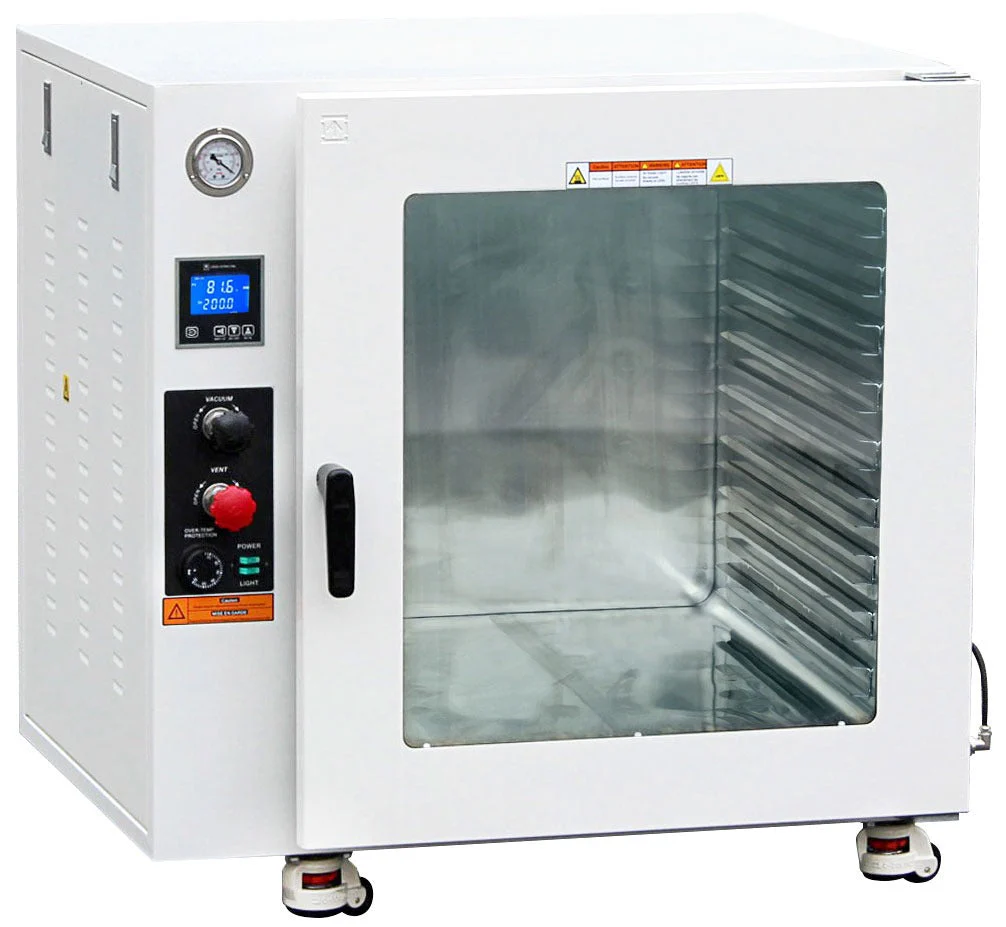

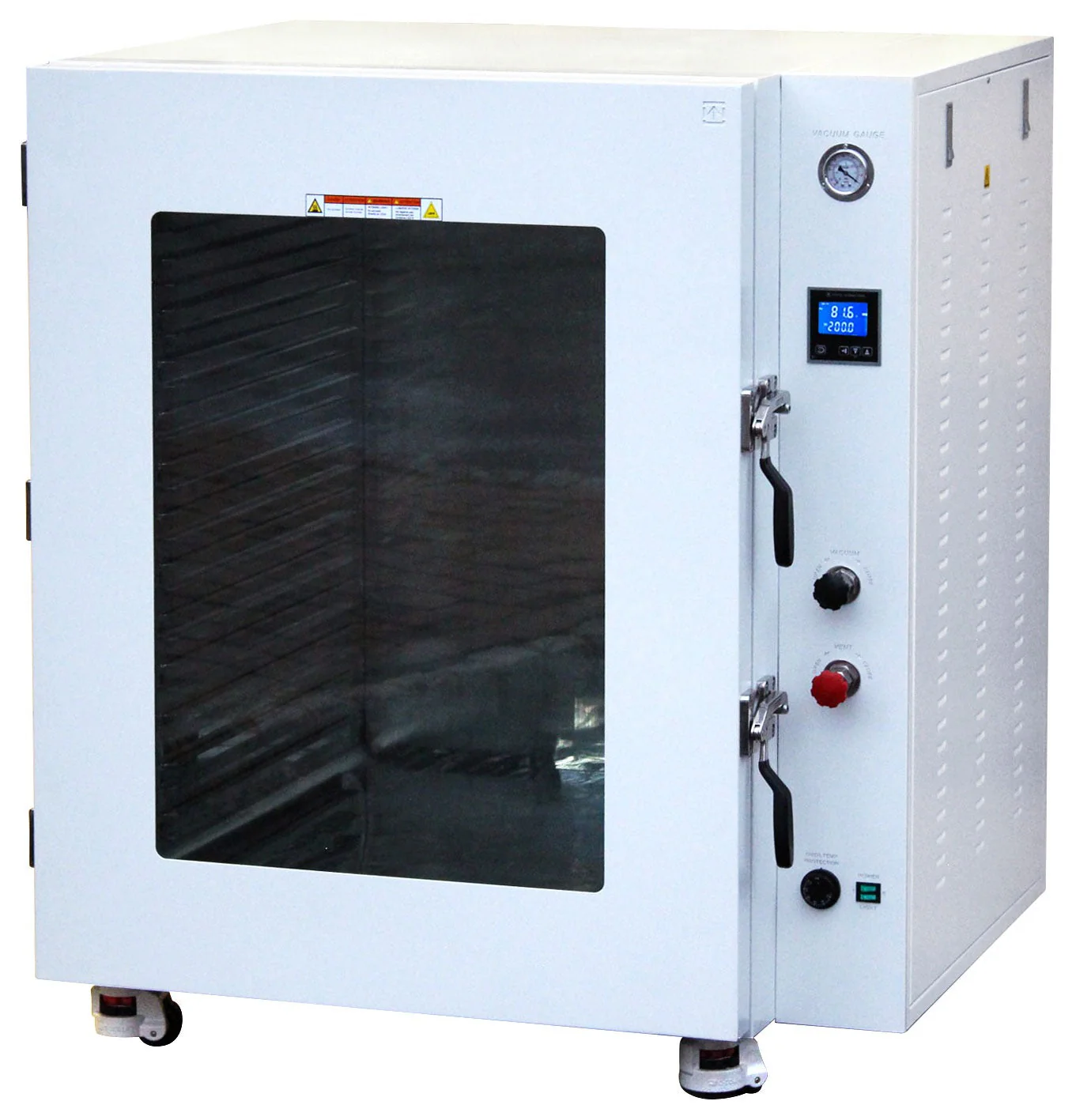

AT Series 250C UL Certified Vacuum Ovens

Overview

The new UL certified 3.2. cu ft vacuum oven comes standard with secondary over-temp protection dial, stainless steel internal tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. With our new internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.

The Ai 5.0, 7.5, and 16 cu ft vacuum ovens, come standard with secondary over-temp protection dial, stainless steel internal tubing, stainless steel vacuum & vent valve, oil-filled and vacuum gauge.

All AI vacuum ovens go through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving their warehouses.

Features:

• The 3.2 cu ft AT32x comes with 6 shelves (12 shelf capacity) in 110V 50/60Hz
• The 5 cu ft AT50x comes with 7 shelves (14 shelf capacity) in either 110V or 220V 50/60Hz
• The 7.5 cu ft AT75x comes with 9 shelves (18 shelf capacity) in 220V 50/60Hz

• The 3.2 cu ft AT32x comes with 13 shelves (26 shelf capacity) in 220V 50/60Hz
•  The new KF25 inlet filter keeps your oven clean at all times (included with oven purchase).
• All stainless steel internal tubing provides a higher ultimate vacuum, holds the vacuum 10 times longer, and requires minimum maintenance.
• Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
• All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
• 4th gen low proportional gain temperature controllers keep your oven temperature accurate
• Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
• A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
• Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
• Dual layer observation window with 3/4" (5/8” for the AT32x) tempered safety glass.
• Built-in swivel casters with leveling feet.
• Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
• For improved temperature ramping, run the auto-tune procedure as outlined in the manual.
• All ovens shipped from our New Jersey or Nevada location for quick delivery.
• 2-year warranty and lifetime US-based parts and service support.
• Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes.


Attention: Before initial use, run oven at 200C/400F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process. NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.

Key Attributes

Max Temperature	250°C
Max Capacity	3.2, 5, 7.5 or 16 cu ft
Air Movement	Vacuum
Electrical	110V or 220V
Warranty	2 year

Manufacturer Specifications

AT09	AT32x	AT50x	AT75x	AT160x
110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts	110V 50/60Hz, 1-Phase, 22.7A, 2,520 watts	110V or 220V +/-10% 50/60Hz 1-PH, 3,000 watts	220V +/-10% 50/60Hz 1-PH 21A, 4,600 watts	220V +/-10% 50/60Hz 1-PH 21A, 6,000 watts
5-sided heating (left 350W, right 350W, top 220W, bottom 480W, back 100W)	5-sided heating (left 530W, right 530W, top 530W, bottom 530W, back 200W x 2)	5-sided heating (left 600W, right 600W, top 600W, bottom 600W, back 200W x 3)	5-sided heating (left 900W, right 900W, top 900W, bottom 900W, back 250W x 4)	Layout: 5-sided heating (left 860W x 2, right 860W x 2, top 400W, bottom 840W, back 330W x 4)
Size: 12 x 12 x 11"	Size: 18 x 18 x 18"	Size: 19.75 x 21.5 x 19.75"	Size: 22 x 23.5 x 25"	Size: 25.6 x 30 x 35.5"
Material: Stainless steel	Material: Stainless steel	Material: Stainless steel	Material: Stainless steel	Material: Stainless steel
Capacity: 0.9 cubic foot	Capacity: 3.2 cubic feet	Capacity: 5.0 cubic feet	Capacity: 7.5 cubic feet	Capacity: 16 cubic feet
Controller:low proportional gain, microcomputer PID controlled with LCD display	Controller:low proportional gain, microcomputer PID controlled with LCD display	Controller:low proportional gain, microcomputer PID controlled with LCD display	Controller:low proportional gain, microcomputer PID controlled with LCD display	Controller:low proportional gain, microcomputer PID controlled with LCD display
Range: ambient to 250°C (or 480°F)	Range: ambient to 250°C (or 480°F)	Range: ambient to 250° (or 480°F)	Range: ambient to 250°C (480°F)	Range: ambient to 250°C (480°F)
Display units: Fahrenheit or Celsius	Display units: Fahrenheit or Celsius	Display units: Fahrenheit or Celsius	Display units: Fahrenheit or Celsius	Display units: Fahrenheit or Celsius
Uniformity: +/- 5% of setpoint	Uniformity: +/- 5% of setpoint	Uniformity: +/- 7% of setpoint	Uniformity: +/- 7% of setpoint	Uniformity: ± 7% of setpoint
Dwelling timer range: 1 to 9999 minutes	Dwelling timer range: 1 to 9999 minutes	Dwelling timer range: 1 to 9999 minutes	Dwelling timer range: 1 to 9999 minutes	Dwelling timer range: 1 to 9999 minutes
Warm-up time to 37.7°C: 40 minutes	Warm-up time to 37.7°C: 35 minutes	Warm-up time to 37.7°C: 45 minutes	Warm-up time to 37.7°C: 45 minutes	Ambient to 100°C: 40 mins
N/A	Warm-up time to 248.8°C: 60 minutes	Warm-up time to 248.8°C: 2 hours 15 minutes	Warm-up time to 248.8°C: 2 hours 15 minutes	Ambient to 150°C: 1 hour
N/A	N/A	N/A	N/A	Ambient to 200°C: 2 hours
N/A	N/A	N/A	N/A	Ambient to 250°C: 2.5 hours
Ultimate vacuum level: better than 500 microns/millitorrs	Ultimate vacuum level: better than 500 microns/millitorrs	Ultimate vacuum level: better than 500 microns/millitorrs	Ultimate vacuum level: better than 500 microns/millitorrs	Ultimate vacuum level: better than 500 microns/millitorrs
Mechanical gauge range: 0 to 30 inch mercury	Mechanical gauge range: 0 to 30 inch mercury	Mechanical gauge range: 0 to 30 inch mercury	Mechanical gauge range: 0 to 30 inch mercury	Mechanical gauge range: 0 to 30 inch mercury
Vacuum port: KF25 flange	Vacuum port: KF25 flange x 1	Vacuum port: KF25 flange	Vacuum port: KF25 flange x 1	Vacuum port: KF25 flange x 1
Vent port:KF25 flange	Vent port: KF25 flange x 1	Vent port:KF25 flange	Vent port:KF25 flange x 1	Vent port:KF25 flange x 1
Vacuum pump: Sold separately	Vacuum pump: Sold separately	Vacuum pump: Sold separately	Vacuum pump: Sold separately	Vacuum pump: Sold separately
Unit: 90 Lbs, shipping: 165 Lbs	Unit: 260 Lbs, shipping: 400 Lbs	Unit: 410 Lbs, shipping: 630 Lbs	Unit: 450 Lbs, shipping: 680 Lbs	Unit: 800 Lbs, shipping: 1200 Lbs
Unit: 23.4 x 17.25 x 19"	Unit: 30.5 x 24 x 29"	Unit: 32.25 x 28 x 30"	Unit: 37 x 35.5 x 38"	Unit: 44 x 38 x 51.5"
Shipping: 29 x 29 x 29	Shipping: 36 x 33 x 35"	Shipping: 38 x 37 x 38"	Shipping: 42 x 40 x 43"	Shipping: 50 x 45 x 60"
Shelf size: 11.5 x 11.25"	Shelf size: 17.5 x 17.25 x 2.25" (WxDxH)	Shelf size: 19.25 x 21 x 0.5" (WxDxH)	Shelf size: 21.75 x 23 x 0.5" (WxDxH)	Shelf size: 25 x 30" (WxDxH)
Material: aluminum	Material: aluminum	Material: aluminum	Material: aluminum	Material: aluminum
Style: pan-shape	Style: pan-shape	Style: pan-shape	Style: pan-shape	Style: pan-shape
Capacity: 4 shelves max.	Capacity: 12 shelves max.	Capacity: 14 shelves max.	Capacity: 18 shelves max.	Capacity: 26 shelves max.
Comes standard with oven purchase: 4 shelves	Comes standard with oven purchase: 6 shelves	Comes standard with oven purchase: 7 shelves	Comes standard with oven purchase: 9 shelves	Comes standard with oven purchase: 13 shelves
Total area with 8 shelves: 129.4 x 8 = 7 sq ft or 1035 inch2	Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2	Total area with 14 shelves: 39.3 sq ft or 5660 sq inch	Total area with 18 shelves: 61.8 sq ft or 8901 sq inch	Total area with 26 shelves: 89 sq ft or 12,857 sq inch
Silicone or Viton	Silicone or Viton	Silicone or Viton	Silicone or Viton	Silicone or Viton
1/2" tempered safety glass	1/2" tempered safety glass	1/2" tempered safety glass	1/2" tempered safety glass	1/2" tempered safety glass
Built-in circuit breaker	Built-in circuit breaker	Built-in circuit breaker	Built-in circuit breaker	Built-in circuit breaker
Overheat shutoff protection	Overheat shutoff protection	Overheat shutoff protection	Overheat shutoff protection	Overheat shutoff protection
Secondary over-temp protection dial	Secondary over-temp protection dial	Secondary over-temp protection dial	Secondary over-temp protection dial	Secondary over-temp protection dial
White LED	White LED	White LED (pre-installed)	White LED (pre-installed)	White LED (pre-installed)
UL(E482564), CE	UL(E482564), CE	ETL certified to UL and CSA standards	ETL tested to UL and CSA standards	ETL tested to UL and CSA standards, ETA 3/2021
2 years	2 years	2 years	2 years	2 years
