Original: $5,590.00
-70%$5,590.00
$1,677.00The Story
Overview

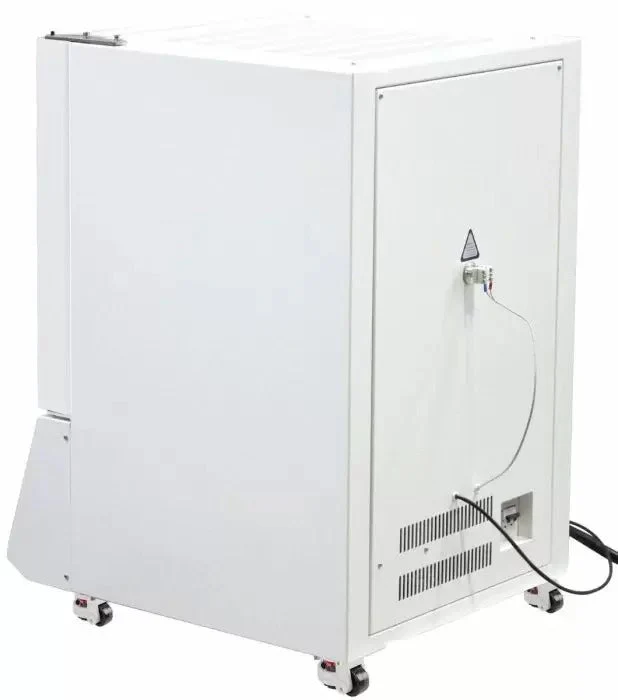

CF1200 series muffle furnaces feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high quality alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Eurotherm (UK) or Shimaden (Japan) digital controller with built-in digital communication port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Features:
- Controller Option
- 3204 can only do 8 segments programmer (ramp and dwelling)
- 3504 can do 50 segments programmer (ramp and dwelling)
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type K thermocouple.
- ETL and CE certified, standard
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Key Attributes
| Max Temperature | 1200°C |
| Max Capacity | 0.44 or 1.33 cu ft |
| Air Movement | N/A |
| Electrical | 208-240VAC, 50/60Hz, single phase |
| Warranty | 1 year |
Manufacturer Specifications
Size comparison
| Chamber size (DxWxH) | 12x8x8" | 16x12x12" |
| Usable chamber space (DxWxH) | 10x7x7" | 14x11x11" |
| Chamber capacity (cu ft) | 0.44 | 1.33 |
| Maximum output | 4 kW | 9 kW |
| Furnace dimensions (LxWxH) | 22x25x34" | 26x29x39" |
| Shipping dimensions (LxWxH) | 28x28x36" | 34x37x46" |
| Unit/shipping weight (Lb) | 530/620 | 600/700 |
| Model | CF1200 |
| Electrical requirements | 208-240VAC, 50/60Hz, single phase |
| Min. working temperature | Ambient |
| Max. working temperature | 1200°C (2192°F) |
| Max. constant working temperature | 1100°C (2012°F) |
| Refractory lining |
Mitsubishi (Japan) high quality 1500 grade fiber alumina |
| Heating element type |
Kanthal (Sweden) A1 2.0 resistance coil wire |
| Thermocouple type | K |
| Temperature controller |
Eurotherm 3204 Controller (UK) 5 Programs – Each program has 8 segments |
| Max heating rate | < 15°C (59°F) / min |
| Temperature accuracy | +/- 1°C |
| Certification |
ETL tested to UL and CSA standards, CE |
| Warranty |
1 year |
