Overview

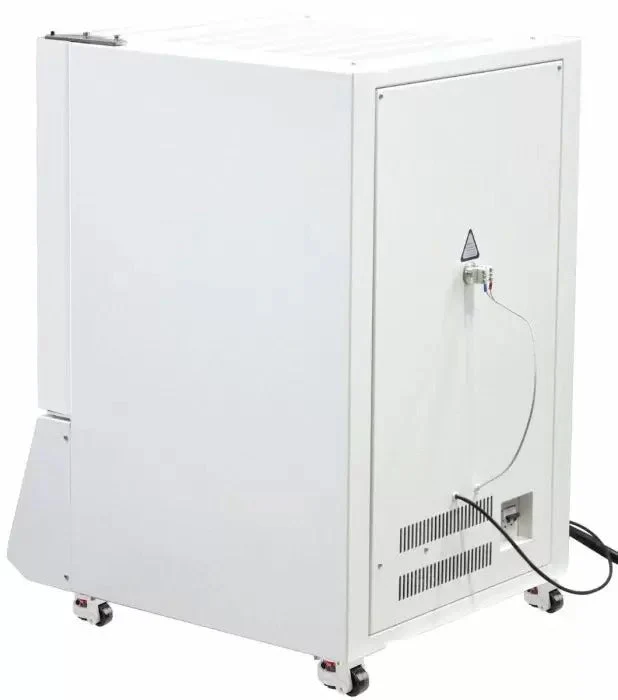

CF1750 series muffle furnaces feature a chamber with Mitsubishi (Japan) high quality grade 1900 alumina fiber insulation and molybdenum silicide (MoSi2) heating elements. A dual-wall steel housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Eurotherm (UK) digital controller with built-in communication port, allowing the user to connect to a PC for remote control and monitoring of the furnace.
Features:
- Controller Option:
- 3204 can only do 8 segments programmer (ramp and dwelling)
- 3504 can do 50 segments programmer (ramp and dwelling)
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type B thermocouple.
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Key Attributes
| Max Temperature | 1750°C |
| Max Capacity | 0.15 cu ft |
| Air Movement | N/A |
| Electrical | 208-240VAC 50/60Hz single phase |
| Warranty | 1 year |
Manufacturer Specifications
| Chamber size | 12 x 8 x 8" | 16 x 12 x 12" |
| Usable chamber space | 10 x 6 x 6" | 14 x 10 x 10" |
| Installed heating element | 8 | 10 |
| Maximum Output | 8 KW | 13 KW |
| Furnace dimensions (DxWxH) | 31 x 26 x 50" | 34 x 29 x 60" |
| Shipping dimensions (DxWxH) | 37 x 31 x 55" | 40 x 36 x 70" |
| Unit/Shipping weight (lb) | 620/720 | 880/1050 |
| Model | CF1750 |
| Electrical requirements | 208-240v AC, 50/60Hz, single phase |
| Chamber dimensions (DxWxH) | 7 x 6 x 6" (0.15 cubic foot) |
| Chamber usable space (DxWxH) | 5 x 5 x 5.5" |
| Min. working temperature | 300°C (572°F) |
| Max. working temperature | 1750°C |
| Refractory lining |
Mitsubishi (Japan) high quality grade 1900 fiber alumina |
| Heating element | Molybdenum Silicide (MoSi2), 6 installed |
| Thermocouple type | B or PtRh40-PtRh20 (optional) |
| Temperature controller |
Eurotherm (UK) |
| Max heating rate | 1200°C and below: <30°C/min, 1200°C+: < 15°C/min |
| Temperature accuracy | +/- 1°C (+/- 1.8°F) |
| Unit dimensions |
24 x 22 x 34" |
| Shipping dimensions |
30 x 29 x 42" |
| Shipping weight |
300 Lb |
| Compliance |
ETL tested to UL and CSA standards (optional), CE (Standard) |
| Warranty |
1 Year |
