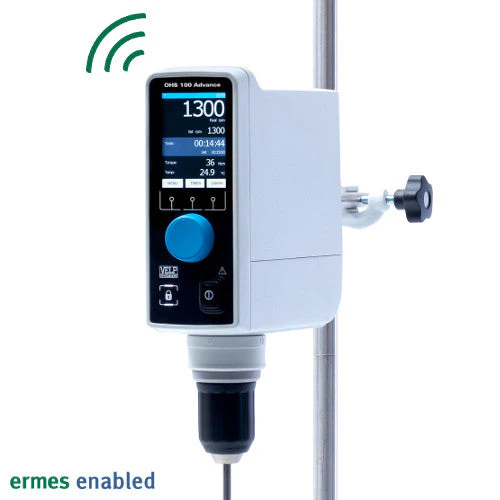

VELP OHS Advance Series Overhead Stirrers

Overview

Cloud enabled overhead stirrers with 3.5" TFT display, method setting, precise torque measurement, temperature monitoring, vibration sensor, timer, Wi-Fi connection, and Pt 100 probe included to address the most demanding applications with maximum reproducibility and safety. Encompass the latest technology such as: Brushless motor, IP 54 Protection, and SmartChuck™ to change the shaft easily without any tool.

 Features:

• Safe Operations
• Extremely resistant sealed case
• IP 54 Protection class is a guarantee of durability also when working in aggressive environment
• Full protection in case of overload, overtemperature and over current
• Lock key to prevent unintentional modification of the settings
• Easy Knob to navigate the menu and to activate the stirring
• OHS 60 Advance is designed for the longest lifespan and guaranteed by 3 years warranty
• Best-in-Class-Performance
• 3.5” TFT display encompassing a great set of information always at a glance
• Brushless motor ensures stable torque of 60 Ncm through the whole speed range
• Electronic speed control from 30 to 2000 rpm
• Maximum volume of 40 liters
• Maximum viscosity of 50.000 mPa
• SpeedServoTM torque compensation technology
• Silent motor even at the maximum speed
• State-of-the-Art Features
• Set your preferred methods choosing form several options
• The new SmartChuckTM makes easy and convenient the shaft changing without any tool
• Vibration Sensor with different levels of sensitivity automatically stopping operations
• Integrated timer for unattended operation with automatic switch off
• Precise Torque measurement on display for real-time information on viscosity change with a resolution of 1 Ncm
• Temperature measurement with Pt100 temperature probe
• USB interface for installing Software updates
• Cloud-Enabled Instrument
• Effortlessly connect to the cloud your OHS Advance to the cloud via WiFi in complete safety
• Real time monitoring and notification via VELP Ermes Cloud Platform
• Immediate Software Updates (OTA)
• Access to your data via PC, smartphone and tablet
• Create and share reports, track trend and get useful insights

Key Attributes

Maximum volume (L):	25 (water)
Minimum Volume (L):	N/A
Speed max (rpm):	OHS 60: 2000 rpm OHS 100: 1300 rpm OHS 200: 400 rpm, 2000 rpm
Speed min (rpm):	OHS 60: 30 rpm  OHS 100: 30 rpm OHS 200: 6 rpm, 30 rpm
Max temperature (◦C):	N/A
Plate:	N/A
Plate material:	N/A
Torque max (Ncm):	OHS 60: 60  OHS 100: 100 OHS 200: 200
Controls:	Digital
Timer:	Yes
Programmable:	Yes
Reverse rotation:	No
Warranty (years):	3
Weight (lbs):	OHS 60 & OHS 100: 9.04 lbs OHS 200: 10.14 lbs

 Manufacturer Specifications

Model	OHS 60	OHS 100	OHS 200
Display	3,5" Graphic TFT Display	3,5" Graphic TFT Display	3,5" Graphic TFT Display
User Interface	Digital	Digital	Digital
Motor	Brushless DC	Brushless DC	Brushless DC
Stirring Volume (H2O)	Up to 40 L	Up to 100 L	Up to 100 L
Speed Gears	1	1	2
Max Torque	60 Ncm	100 Ncm	200 Ncm
Stirring Speed Range	30-2000 rpm	30-1300 rpm	6-400 rpm, 30-2000 rpm
Speed Accuracy	1 rpm	1 rpm	1 rpm
Speed Control	Digital	Digital	Digital
Max Viscosity	50.000 mPa*s	70.000 mPa*s	100.000 mPa*s
Torque Compensation	SpeedServo™	SpeedServo™	SpeedServo™
Chuck Range	Ø from 1 to 13 mm	Ø from 1 to 13 mm	Ø from 1 to 13 mm
Shaft diamater Pass-Through	up to 8.5mm	up to 8.5mm	up to 8.5mm
Safety Vibration Sensor	Yes	Yes	Yes
Timer	Yes	Yes	Yes
Method Setting	Yes	Yes	Yes
Lock of the instrument	Yes	Yes	Yes
External Probe Connection	Pt100	Pt100	Pt100
Temperature Measuring Range	-10 to 350 °C	-10 to 350 °C	-10 to 350 °C
Temperature Resolution	0.1 °C	0.1 °C	0.1 °C
Interfaces	USB / WiFi	USB / WiFi	USB / WiFi
Dimensions (WxHxD) mm	90x315x235 mm	90x315x235 mm	90x315x235 mm
Dimensions (WxHxD) in	(3.5x12.4x9.3 in)	(3.5x12.4x9.3 in)	(3.5x12.4x9.3 in)
Weight kg	4,6 kg	4,6 kg	4,6 kg
Weight lbs	(10,1 lb)	(10,1 lb)	(10,1 lb)
Protection Class DIN EN 60529	IP 54	IP 54	IP 54
