The Story
Overview

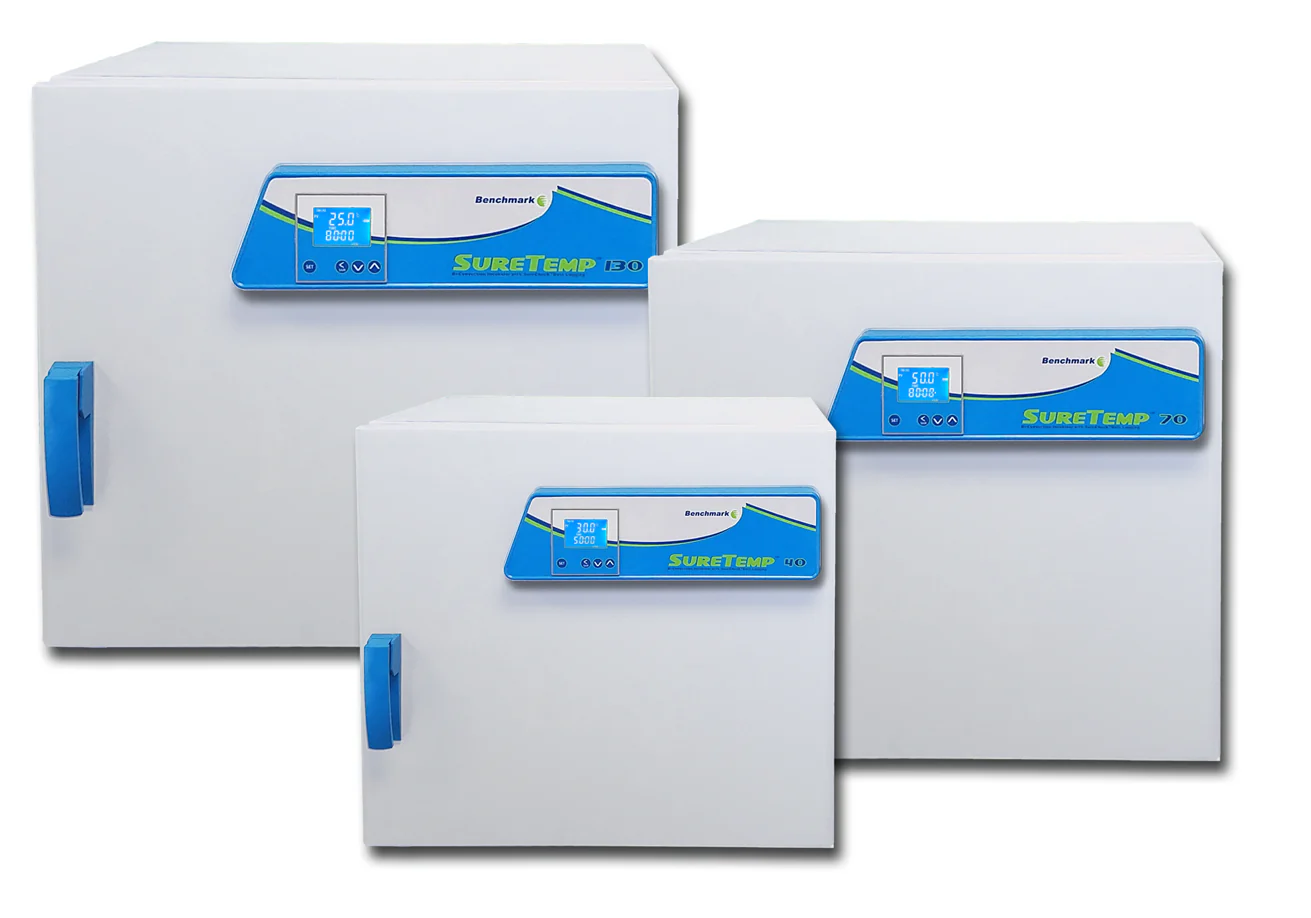

The new SureTemp™ Incubator series provides the highest level of temperature control with uniformity and stability levels that are unmatched by competitive models in the same class.
Each incubator is equipped with the SureCheck™ data logging system for verification of chamber temperature. The SureCheck system records temperature data points as often as every 60 seconds and stores this information on a flash drive. The data can then be viewed and saved using the included the SureCheck software. The recorded data can also be used to plot temperature points on a graph or exported to a spread sheet program for verification or storage/record keeping.

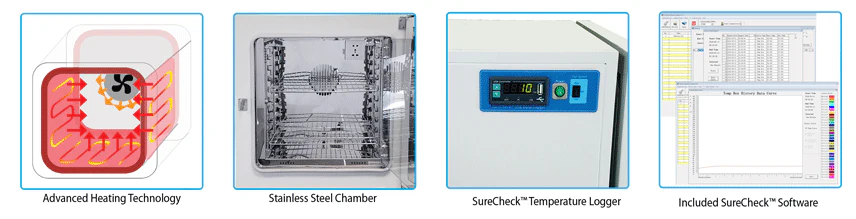

Unlike other laboratory incubators, the SureTemp series offers "Dual-Convection" technology, allowing users to choose between mechanical convection mode* (for exceptional temperature uniformity) or gravity convection mode* (for longer incubations where airborn contamination or drying of samples may be an issue). The heating elements are strategically located on multiple sides of the chamber and contents can be viewed with the separate inner glass door without disrupting the temperature environment.
Features:
- Precision temperature control up to 75°C
- Dual-Convection technology, excellent uniformity and recovery
- Includes SureCheck™ temperature logger and software
- Stainless steel chamber with internal power outlet
* Mechanical Convection: Incorporates optimally positioned heating elements in conjunction with an internal chamber fan to control the internal temperature.
Gravity Convection: Eliminates any airflow from the chamber, relying solely on the heating elements and gravity to control the internal temperature.
Also available with an extra stainless steel shelf
Key Attributes
| Cu ft. | 1.4, 2.3, 4.6 |
| Max Temp | 75°C |
| Min Temp | Ambient +5°C |
| Temp Uniformity | ± 0.25°C |
| Interior Outlets | Yes |
| Alarms | No |
| Datalogging Capable | Yes |
| Warranty (years) | 1 |
| Site | Benchtop |
| Weight (lbs) |
95, 137, 154 |
Manufacturer Specifications
|
Temp. Range:
|
Ambient +5 to 75°C |
|---|---|
|
Temp. Accuracy:
|
± 0.25°C* |
|
Temp. Uniformity:
|
± 0.25°C* |
|
Temp. Increment:
|
0.1°C |
|
Temp. Stability:
|
± 0.1°C |
|
Timer:
|
1 min. to 99 hours 59 min. (or continuous) |
|
Chamber Material:
|
Stainless Steel (316) |
|
Electrical:
|
120V or 230V, 50-60Hz |
|
Power Consumption:
|
40L: 420W / 70L: 520W / 130L: 670W |
H2505-40, 40 Liter Model
|
Interior Dimensions:
|
13.7 x 13.7 x 13.7 in. / 35 x 35 x 35 cm |
|---|---|
|
Exterior Dimensions:
|
22.4 x 23.3 x 22.8 in. / 57 x 59.2 x 58 cm |
|
Weight:
|
42 kg / 95 lbs |
H2505-70, 70 Liter Model
|
Interior Dimensions:
|
17.7 x 13.7 x 17.7 in. / 45 x 35 x 45 cm |
|---|---|
|
Exterior Dimensions:
|
26.4 x 23.3 x 26.8 in. / 67 x 59.2 x 68 cm |
|
Weight:
|
62 kg / 136.5 lbs |
H2505-130, 130 Liter Model
|
Interior Dimensions:
|
21.7 x 17.7 x 21.7 in. / 55 x 45 x 55 cm |
|---|---|
|
Exterior Dimensions:
|
30.3 x 27.2 x 30.7 in. / 77 x 69.2 x 78 cm |
|
Weight:
|
70kg / 154.4 lbs |
FAQ
Do the SureTemp Digital Incubators have cable / probe ports?
No, there are no port holes on the SureTemp incubators.
