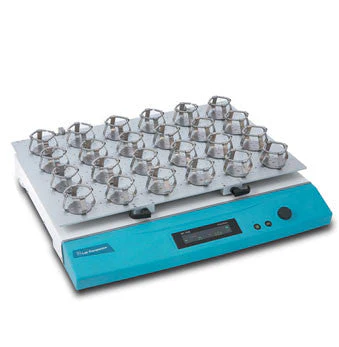

Jeio Tech SKC Series Advanced Shakers

Overview

Innovative triple-cam shaking mechanism with offering reliable performance across a wide speed range. Specially designed to carry out heavy-duty and trouble-free operations continuously.

Available with or without a small or large universal platform (platform is required for use with accessories). Dual Platforms are also available for the 7000 models. Additional accessories available below. See Universal Platforms for the maximum configuration of accessories mountable on each platform.

Performance

• Microprocessor PID control maintaining constant speed
• Competitive high shaking speed up to 500 rpm.
• Orbital shaking motion in various diameter.
• 19mm for SKC-6075/7075
• 25mm for SKC-6100/7100
• 50mm for SKC-6200/7200
• Wide speed range even with heavy workload.
• Ideal DD(Direct Drive) Brushless Motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation.
• Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
• Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
• Pleasant test environment by the smooth acceleration and deceleration control.
• Smooth start and smooth stop function prevent chemical spills from flasks or test tubes.
• Exceptional low-profile design (only 12cm from bottom to platform) minimizes vibration or sliding caused by the high speed shaking motion.

Convenience

• User friendly control panel.
• Lab Companion’s unique VFD-bright, clear, easy to read.
• Durable membrane touch switch and control knob.
• Easy-exchangeable slide type universal platform reduces physical fatigue when handling the heavy load samples. (optional)
• Repetitive task can be easily performed as the platform stops where it starts.
• Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
• Variety of accessories are available to meet application demands.

Safety

• Shaking speed deviation alarm.
• Over-current protection.

Key Attributes

Type	Standard Benchtop
Incubation	No
Refrigeration	No
Stacking	No
Platform Area (ft^2)	3.25 to 4.95
Max Load (lb)	n/a
RPM - Max	500
RPM - Min	30
Orbit Diameter (mm)	19, 25, 50
Platform Dimensions	22.8×20.5, 26×20.5, 29.7×20.5, 34.8×20.5
Warranty (years)	1 (2 years after submission of warranty registration card)
Weight (lb)	143.3, 165.4
Width (in)	22.9, 29.7
Depth (in)	24.3, 26.1
Height (in)	4.8



Manufacturer Specifications

Model			SKC-6075	SKC-6100	SKC-6200	SKC-7075	SKC-7100	SKC-7200
Control system			PID feedback control
Display			VFD
Shaking system	Motion type		Orbital
	Amplitude size(mm / inch, dia)		19 / 0.75	25 / 1	50 / 2	19 / 0.75	25 / 1	50 / 2
	Speed range2)(rpm)		30 to 500
	Accuracy at 100 rpm		±1
Dimension	Platform(W×D) (mm / inch)	Small	580×520 / 22.8×20.5			755×520 / 29.7×20.5
		Large	660×520 / 26×20.5			885×520 / 34.8×20.5
	Body1)(W×D×H) (mm / inch)		582.8×618 ×122.2			754.8×662×122.2
			22.9×24.3×4.8			29.7×26.1×4.8
	Net weight(kg / Ibs)		65 / 143.3			75 / 165.4
Electric requirements(230V, 50 / 60Hz)			0.4A
Cat. No.			AA30 105K	AAH30 115K	AAH3 0125K	AAH30 205K	AAH30 215K	AAH30 225K
Electric requirements(120V, 60Hz)			0.8A
Cat. No.			AAH30 106U	AAH30 116U	AAH30 126U	AAH30 206U	AAH30 216U	AAH30 226U
