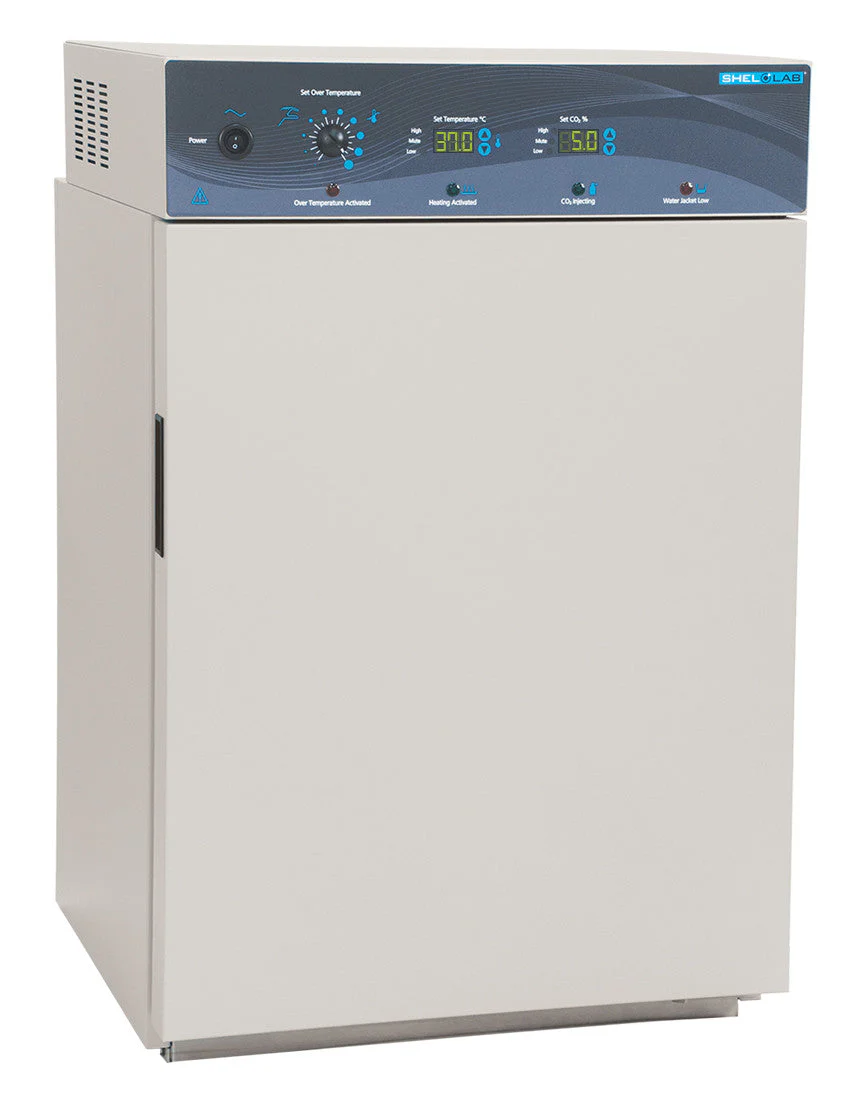

SHEL LAB SCO Water Jacketed Economy CO2 Incubators

Overview

The SHEL LAB economy incubator was designed and manufactured to accommodate tight budgets, while maintaining the fundamental needs of quality and precision. These units have PID microprocessor controllers, a heated outer door and a tempered-glass inner door. They provide exceptional temperature uniformity, while minimizing cold spots that lead to condensation and ultimately, contamination. Although they do not have a humidity display, the extremely stable temperature environment maintains constant humidity through evaporation at up to 95%. The audible/visual alarms for temperature and CO2 respond to out-of-tolerance conditions. They offer an independent overtemperature safety control to protect samples from overheating, and an optional CO2 tank switch/alarm to prevent prematurely exhausting the gas supply.

Features:

• Independent Over Temperature Thermostat
• Over Temperature & CO2 Alarm
• Inner Glass Viewing Door
• Temperature Uniformity +/- 0.2ºC at 37ºC
• Temperature Range Ambient + 8°C to 60°C
• CO2 Range 0 - 20%
• CO2 Recovery Rate < 5 Minutes
• Relative Humidity Up to 95%
• Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
• Unique water jacket design provides excellent temperature uniformity of +/-0.2°C at 37°C
• Data logging capabilities
• Designed to minimize contamination; includes
• Durable stainless steel chamber for easy cleaning
• Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
• Exclusive heated copper CO2 inlet not only promotes temperature uniformity but also prevents moisture from being introduced into the chamber
• Copper shelving option
• Autoclavable shelving system
• Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor

Key Attributes

Cu ft.	6
Max Temp	60°C
Min Temp	Ambient + 8°C
Temp Uniformity	± 0.2°C
Interior Outlets	No
Alarms	Yes
Datalogging Capable	Yes
Warranty (years)	5
Site	Floor
Weight (lbs)	260



Manufacturer Specifications

Water Jacket CO2 Incubators	Details	SCO6WE	SCO12WE
		Floor Model	Dual/Stacked Chambers
Exterior Dimensions (wxdxh)	Inches	26.0 x 26.3 x 40.3	26.0 x 25.8 x 51.0
Chamber Dimensions (wxdxh)	Inches	20.2 x 19.7 x 25.2	20.5 x 20.0 x 25.5 each
Incubator Chamber Capacity	cu ft	6	12 (6 each)
	L	165	342
Number of Shelves	Included	3	3 each chamber
	Maximum	16	16

FAQ

Aside from the difference in size, what are the differences in features between the SCO "Economy" CO2 Incubator (SCO6WE) and the base model SCO CO2 Incubators (SCO2W and SCO5W)?

There are a few key differences, as well as a number of feature differences between the SCO5W and SCO2W:

1. The SCO5W and SCO6WE are stackable, whereas the SCO2W is not.
2. The SCO5W has a relative humidity display; the SCO6WE and SCO2W do not.
3. The SCO5W and SCO2W have copper-caged HEPA filters, the SCO6WE does not.
