POLYTRON PT Stand Dispersers

Overview

POLYTRON PT 3100D Stand Disperser - Stand-disperser (High-End Line), flexible-use disperser with PC software, RS-232 / USB connection cable. Applications with the highest demands for reproducibility and scaling up can be efficiently performed with this device. The fully digitized control and regulation system is very easy to operate. The illuminated LCD display shows all the parameters, which can be changed with the membrane keypad. 0.1-10,00 mL

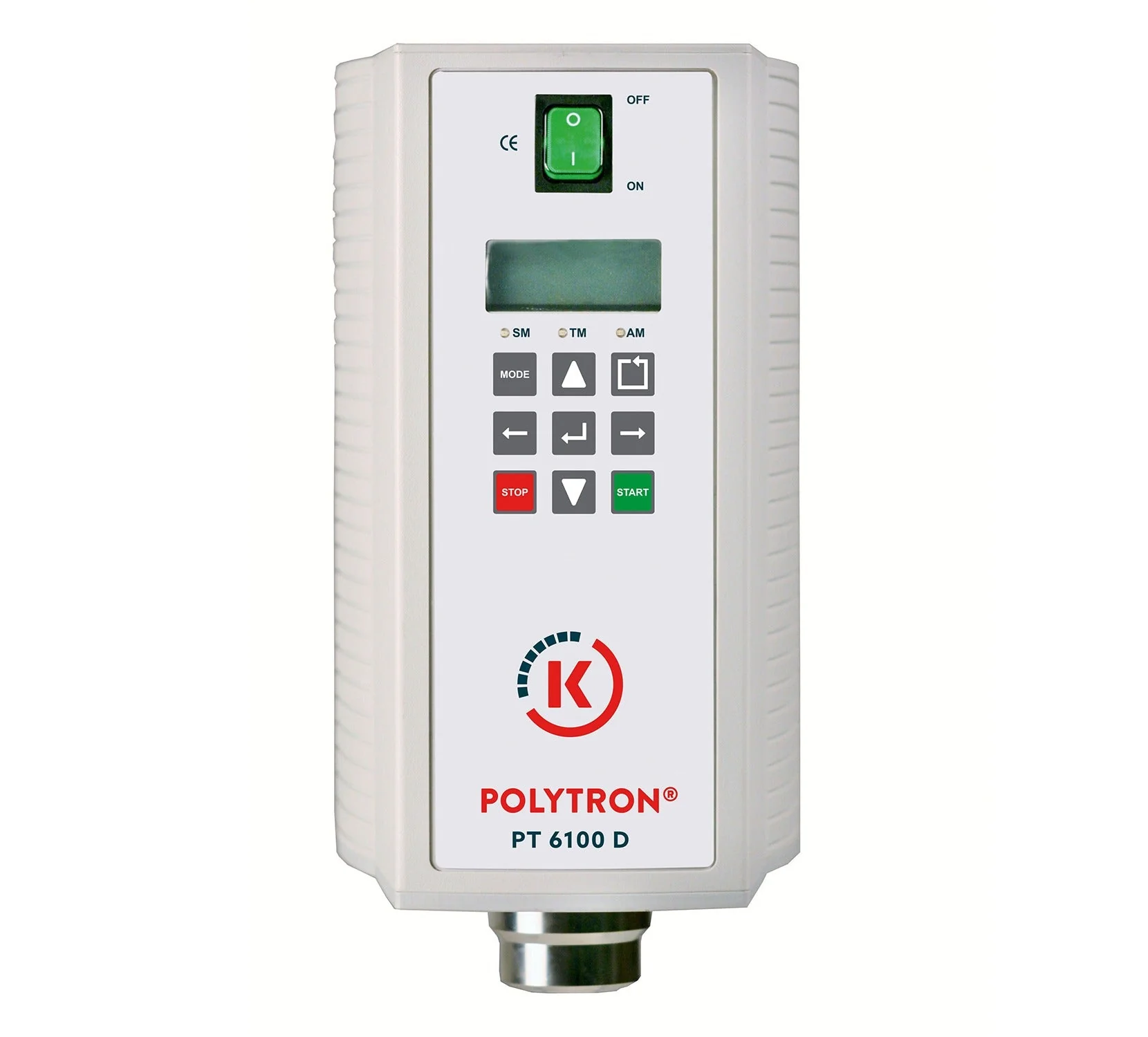

POLYTRON PT 6100D Stand Disperser - Stand-disperser (High-End Line), powerful, flexibile-use disperser with PC software, RS-232 / USB connection cable. This instrument meets the highest standards of reproducibility and scaling up and the reserve ­capacities of this motor enable the handling of larger quantities without any decline in quality. The fully ­digitized control and regulation system is very easy to operate. The illuminated LCD displays all required parameters which can be adjusted if necessary, with the membrane keypad. 0.1-30,000 mL

Features:

• Easy operation with an on–off switch and membrane keypad
• Digital speed control for long equipment life
• Protection against overheating, overload and blocking
• Speed stability even with changes in viscosity
• Easy to adjust motor height (depending on the stand)
• Aggregates quickly switched with Click & Go coupling
• Easy aggregate clean–up with EasyClean Design
• Smallest sizes of particles / droplets: because precise ­analysis require homogeneous samples
• Efficient sample preparation: because fast dispersion saves time
• Standard or custom-made aggregates: perfected for and in cooperation with the users
• Cleaning and disassembly: EasyClean Design makes it very simple
• Quick coupling of the aggregates: by using Click & Go
• Best materials available: because without them, we could not call it Swiss Made
• Durability is a Swiss virtue

The PT 3100D Stand Disperser is also available as a bundle package that includes: Polytron PT 3100D (100-120V), Stand, Drive Holder, Vessel Holder & Safety Positioning Ring.

Dispersing aggregates (AKA probes) sold separately.

Key Attributes

Homogenizer Type	Rotor-Stator
Sample Throughput	1 sample
Sample Volume (min)	0.1 mL
Sample Volume (max)	10,000 mL (PT3100D), 30,000 mL (PT6100D)
Usage / Placement	Benchtop
Cooling	No
Warranty	2 years
Noise Level	66-73 dB(A)  (PT3100D), 82 dB(A)  (PT6100D)
Weight	8.6 lb (PT3100D), 16.31 lb (PT6100D)
Width	5.11" (PT3100D), 6.46" (PT6100D)
Depth	9.45" (PT3100D), 9.25" (PT6100D)
Height	10.43" (PT3100D), 12.32" (PT6100D)

Manufacturer Specifications

Model Unit	3100D	6100D
Min. Volume (ml)	0.1	0.1
Max. Volume (ml)	10000	30000
Power (W)	1200	1700
Tip speed	Up to max. 32 m/s	Up to max. 32 m/s
Applicable aggregates	ø 5 mm to 36 mm	ø 5 mm to 65 mm
Speed range	500 – 30 000 rpm	1 000 – 26 500 rpm
Drive coupling	Aggregates with F coupling	Aggregates with F coupling
Noise level (drive without aggregate)	66 dB(A) at 25 000 rpm / 73 dB(A) at 30 000 rpm	82 dB(A) at 26 500 rpm
Motor	Universal with carbon brushes	Universal with carbon brushes
Connection voltage	120 V	120 V
Relative humidity (max.)	80 % during storage & operation	80 % during storage & operation
Operating temperature	0 – 40 °C	0 – 40 °C
PC Interfaces	RS-232 (D SUB 9) / USB socket B	RS-232 (D SUB 9) / USB socket B
Protection class acc. to DIN	IP 20	IP 20
Dimensions (LxWxH)	240 x 130 x 265 mm	Drive: 235 x 164 x 313 mm
Weight	Drive: 3.9 kg	Drive: 7.4 kg
EMC standards	IEC / EN 61000-6-2 / EN 61000-6-3	IEC / EN 61000-6-2 / EN 61000-6-3
Safety standard	IEC / EN 61010-2-51	IEC / EN 61010-2-51
