POLYTRON PT 1300D Hand Disperser

Overview

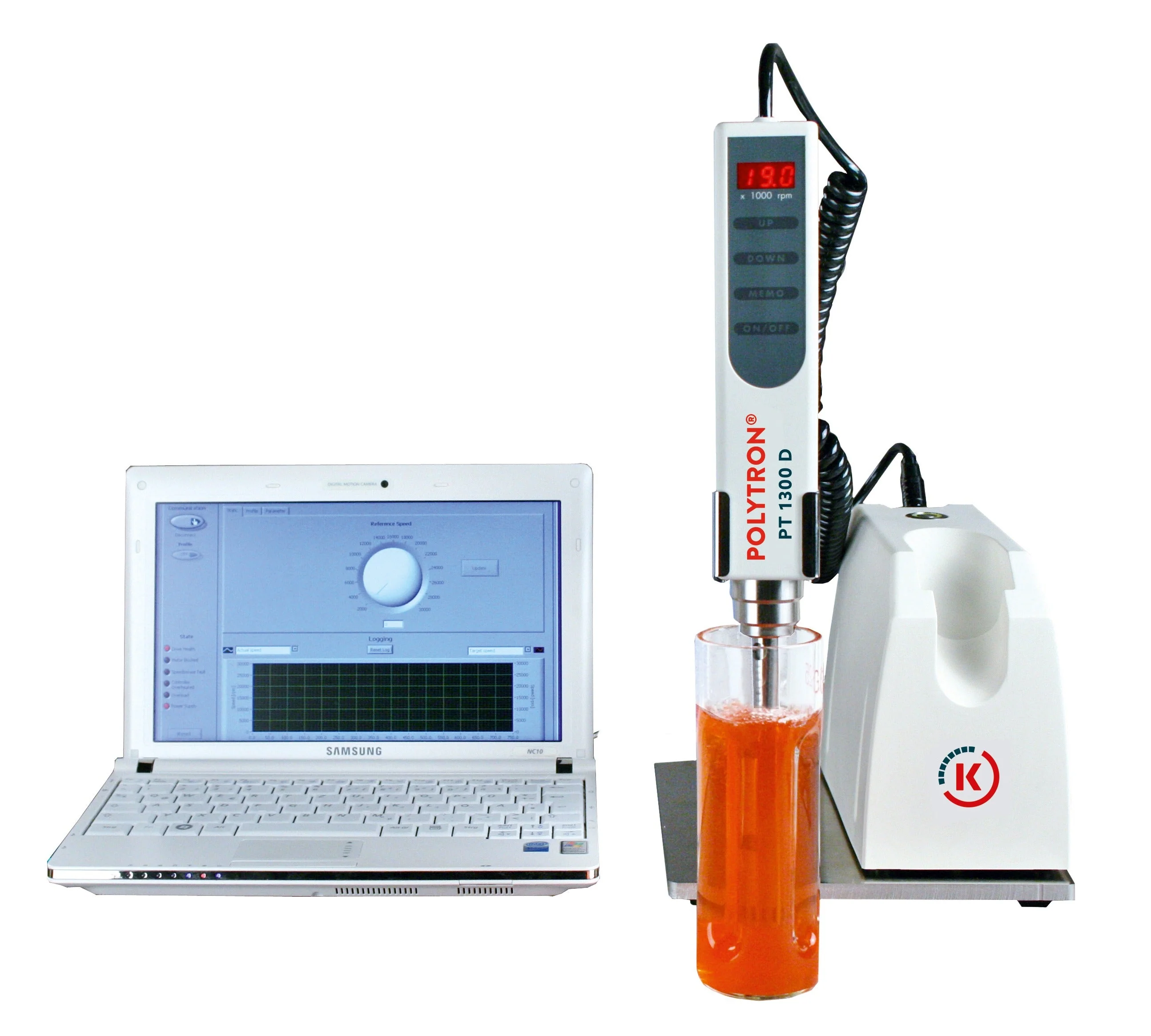

High-end handheld disperser, state-of-the-art digital technology with PC software, USB connection cable and aggregate bracket. Research, development or quality control, all work towards a common goal: Sample analysis. The basic requirements for an impending sample preparation is the efficient disruption of systems, reproducibility of the results, and simple procedures.

Features:

• ON & OFF and speed control by simply pressing a button
• The drive rests comfortably in the palm of your hand
• The membrane keyboard is easy to operate and to clean
• Changing the aggregate is easy with the Click & Go quick release
• The EasyClean Design makes cleaning the aggregates simple
• Low noise level
• Intelligent speed controls ensure a long service life
• Stable motor speeds even during changes of viscosity
• Using the MEMO button lets you save engine speeds and provides you with the option to recall and reproduce the setting later in order to process larger numbers of samples.
• The supplied PC software offers a remote control option or the recording of specific application parameters.
• Smallest sizes of particles / droplets because precise ­analysis require homogeneous samples
• Efficient sample preparation because fast dispersion saves time
• Standard or custom-made aggregates perfected for and in cooperation with the users
• Cleaning and disassembly EasyClean Design makes it very simple
• Quick coupling of the aggregates by using Click & Go
• Best materials available because without them, we could not call it Swiss Made
• Durability is a Swiss virtue

Key Attributes

Homogenizer Type	Rotor-Stator
Sample Throughput	1 sample
Sample Volume (min)	0.05 mL
Sample Volume (max)	250 mL
Usage / Placement	Handheld / Benchtop
Cooling	No
Warranty	2 years
Noise Level	65 dB(A)
Weight	1.37 lb
Width	1.77"
Depth	1.57"
Height	8.26"

Manufacturer Specifications

Min. Volume (ml)	0.05
Max. Volume (ml)	250
Power (W)	100
Tip speed	Up to max. 14 m/s / Up to max. 21 m/s (X-Aggregate)
Applicable aggregates	ø 3, 5, 7, 12 mm / ø 20 mm X-Design
Speed range	2000 – 30 000 rpm
Drive coupling	Aggregates with E coupling
Noise level (drive without aggregate)	65 dB(A) at 30 000 rpm
Motor	Brushless, maintenance-free
Connection voltage	120 V
Relative humidity (max.)	80 % during storage / 80 % during operation
Operating temperature	0 – 40 °C
PC Interfaces	RS-232 (D SUB 9) / USB socket B
Protection class acc. to DIN	IP 20
Dimensions (LxWxH)	Drive: 210 x 40 x 45 mm / Control module: 230 x 205 x 95 mm
Weight	Drive: 620 g / Control module: 1040 g
EMC standards	IEC / EN 61000-6-2 / EN 61000-6-3
