POLYTRON Ecoline PT Stand Dispersers

Overview

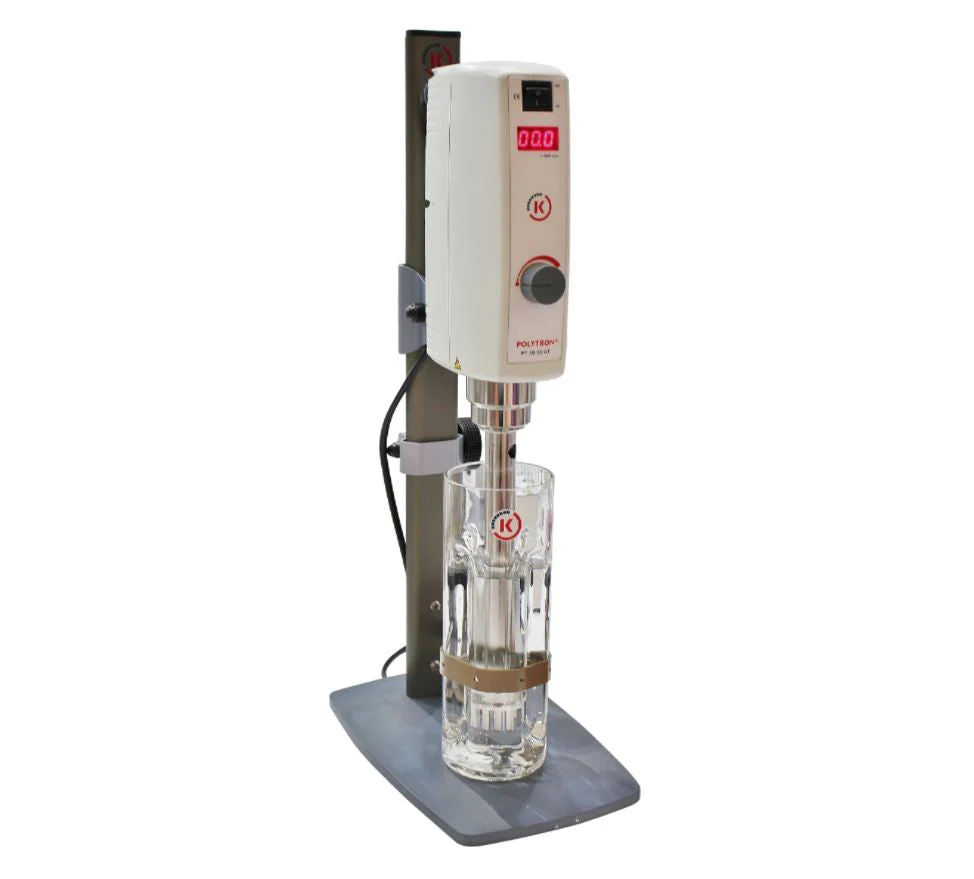

POLYTRON Ecoline PT 2500E Stand Disperser - The sleek, sound-insulated casing conceals enough power to safely and quickly handle a variety of applications. Our broad range of dispersing aggregates cover the range from preparing samples to testing product formulas and recipes. 0.05-2,500 mL

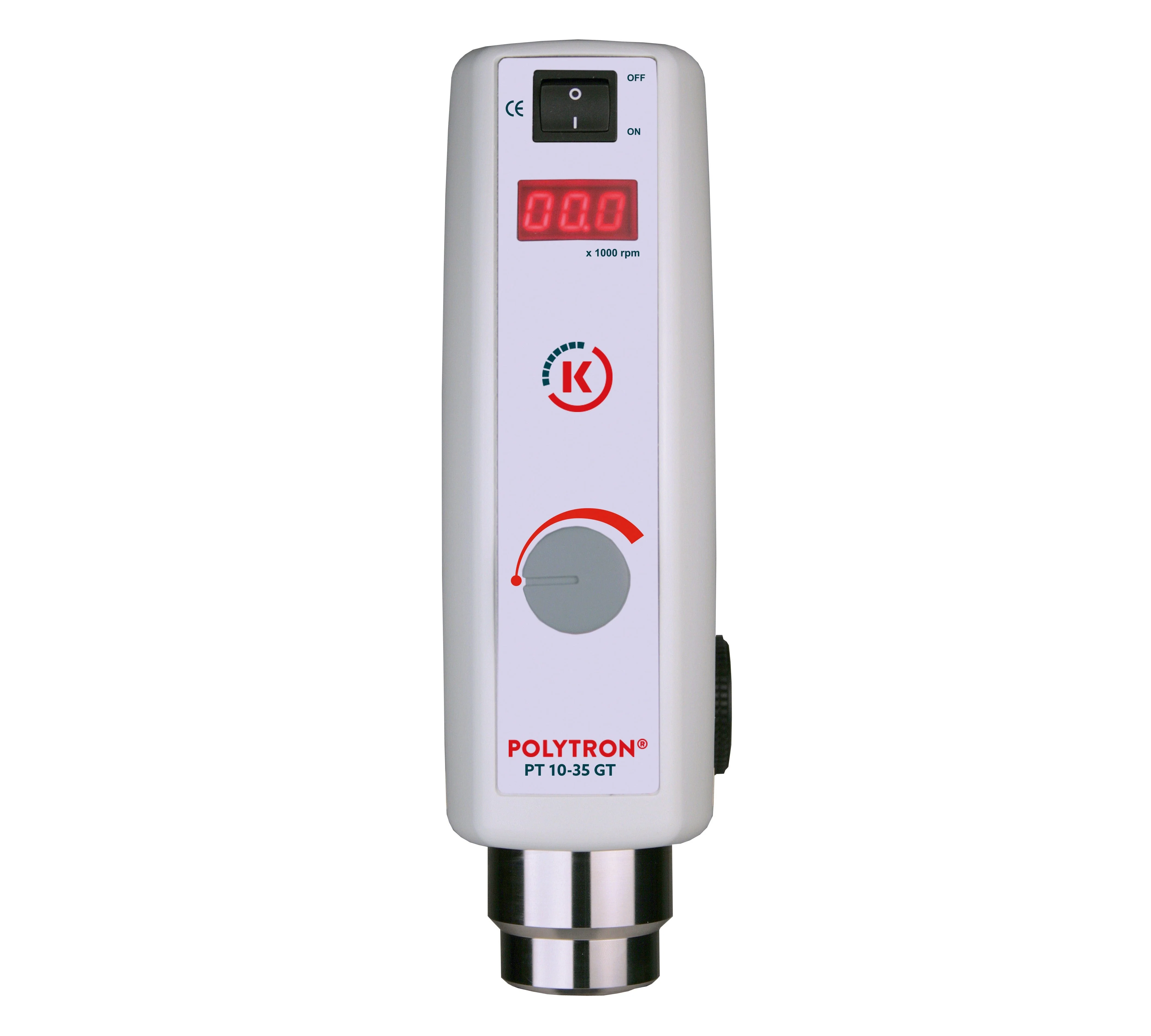

POLYTRON Ecoline PT 10-35GT Stand Disperser - Features high drive power and sleek design. With its large reserve capacity, it can be used for a sample with large volumes as easily as preparing samples with small volumes. 0.1-10,000 mL

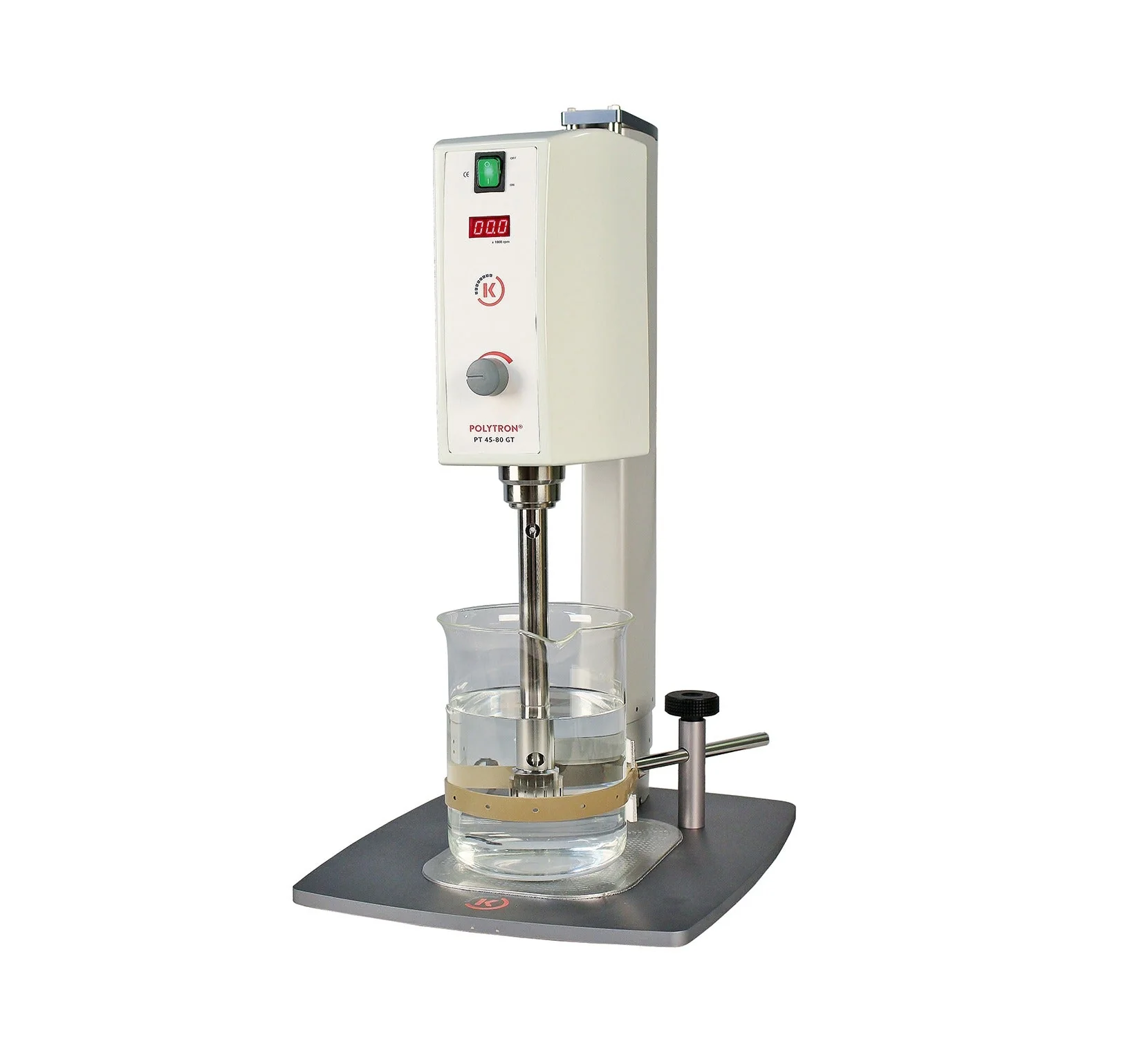

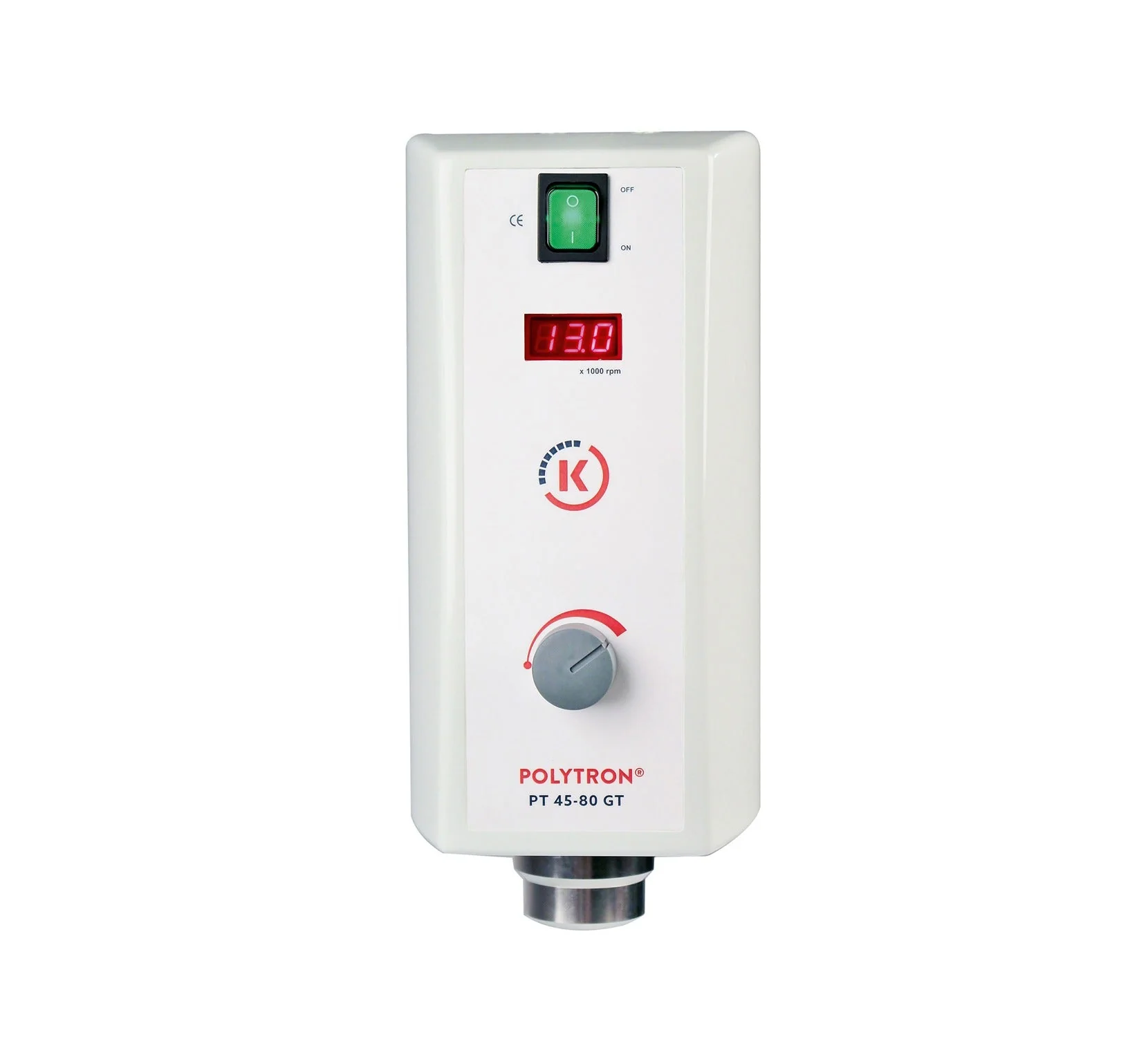

POLYTRON Ecoline PT 45-80GT Stand Disperser - With this powerful drive unit, with continuous speed control, high tip speeds and a lot of different and exchangeable POLYTRON® dispersing aggregates, the low-cost system PT 45-80 GT offer you a solution for a wide range of dispersing and mixing applications. Protection against overheating, overload and blocking 0.1-30,000 mL

Features:

• Easy operation with an on-off switch and speed control
• Intelligent variable speed control for long equipment life
• Speed stability even with changes in viscosity
• Easy to adjust motor height (depending on the stand)
• Switch aggregate quickly with Click & Go coupling
• Easy aggregate clean-up with EasyClean Design
• Smallest sizes of particles / droplets: because precise ­analysis require homogeneous samples
• Efficient sample preparation: because fast dispersion saves time
• Standard or custom-made aggregates: perfected for and in cooperation with the users
• Cleaning and disassembly: EasyClean Design makes it very simple
• Quick coupling of the aggregates: by using Click & Go
• Best materials available: because without them, we could not call it Swiss Made
• Durability is a Swiss virtue

The Ecoline PT 2500E Stand Disperser is also available as a bundle package that includes: Polytron 2500E (100-120V), Stand, Drive Holder, Vessel Holder & Safety Positioning Ring.

The Ecoline PT 10-35GT Stand Disperser is also available as a bundle package that includes: Polytron PT 10-35GT (100-120V), Stand, Drive Holder, Vessel Holder & Safety Positioning Ring.

Key Attributes

Homogenizer Type	Rotor-Stator
Sample Throughput	1 sample
Sample Volume (min)	0.05 mL (PT2500E), 0.1 mL (PT10-35GT & PT45-80GT)
Sample Volume (max)	2,500 mL (PT2500E), 10,000 mL (PT10-35GT), 30,000 mL (PT45-80GT)
Usage / Placement	Benchtop
Cooling	No
Warranty	2 years
Noise Level	66 to 72 dB(A) (PT2500E), 75 to 82 dB(A)  (PT10-35GT), 85 dB(A) (PT45-80GT)
Weight	3.97 lb (PT2500E), 7.06 lb (PT10-35GT), 15.43 lb (PT45-80GT)
Width	6.18" (PT2500E), 8.27" (PT10-35GT), 7.28" lb (PT45-80GT)
Depth	3" (PT2500E), 3.74" (PT10-35GT), 5.51" (PT45-80GT)
Height	9.2" (PT2500E), 9.72" (PT10-35GT), 10.63" (PT45-80GT)

Manufacturer Specifications

Model Units	PT 2500E	PT 10-35GT	PT 45-80GT
Min. Volume (ml)	0.05	0.1	0.1
Max. Volume (ml)	2500	10000	30000
Power (W)	500	1200	1700
Tip speed	Up to max. 26 m/s	Up to max. 34 m/s	Up to max. 32 m/s
Applicable aggregates	ø 3 mm to ø 25 mm	ø 5 mm to ø 36 mm	ø 5 mm to ø 65 mm
Speed range	500 – 30 000 rpm	500 – 30 000 rpm	500 – 21 000 rpm
Drive coupling	Aggregates with E coupling	Aggregates with F coupling	Aggregates with F coupling
Noise level (drive without aggregate)	66 dB(A) at 25 000 rpm / 72 dB(A) at 30 000 rpm	75 dB(A) at 25 000 rpm / 82 dB(A) at 30 000 rpm	85 dB(A) at 21 000 rpm
Motor	Universal with carbon brushes	Universal with carbon brushes	Universal with carbon brushes
Connection voltage	100 – 120 V	100 – 120 V	100 – 120 V
Relative humidity (max.)	80 % during storage & operation	80 % during storage & operation	80 % during storage & operation
Operating temperature	0 – 40 °C	0 – 40 °C	0 – 40 °C
Protection class acc. to DIN	IP 20	IP 20	IP 20
Dimensions (LxWxH)	157 x 76 x 234 mm	95 x 210 x 247 mm	140 x 185 x 270 mm
Weight	1800 g	3200 g	7 kg
EMC standards	IEC / EN 61000-6-2 / EN 61000-6-3	IEC / EN 61000-6-2 / EN 61000-6-3	IEC / EN 61000-6-2 / EN 61000-6-3
Safety standard	IEC / EN 61010-2-51	IEC / EN 61010-2-51	IEC / EN 61010-2-51
