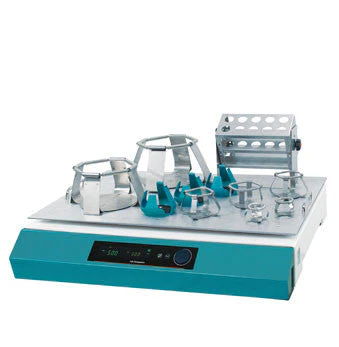

Jeio Tech OS-4000 and OS-7000 General Shakers

Overview

Powerful driving system with a durable body structure increases shaking capacity.

Available with or without a universal platform (platform and/or accessory required for use). Also offered with an optional dedicated platform and full capacity set of 250mL or 500ml flask clamps.  Additional accessories available below.

Performance

• Microprocessor PID control.
• Intelligent speed controller enables reproducible results.
• Shaking speed calibration enables matching the displayed rpm to the reference point.
• Competitive high shaking speed up to 500 rpm.
• Orbital shaking motion in various diameter.
• 19.1mm or 25.4mm for OS-4000
• 25.4mm for OS-7100
• 50.8mm for OS-7200
• Wide speed range even with heavy workload.
• Ideal DD(Direct Drive) Brushless Motor and triple cam system support heavy load, quiet, maintenance free operation and deliver high torque at high speeds and smooth rotation. (for OS-7100/7200)
• Equipped with a maintenance-free BLDC motor to generate smooth, quiet, uniform, and yet powerful shaking motion. (for OS-4000)
• Best effort run function intelligently manages its rpm to keep shaking even workload is out of its capacity.
• Automatic shaking speed adjustment in case of excessive workload such as unbalanced load placement, unusual vibrations caused from unstable floor or external shock.
• Pleasant test environment by the smooth acceleration and deceleration control.
• Smooth start and smooth stop function prevent chemical spills from flasks or test tubes.
• Low-profile design minimizes vibration or sliding caused by the high speed shaking motion.

Convenience

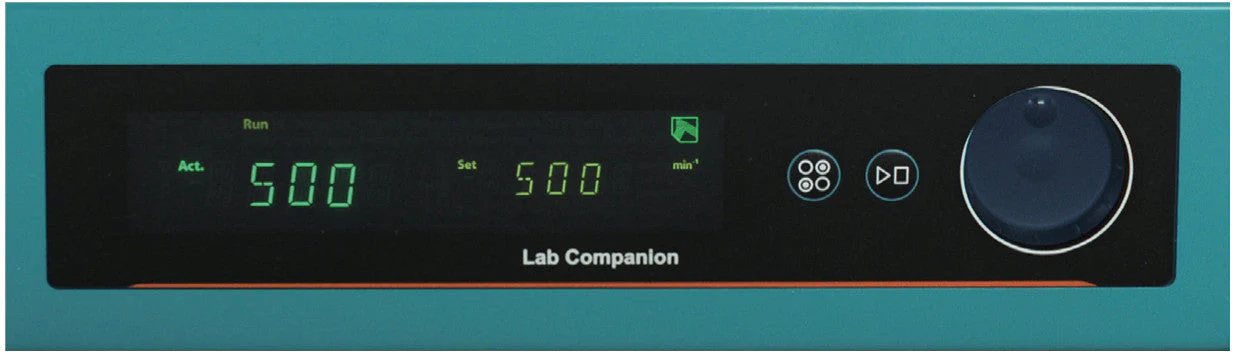

• User friendly control panel.
• Lab Companion’s unique VFD-bright, clear, easy to read.
• Durable membrane touch switch and control knob.
• Easy-set digital timer. (1 min. to 999 hr. 59 min.)
• Repetitive task can be easily performed as the platform stops where it starts.
• Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process.
• Speed is basically set and displayed in increments of 1 rpm. Also speed increment interval can be set among 1, 5, 10 rpm according to users preference.

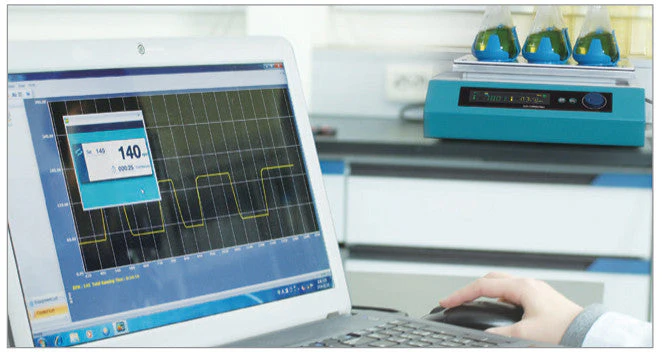

• Built-in RS-232 port and USB port for external control and data collection.

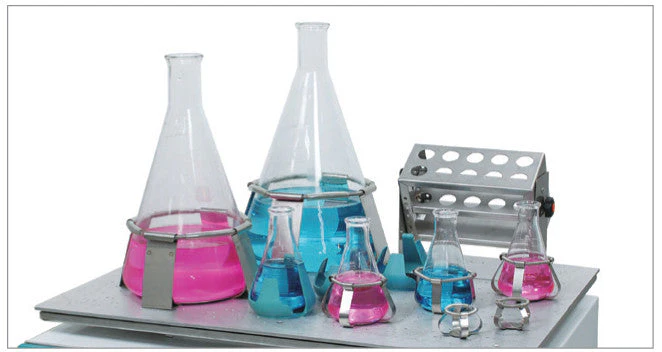

• Variety of accessories are available to meet application demands.

Safety

• Automatic run after power interruption.
• Shaking speed deviation alarm.
• Over-current protection, Stalled platform check. (stalled platform check is for OS-4000)
• CSA only for OS-4000.

Key Attibutes

Type	Standard Benchtop
Incubation	No
Refrigeration	No
Stacking	No
Platform Area (ft^2)	2.18, 4.21
Max Load (lb)	46,77
RPM - Max	500
RPM - Min	20
Orbit Diameter (mm)	19.1,25.4,50.8
Platform Dimensions	17.7×17.7, 29.6×20.5
Warranty (years)	1 (2 years after submission of warranty registration card)
Weight (lb)	94, 257.9
Width (in)	20.1, 29.7
Depth (in)	24.9
Height (in)	6.1, 5.9

Manufacturer Specifications

Model		OS-4000		OS-7100	OS-7200
Control system		PID feedback control
Display		VFD
Shaking system	Motion type	Orbital
	Amplitude size (mm / inch, dia.)	19.1 / 0.75 (standard)	25.4 / 1 (adjustable)	25.4 / 1	50.8 / 2
	Speed range 2) (rpm)	20 to 500	20 to 450	30 to 500	30 to 300
	Accuracy	±1% of set speed (≥100rpm) / ±1 (≤100rpm)
	Timer	1 min. to 999 hr. 59 min.
Max. load (kg / Ibs)		14 / 30.9 at 500 rpm 21 / 46.3 at 400 rpm	10 / 22.0 at 450 rpm 21 / 46.3 at 300 rpm	10 / 22.0 at 500 rpm 25 / 55.1 at 400 rpm	23 / 50.7 at 300 rpm 35 / 77.2 at 200 rpm
Dimension	Platform (W×D) (mm / inch)	450×450 / 17.7×17.7		755×520 / 29.6×20.5
	Body 1) (W×D×H) (mm/inch)	510x632x156 / 20.1x24.9x6.1		755x627x151 / 29.7x24.7x5.9
	Net weight (Kg / lbs)	43 / 94.8		117 / 257.9
Electrical requirements (120V, 50 / 60Hz)		0.6A		0.8A
Cat. No.		AAH3D1365U		AAH3D1465U	AAH3D1565U
