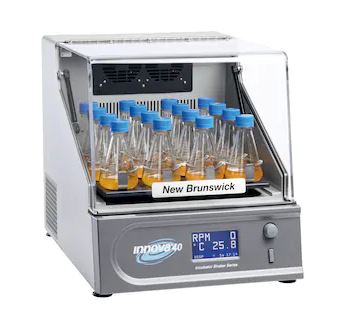

New Brunswick™ Innova® 40 Series

Overview

The Innova 40 and 40R (refrigerated) benchtop shakers provide years of dependable operation. This is the perfect shaker to begin working on small-scale projects with a view to increase volume or throughput. The self-supporting transparent lid allows samples to be in view all the time. The ability to shake flasks up to 3 L in such a compact benchtop unit provides clear scope to upscale and options include a drip pan and remote alarm. The simple user interface allows for easy programming of speed, temperature, time. The VisioNize box can be added to enhance monitoring and adds notifications functionality. Regular servicing can be carried out in-situ, allowing for minimized downtime.

Features:

• Triple-eccentric counterbalanced drive in cast iron housing provides vibration and trouble-free operation for years
• Compact benchtop model – fits easily on the bench and holds flasks up to 3 L
• Clear cover allows easy viewing of the cultures and lifts easily to access all samples
• Versatile accessory platform (sold separately) accommodates flasks up to 3 L as well as test tube racks and microplate holders
• Certified. Meets cETL, UL, CSA and CE standards

Key Attributes

Type	Incubating Benchtop
Platform Area (ft^2)	2.25
Platform Dimensions	18 x 18 in
Max Load (lb)	not specified
Incubation	Yes
Refrigeration	Optional
RPM - Max	500
RPM - Min	25
Orbit Diameter (mm)	19 33 or 25 mm
Warranty	2 Year

Manufacturer Specifications

Models	Innova® 40, orbit diameter 1.9 cm (3/4 in)	Innova® 40R, orbit diameter 1.9 cm (3/4 in)	Innova® 40, orbit diameter 2.5 cm (1 in)	Innova® 40R, orbit diameter 2.5 cm (1 in)
External height (with lid/door open)	101.6 cm (40 in)	101.6 cm (40 in)	101.6 cm (40 in)	101.6 cm (40 in)
Timer	0.01 – 99.59 h, continuous	0.01 – 99.59 h, continuous	0.01 – 99.59 h, continuous	0.01 – 99.59 h, continuous
Power supply	120 V, 50 – 60 Hz	120 V, 60 Hz	120 V, 50 – 60 Hz	120 V, 60 Hz
Dimensions (W × D × H)	55.9 × 76.2 × 61 cm / 22 × 30 × 24 in	55.9 × 76.2 × 61 cm / 22 × 30 × 24 in	55.9 × 76.2 × 61 cm / 22 × 30 × 24 in	55.9 × 76.2 × 61 cm / 22 × 30 × 24 in
Weight w/o accessories	60.3 kg / 133 lb	79.4 kg / 133 lb	60.3 kg / 133 lb	79.4 kg / 133 lb
Temperature range	Ambient +5 °C to 80 °C	15 °C below ambient to 80 °C (min. 4 °C)	Ambient +5 °C to 80 °C	15 °C below ambient to 80 °C (min. 4 °C)
Audible and visual alarms	yes	yes	yes	yes
Temperature uniformity	±0.25 °C at 37 °C	±0.25 °C at 37 °C	±0.25 °C at 37 °C	±0.25 °C at 37 °C
Available program modes	› Constant speed and temperature › Programmable multi-steps › RS-232 communication port	› Constant speed and temperature › Programmable multi-steps › RS-232 communication port	› Constant speed and temperature › Programmable multi-steps › RS-232 communication port	› Constant speed and temperature › Programmable multi-steps › RS-232 communication port
Drive mechanism	Triple-eccentric counterbalanced drive	Triple-eccentric counterbalanced drive	Triple-eccentric counterbalanced drive	Triple-eccentric counterbalanced drive
Benchtop (B), Under Bench (U), Floor (F) or Stackable (S)	B	B	B	B
Memory	Non volatile with automatic power failure restart	Non volatile with automatic power failure restart	Non volatile with automatic power failure restart	Non volatile with automatic power failure restart
Motor type	Solid state, DC brushless motor	Solid state, DC brushless motor	Solid state, DC brushless motor	Solid state, DC brushless motor
Platform size	46 × 46 cm (18 × 18 in)	46 × 46 cm (18 × 18 in)	46 × 46 cm (18 × 18 in)	46 × 46 cm (18 × 18 in)
Refrigerated	–	yes	–	yes
Slide-out platform	no	no	no	no
Space-saving glide-up doors	no	no	no	no
Speed range	25 – 500 rpm	25 – 500 rpm	25 – 500 rpm	25 – 500 rpm
Multi-step programming	yes	yes	yes	yes
Steps per program	15	15	15	15
Stored programs	4	4	4	4
cETLus and CE marked	yes	yes	yes	yes
Agitation
Orbit	1.9 cm (0.75 in)	1.9 cm	2.5 cm (1 in)	2.5 cm (1 in)
