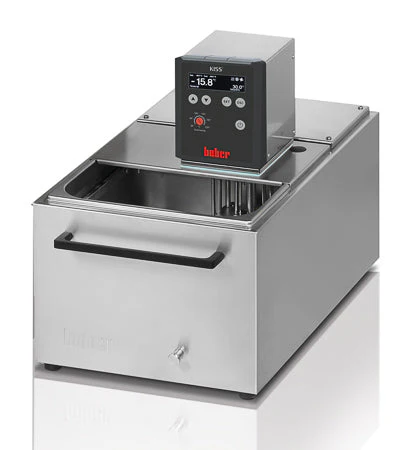

Huber KISS K15 Cooling Bath Thermostat

Overview

Cooling bath thermostats with insulated cooling baths are an economic solution for thermoregulation of objects directly in the thermostat bath. The units are therefore suitable for a number of typical heating and cooling tasks such as sample temperature control, materials testing, quality control, analyses, etc. Cooling circulator operates with natural refrigerants and are therefore offer an environmentally friendly solution to temperature control. In addition, cooling circulators are fitted with automatic refrigeration capacity adjustment, reducing energy consumption and waste heat down to the absolute essential. With low level protection and adjustable over heating protection the units fulfil the requirements of Safety Class III/FL according to DIN 12876. The thermostats can also be used for externally attached applications using the pump connections at the rear.

The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Features:

• Bright, large OLED display
• Simple operation with menu navigation
• Simultaneous display of setpoint, Tmin, Tmax and actual temperature
• Status displays for pump, cooling and heating
• Overtemperature and low level protection
• Safety class III/FL (DIN 12876)
• USB and RS232 interfaces
• Autostart function for power failure
• Natural refrigerant

Key Attributes

Incubation	Yes
Refrigeration	Yes
Temp Range (°C)	-20 to 200
Capacity (L)	15
Circulation	Internal and External
Brand	Huber
MaxFlow Rate (l/min)	14 lpm ; 0.25 bar
Temp Stability (°C)	±0.05
Timer	No
Alarms	Yes
Digital or Mechanical	Digital
Data connection	Yes
Tank Material	Stainless Steel
Sample Agitation	No
Media Racks Available	No
Warranty (years)	1 year (extendable upon registration with manufacturer)

Manufacturer Specifications

Temperature range	-20...200 °C
Temperature stability	±0.05 °C
Temperature display	OLED Display
Alarm message	optical, acoustical
Controller	KISS
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	350 x 560 x 430 mm | 13.78 x 22.05 x 16.93 inches
Weight	28 kg | 61.74 pounds
Heating capacity	1,5 kW
Cooling capacity	20 0 -10 -20  °C 0,25 0,2 0,12 0,05  kW
Cooling machine	air-cooled
Refrigerant (ASHRAE, GHS)	R290 (A3, H220) (0,04 kg)
Pressure pump max.	14 lpm ; 0.25 bar | 3.7 gpm ; 3.62 psi
Suction pump max.	10.5 lpm ; 0.17 bar | 2.77 gpm ; 2.47 psi
Pump connection	-- (Option, #19607 )
Digital interface	USB (Device), RS232 interfaces
Permissible ambient temp.	5...40 °C
Bath opening W x D / BD	290 x 152 / 200 mm | 11.42 x 5.98 / 7.87 inches
Bath volume	15 Liters | 3.96 gal
Filling volume min.	10 Liters | 2.64 gal
Power supply	110-120V 1~ 50/60Hz
Current max.	15 + 2,6 A
