The Story
Overview

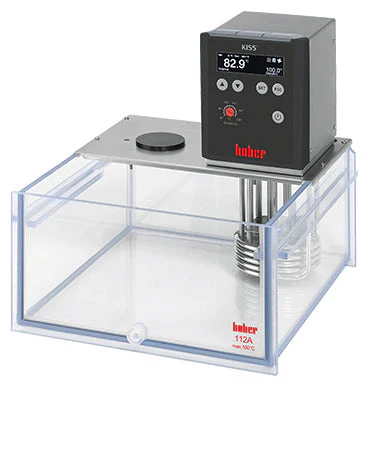

Heating circulation bath thermostats with baths made from polycarbonate or stainless steel are simple to use and are suitable for many applications such as: sample temperature control, analysis, materials testing or checking food. The units offer high temperature stability and are fitted with overtemperature and low level protection suitable for Safety Class III/FL (DIN 12876) for use with flammable fluids. A powerful pressure/suction pump ensures optimal circulation and temperature homogenity in the bath and also allows temperature control of externally attached applications using a pump adapter (accessory). The products are rounded off with a range of accessories including inserts, variable adjustable platforms, bath covers, probes as well as hoses, temperature control fluids and various adapters.
The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).
Features:
- KISS temperature controller
- Bright, large OLED display
- Simple operation with menu navigation
- Simultaneous display of setpoint, Tmin, Tmax and actual temperature
- Status displays for pump, cooling and heating
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- USB and RS232 interfaces
- Autostart function for power failure
- 3 color versions available: grey (standard), blue, red
Key Attributes
| Incubation | Yes |
| Refrigeration | No |
| Temp Range (°C) | 25 to 100 |
| Capacity (L) | 12 |
| Circulation | Internal |
| Brand | Huber |
| MaxFlow Rate (l/min) | 14 lpm ; 0.25 bar |
| Temp Stability (°C) | ±0.05 |
| Timer | No |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | Yes |
| Tank Material | Polycarbonate |
| Sample Agitation | No |
| Media Racks Available | No |
| Warranty (years) | 1 year (extendable upon registration with manufacturer) |
Manufacturer Specifications
| Temperature range | (15) 25...100 °C |
| Temperature stability | ±0.05 °C |
| Temperature display | OLED Display |
| Alarm message | optical, acoustical |
| Controller | KISS |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 333 x 360 x 335 mm | 13.11 x 14.17 x 13.19 inches |
| Weight | 8 kg | 17.64 pounds |
| Heating capacity | 1 - 1,5 kW |
| Pressure pump max. | 14 lpm ; 0.25 bar | 3.7 gpm ; 3.62 psi |
| Suction pump max. | 10.5 lpm ; 0.17 bar | 2.77 gpm ; 2.47 psi |
| Pump connection | M16x1 AG male (Option, #19606 ) |
| Digital interface | USB (Device), RS232 interfaces |
| Permissible ambient temp. | 5...40 °C |
| Bath opening W x D / BD | 275 x 161 / 150 mm | 10.83 x 6.34 / 5.91 inches |
| Bath volume | 12 Liters | 3.17 gal |
| Filling volume min. | 7.3 Liters | 1.93 gal |
| Power supply | 100-115V 1~ 50/60Hz |
| Current max. | 15 A |
| Fusing | 15 A |
Description
Overview
Heating circulation bath thermostats with baths made from polycarbonate or stainless steel are simple to use and are suitable for many applications such as: sample temperature control, analysis, materials testing or checking food. The units offer high temperature stability and are fitted with overtemperature and low level protection suitable for Safety Class III/FL (DIN 12876) for use with flammable fluids. A powerful pressure/suction pump ensures optimal circulation and temperature homogenity in the bath and also allows temperature control of externally attached applications using a pump adapter (accessory). The products are rounded off with a range of accessories including inserts, variable adjustable platforms, bath covers, probes as well as hoses, temperature control fluids and various adapters.
The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).
Features:
- KISS temperature controller
- Bright, large OLED display
- Simple operation with menu navigation
- Simultaneous display of setpoint, Tmin, Tmax and actual temperature
- Status displays for pump, cooling and heating
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- USB and RS232 interfaces
- Autostart function for power failure
- 3 color versions available: grey (standard), blue, red
Key Attributes
| Incubation | Yes |
| Refrigeration | No |
| Temp Range (°C) | 25 to 100 |
| Capacity (L) | 12 |
| Circulation | Internal |
| Brand | Huber |
| MaxFlow Rate (l/min) | 14 lpm ; 0.25 bar |
| Temp Stability (°C) | ±0.05 |
| Timer | No |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | Yes |
| Tank Material | Polycarbonate |
| Sample Agitation | No |
| Media Racks Available | No |
| Warranty (years) | 1 year (extendable upon registration with manufacturer) |
Manufacturer Specifications
| Temperature range | (15) 25...100 °C |
| Temperature stability | ±0.05 °C |
| Temperature display | OLED Display |
| Alarm message | optical, acoustical |
| Controller | KISS |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 333 x 360 x 335 mm | 13.11 x 14.17 x 13.19 inches |
| Weight | 8 kg | 17.64 pounds |
| Heating capacity | 1 - 1,5 kW |
| Pressure pump max. | 14 lpm ; 0.25 bar | 3.7 gpm ; 3.62 psi |
| Suction pump max. | 10.5 lpm ; 0.17 bar | 2.77 gpm ; 2.47 psi |
| Pump connection | M16x1 AG male (Option, #19606 ) |
| Digital interface | USB (Device), RS232 interfaces |
| Permissible ambient temp. | 5...40 °C |
| Bath opening W x D / BD | 275 x 161 / 150 mm | 10.83 x 6.34 / 5.91 inches |
| Bath volume | 12 Liters | 3.17 gal |
| Filling volume min. | 7.3 Liters | 1.93 gal |
| Power supply | 100-115V 1~ 50/60Hz |
| Current max. | 15 A |
| Fusing | 15 A |
