Jeio Tech GC Series Plant Growth Chambers

Overview

Optimal photosynthesis condition guaranteed when using our plant growth chamber.
Ample capacity, maximum capacity of 1000L to satisfy user's plant growth needs
Models: GC-300TL/300TLH/1000TLH

Performance
General control system

• Temperature range:
• 300 series (10.6 cu ft): 5℃ to 50℃ (lamp off) / 10℃ to 50℃ (lamp on)
• 1000 series (35.3 cu ft): 20℃ to 50℃
• Max. to 35,000Lux for GC-1000.
• Max. to 20,000Lux for GC-300 Models.
• 40 to 80% RH for GC-300TLH. (at 20 to 35℃)
• 50 to 90% RH for GC-1000TLH. (at 20 to 35℃)
• Optional CO2 sensor system enables the GC chambers to control CO2 up to 5,000 ppm.
• Microprocessor PID control / Temperature calibration / Automatic tuning.
• 10 step programmable temperature, humidity, and illumination profiles and repeatable steps of up to 999 cycles.

Illuminance control system

• Uniformed luminescence distribution.
• Broad distribution of side lamps for hastening the growth of plants.
• High intensity illumination of upper lamp for light efficient and low thermal load. (for GC-1000TLH/1000TL)
• Unique construction for minimization of heat increase from surrounding lamps.
• - Tempered glass door blocks heated air from lamps.
• - Designed to exhaust heated air through upper vent holes. (for GC-1000TLH)
• Stable and long lasting lighting through introduction of high frequency electronic ballast lamps.

Convenience

• Ergonomically designed door construction.
• - Inner glass door with silicone and external door with magnetic sealing for dual airtight packing.
• - Well designed providing a smooth open for minimization of damage to plants.
• Wide inner tempered glass door for clear observation of plant growth without affecting inner chamber’s environment.
• Tall plants can be grown inside of the chamber with adjustment of shelve level.
• Maintenance of water supply are easily performed with a front water tank. (GC-1000TLH)
• - Water level check indicated by water level bar in the tank.
• Water supply during operation is also available for long term test purposes.
• Adjustable water tank position. (for GC-300TLH)
• Detachable condenser air-filter for easy maintenance of refrigerating efficiency.
• - Maintenance of air filter no longer cumbersome with our detachable condenser air filter.
• Casters for easy mobility during installation or relocation.
• Eco-friendly CFC-free refrigerant use.

Safety

• Automatic shut off after overheat alarm.
• Low and empty water level alarm.
• Power supply leakage breaker.
• Over current protection,
• Open door alarm.

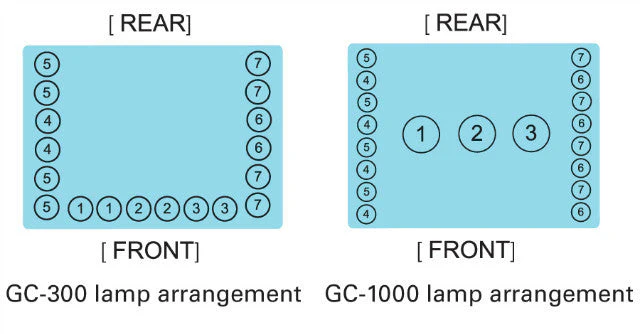

Lamps setting

• Control illumination values with the pictured lamp setting arrangements.

PLEASE NOTE: All Jeio Tech environmental chambers are manufactured to order. A lead time of approximately 12 weeks should be expected.

Some accessories are factory install only and must be ordered at time of Incubator purchase for factory installation at time of manufacture.

Key Attributes

Cu ft.	10.6, 35.3
Max Temp	50°C
Min Temp	5°C
Temp Uniformity	± 0.5°C
Interior Outlets	No
Alarms	Yes
Datalogging Capable	Yes
Warranty (years)	1 (2 years after submission of warranty registration card)
Site	Floor
Weight (lbs)	551, 1213



Manufacturer Specifications

Model		GC-300TL		GC-300TLH		GC-1000TLH
Chamber volume (L / cu ft)		300 / 10.6				1000 / 35.3
Control system		Microprocessor PID controller
Temperature	Range (℃ / ℉)	5 to 50 / 41 to 122 - Lamp off
		10 to 50 / 50 to 122 - Lamp on
		20 to 50 / 68 to 122 - with humidity
	Fluctuation (±℃ / ℉) at 25℃	0.1 / 0.18 - without humidity
	Variation (±℃ / ℉) at 25℃	0.8 / 1.43 - without humidity
Illumination	Range (Lux)	0 to 20,000				0 to 35,000
	Control (steps)	10				11
	Lamp	Fl lamp (32W×18ea)				FL lamp (32W×16ea)
						Metal lamp (400W×3ea)
Humidity	Range (% RH)	-		40 to 80 at 20 to 35℃		50 to 90 at 20 to 35℃
				70 to 90 at 36 to 50℃		60 to 90 at 36 to 50℃
	Fluctuation (±RH) at 60% RH	-		3
Co2(optional)	Range (ppm)	Max. 5,000
	Sensor	NDIR CO2 sensor
Refrigerant (HP)		1/2				3/4
Temp. heater power (W)		750×2ea				1,500×2ea
Humid. heater power (W)		-		1300		1500
Dimension (W×D×H)	Interior (mm / inch)	510×540×1100 / 20×21.3×43.3				1200×800×1080 / 47.2×31.5×42.5
	Exterior (mm / inch)	700×805×1900 / 27.6×30.1×74.8				1410×1070×2150 / 55.5×42.1×84.7
	Net weight (kg / lbs)	250 / 551.2				550 / 1212.5
Electrical requirements (230V)		60Hz / 12.5A		60Hz / 16A		60Hz / 30A
Cat. No.		AAHA1011K		AAHA1021K		AAHA1031K

 FAQ

What kind of lights do the GC Plant Growth Chambers use?

They use 32 W fluorescent bulbs.



Does the GC-1000TLH have two independently controlled chambers?

No, the GC-1000TLH has two doors which lead into a single chamber.
