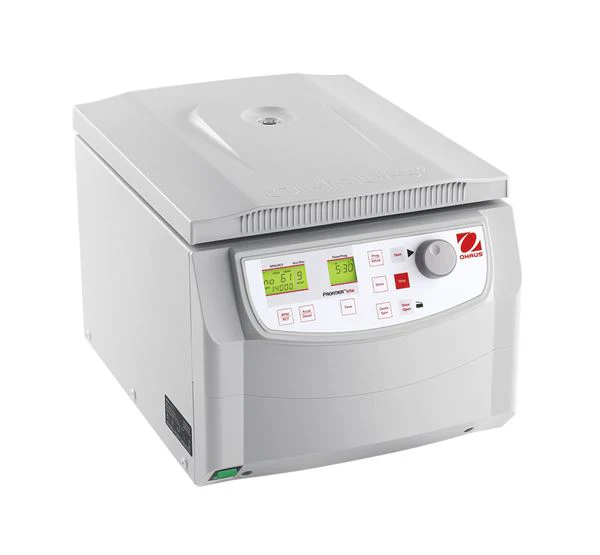

OHAUS Frontier FC5714 Multi-Pro Centrifuge

Overview

Frontier 5000 Multi Pro Centrifuges are designed for universal use in research, industrial & clinical laboratories, and can be combined with our rotors & accessories for customized use in specific applications. Available in 5 models with capacities from microliter to 4x100 ml, and featuring high-speed performance at maximum volume, automatic rotor identification and safety features - these multi-purpose centrifuges are a must for any lab.

Features:

• Compatible with up to 9 optional rotors and 77 accessories
• Capacities from microliter to 4 × 100 ml
• High-speed centrifugation (>10000 rpm) from 0.2 ml up to 1.5/2.0 ml tubes
• Applications: Centrifugal Separation, General Sample Preparation, Cell Pelleting, Protein Separation, Nucleic Acid Separation, Cell Concentrating, Chemical Separation, Diagnostics, Environmental Sample Preparation, Blood Sample Processing
• Display: Backlit Liquid Crystal Display (LCD)
• Operation: Designed to be used with a variety of rotors and accessories
• Construction: Corrosion-resistant stainless steel chamber with Polycarbonate/ABS plastic lid
• Design Features: Ten acceleration & deceleration rates, selection of running time from 10s to 99h 59min or continuous, quick spin, CFC-free refrigeration system, sample temp. indication (refrigerated models), lid-locking system, over-speed protection, dual imbalance sensing

Rotors sold separately. See below for options.

Key Attributes

RPM	14,000
RCF	18,624
Refrigeration	No
Capacity	4 x 100 ml
Warranty (Years)	2



Manufacturer Specifications

Speed Range	200 rpm – 14,000 rpm
Maximum Relative Centrifuge Force (x g)	18,624 g
Maximum Capacity (Rotor)	4 x 100 ml
Program memories	99
Rotor In Package	Not applicable
Acceleration Gear	10
Deceleration Gear	10
Dimensions (HxLxW)	12.99 in x 19.41 in x 14.25 in (330 mm x 493 mm x 362 mm)
Display	LCD with backlight
Lid lock	Mechanical
Net Weight	66 lb (30 kg)
Noise Level	≤63±2 dB(A)
Power	AC Power (Included)
Power Consumption	300 W
Pre-cool time	Not applicable
Rotor Compatibility	Swing out 4 x 100 ml ID;  Swing out 4 x 100 ml ID Sealable;  Swing out 2 x 3MTP ID;  Angle 6 x 50 ml RB/FA ID;  Angle 30 x 15 ml RB/FA ID;  Angle 12 x 15 ml RB/FA ID;  Angle 30 x 1.5 / 2.0 ml ID Sealable;  Angle 24 x 1.5 / 2.0 ml ID Sealable;  Angle 24 x 1.5 / 2.0 ml ID
Rotor Recognition Method	Auto
Running Time	Quickspin;  10 sec to 99 h 59 min 59 sec;  Continuous
Safety Certification	CE;  FCC
Working Environment	36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)
