Overview

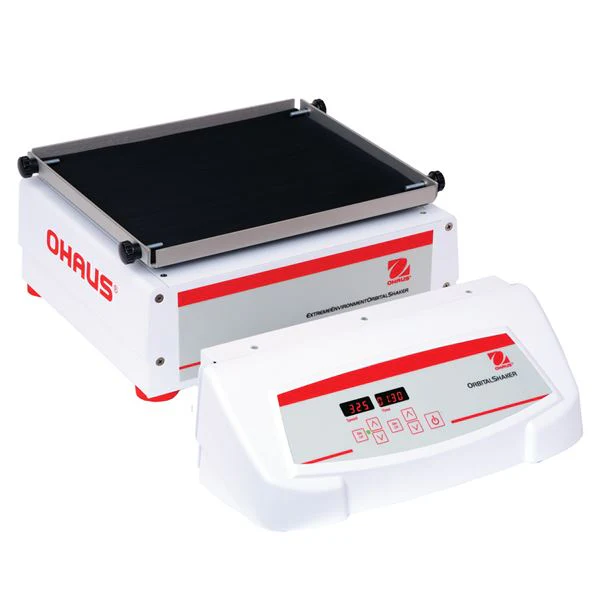

Ideal for applications that require CO2 and humidity for optimal cell growth, our Extreme Environment Shakers are designed for use in extreme environments such as CO2 incubators. A remote controller (that magnetically attaches to the outside of most incubators) allows for external control of settings, and the shaker base is placed inside of the incubator. Microprocessor control ensures consistent shaking while safely ramping to the set speed. Model SHEX1619DG
Features:
- Applications - Cell Cultures, Solubility Studies, Extraction Procedures, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
- Independent LED displays for speed/time allow the operator to view both settings simultaneously
- Detachable 3-wire cord and plug (included)
- RS232 interface provides two-way communication for data logging and unit control (digital models)
- Cold rolled steel (CRS) and stainless steel, external control module, thin ribbon cable (5.5 feet or 1.7 m) easily passes underneath an incubator door or via incubator’s utility port
- Built-in tray (11x13 inch or 28x33 cm) with a non-slip rubber mat (included)
Key Attributes
| Type | Standard Benchtop |
| Platform Area (ft^2) | 0.99 |
| Platform Dimensions | 11 x 13" |
| Max Load (lb) | 35 lb |
| Incubation | No |
| Refrigeration | No |
| RPM - Max | 500 |
| RPM - Min | 15 |
| Orbit Diameter (mm) | 19 mm |
| Warranty | 2 Years |
| Weight (lb) | 49 |
| Width (in) | 14" |
| Depth (in) | 11.6" |
| Height (in) | 5.9" |
Manufacturer Specifications
| Motion | Orbital, 19 mm |
| Capacity | 16 kg |
| Tray Size (LxW) | 13 in x 13 in (33 cm x 33 cm) |
| Control | Digital |
| Drive System | Brushless DC Motor;Triple Eccentric |
| Calibration | Speed calibration |
| Communication | RS232 (Included) |
| Net Weight | 48.1 lb (21.8 kg) |
| Orbit | 0.8 in (19 mm) |
| Power | 120V, 0.5A, 50/60Hz |
| Power Consumption | 30 W |
| Safety Certification | TUV |
| Speed Accuracy | ±1 rpm, Above 100 rpm ±1% of set speed |
| Speed Range | 15 rpm – 500 rpm |
| Timer | 1 second – 160 hours |
| Tray Construction | Aluminum |
| Working Environment | 14°F – 140°F, 100%RH (-10°C – 60°C, 100%RH) |
FAQ
Does the Extreme Environment Shaker have a "home position" which it returns to when shaking is stopped, or does it stop anywhere along its orbit?
The Extreme Environment Shaker does not have a home position. When shaking is stopped, it can stop anywhere in its orbit path.
