Original: $164,999.00
-70%$164,999.00
$49,499.70The Story
Overview

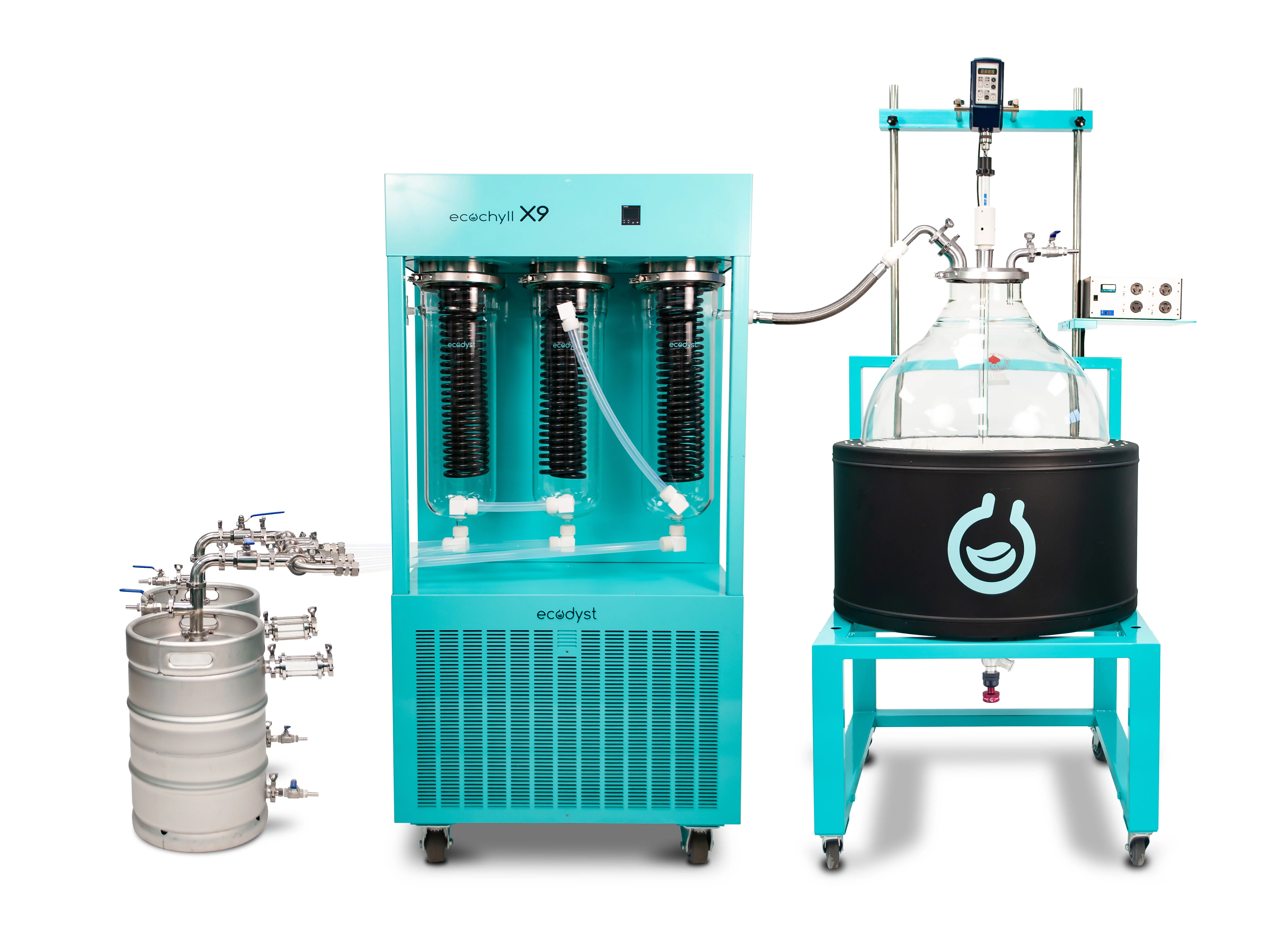

Engineered to satisfy the highest volume requirements for solvent recovery, the EcoChyll® X9 large capacity evaporation unit is a high-speed and ultra-efficient system for demanding extractions. Based on unique triple coil self-cooling technology, this workhorse solution is the best evaporation unit for large-scale extractions, with a greater maximum capacity than any alternative on the market - a true 200 L capacity.
The EcoChyll® X9 evaporation unit was engineered to address the bottleneck in botanical extraction laboratories servicing the booming hemp industry. Extractions, solvent recovery, and decarboxylation processes that once took several experienced operators with numerous rotary evaporators hours, can now be accomplished in a fraction of the time. With a 16,000 watt heating mantle and a matching high cooling capacity, the 200 L EcoChyll® X9 comprehensively exceeds the performance of eight traditional 50 liter rotovaps.
Features:
- Autonomous self-cooling condensers require no user intervention after initiation
- Convenient bottom drain valve facilitates rapid and simple product removal
- Continuous inlet feed valve for uninterrupted operation
- Extremely high evaporation rates at a fraction of the falling film evaporator energy usage
- No special infrastructure modification required
- Multifunctional evaporation unit enabling both solvent recovery and decarboxylation
- One-man operation with minimal interference required
- Time-saving and energy-efficient for high, ongoing returns on investment (ROIs)
The EcoChyll X9 is sold as a complete turnkey system, including flasks, condensers, stirrer, heating mantle, vacuum pump, stands, tubing, clamps, adapters, temperature probe - everything!
Key Attributes
| Condenser type | Vertical |
| Arm lifting | N/A |
| Temp Range (°C) | Up to 250°C |
| Max. Flask Size | 200L |
| Brand | Ecodyst |
| Rotation speed | N/A |
| Stroke: | N/A |
| Temp Accuracy (°C) | N/A |
| Vacuum controller included | Yes |
| Programmable | No |
| Warranty (years) | 2 |
| Weight (lb) | N/A |
| Width (in) | 96 |
| Depth (in) | 34 |
| Height (in) | 80 |
Manufacturer Specifications
| Display Type | Dual-line digital | |
| Condenser Type | Refrigerated | |
| Capacity | 200 L | |
| Min Temperature (° C) | -30 | |
| Power (VAC) | 230 | |
| Length (in) | 96 | |
| Width (in) | 34 | |
| Height (in) | 80 | |
| Length (cm) | N/A | |
| Width (cm) | N/A | |
| Height (cm) | N/A | |
| Description | Tankless Evaporator, Single Phase; 230 VAC | |
200L X9
