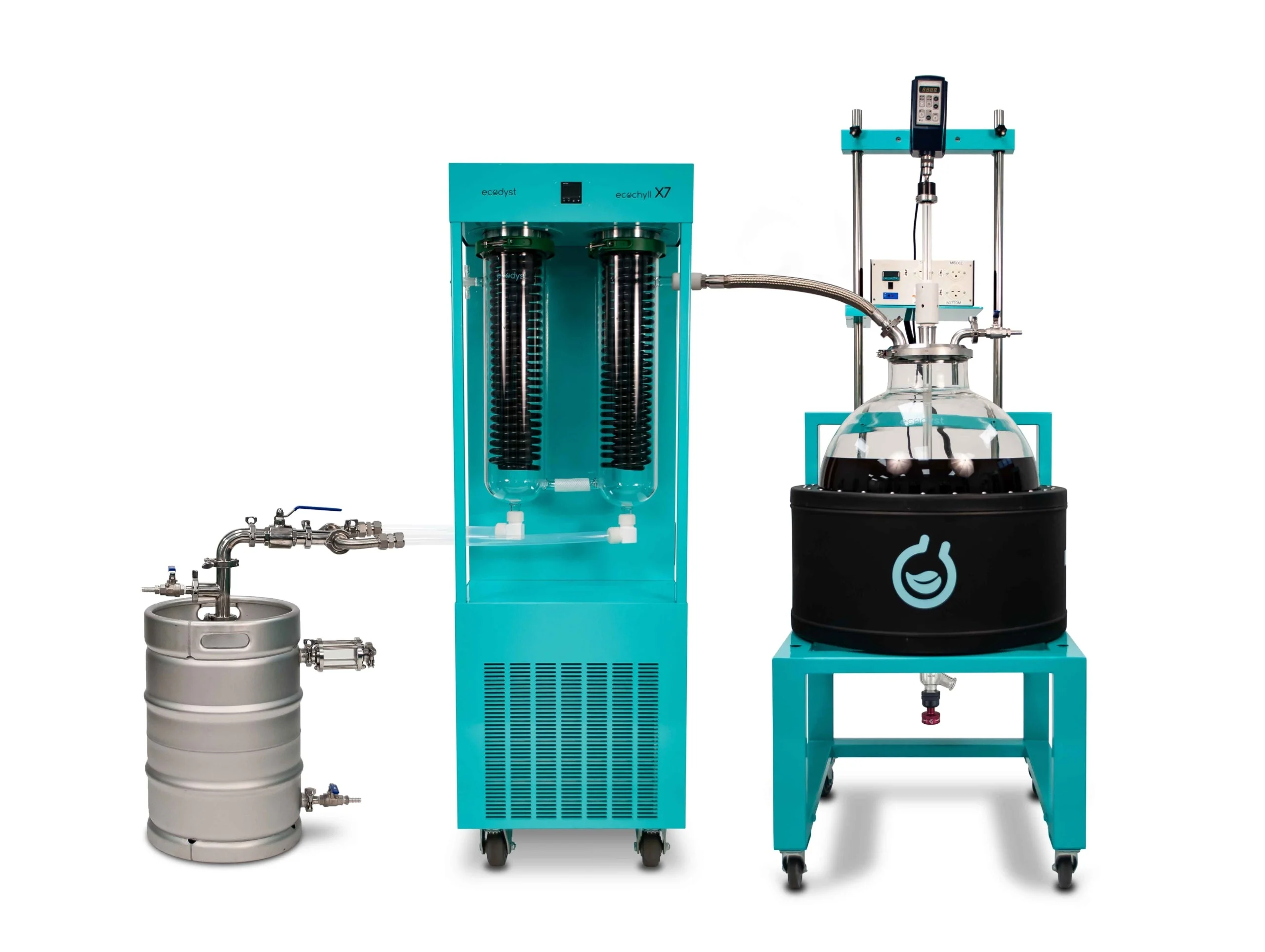

EcoChyll® X7 High-Speed Evaporation System

Overview

Built for industrial-scale evaporation, the EcoChyll® X7 high speed evaporator from Ecodyst combines high loading capacities with rapid continuous cooling for efficient and fast solvent recovery. Courtesy of proprietary intelligent direct self-cooling condensers, the EcoChyll® X7 high cooling capacity and large surface area condensers can reliably condense large volume of solvents.

Our industrial-scale rotary vacuum evaporator is a turn-key solvent recovery system trusted by chemists and botanical extraction processors in both research and commercial laboratory settings. Based on innovative self-cooling technology, our smart cooling system is both eco-friendly and efficient. The EcoChyll® X7 continuous cooling system is guaranteed to increase productivity for high throughput solvent recovery and decarboxylation applications while keeping user safety and usability at the forefront of all botanical extraction applications.

Features:

• Best-in-class evaporation rates
• Continuous sample feed valve ensures uninterrupted operation
• Cost-effective by eliminating expensive rotary motor with overhead stirring
• Easy-to-use, with simple product drainage not requiring removal of large evaporation vessels
• Excellent energy efficiency
• High-speed stirring for increased surface area and vapor generation
• Modularity of the system enables easy upgrades from 22L to 50L capacities
• Safety guaranteed, with all glassware remaining stationary throughout operation
• Twice the loading capacity of traditional rotovaps. 100 liter EcoChyll X7 actually holds 100 liters, compared with 25 liters in "50 L" rotary evaporators.
• Chemical resistant dual condenser with over 9000 cm² cooling surface area
• Proprietary intelligent direct self-cooling condensers can achieve -30°C in just 5 minutes.

The EcoChyll X7 is sold as a complete turnkey system, including flasks, condensers, stirrer, heating mantle, vacuum pump, stands, tubing, clamps, adapters, temperature probe - everything!

Key Attributes

Condenser type	Vertical
Arm lifting	N/A
Temp Range (°C)	Up to 250°C
Max. Flask Size	22L, 50L, 72L, or 100L
Brand	Ecodyst
Rotation speed	N/A
Stroke:	N/A
Temp Accuracy (°C)	N/A
Vacuum controller included	Yes
Programmable	No
Warranty (years)	2
Weight (lb)	N/A
Width (in)	N/A
Depth (in)	N/A
Height (in)	N/A



Manufacturer Specifications

Display Type	Dual-line digital
Condenser Type	Refrigerated
Capacity	50 to 100 L	50 L	100 L	22 L	72 L
Min Temperature (° C)	-30
Power (VAC)	230
Length (in)	56	177 51/64	254	152 2/5	177 51/64
Width (in)20	20	30	40	20	30
Height (in)66	65	66	83	66	72
Length (cm)60	22	70	100	60	70
Width (cm)50.8	50.8	76.2	101.6	50.8	76.2
Height (cm)167.6	165	167.6	210.8	167.6	182.9
Description	Tankless Evaporator System With Dual Condensers
