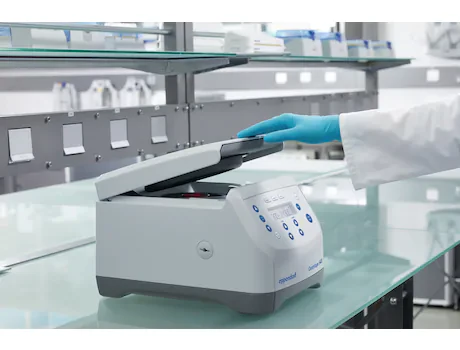

Eppendorf Centrifuge 5420

Overview

The new Eppendorf Centrifuge 5420 was designed with your molecular biology routine applications in mind. The spectrum of methods includes DNA/RNA purification, DNA extraction from agarose gels and PCR reaction set-up. It has a particularly small footprint to save space on the lab bench and an easy to clean keypad control panel. You can spin up to 24 tubes from 1.5 to 2.0 mL. Optional adapters extend the volume range to 0.4 and 0.5 mL tubes as well as 0.6 mL BD Microtainer®. A rotor for 32 PCR tubes (0.2 mL) or four PCR strips is available as well. For your safety, the standard rotor provides aerosol-tight containment for the centrifugation of hazardous samples such as viruses, pathogen bacteria or radioactive probes.

Features:

• Standard rotor for up to 24 x 1.5 and 2.0 mL tubes
• Rotor option for up to 32 x 0.2 mL PCR tubes or 4 x 8-place PCR strips
• Adapters for 0.2, 0.4 and 0.5 mL tubes as well as 0.6 mL BD Microtainer®
• Soft-touch one-finger lid closure for ergonomic lid locking
• Automatic lid opening at the end of the run to prevent sample warming and to allow easy access to samples
• High quality anodized aluminum rotors and rotor lids
• One push short-spin key for quick centrifugation - no need to hold key all the while
• Easy to clean keypad control panel
• Particularly small footprint to save precious space on the lab bench: 24 × 35 × 22 cm (W × D × H)
• Max. speed: 21,300 × g (15,060 rpm)



Key Attributes

RPM	15,060
RCF	21,300 × g
Refrigeration	No
Capacity	24 × 1.5/2.0 mL
Warranty (years)	2

Manufacturer Specifications

Model	5420
Max. RCF	21,300 × g
Max. capacity	24 × 1.5/2.0 mL
Rotors available	2
Acceleration time1	15 s
Deceleration time1	15 s
Display	large, brightly lit LCD
Timer	10 s to 9:59 h, with continuous run function
SOFT brake function	10 ramps
Noise level	< 56 dB(A)
Power supply	120 V, 50 – 60 Hz
Max. power consumption	290 W
Dimensions (W × D × H)	24 × 35 × 22 cm
Height (with open lid)	44 cm
Weight w/o accessories	13 kg
Cooling	non-refrigerated

1Acceleration and deceleration times may vary depending on rotor, load and voltage version.
