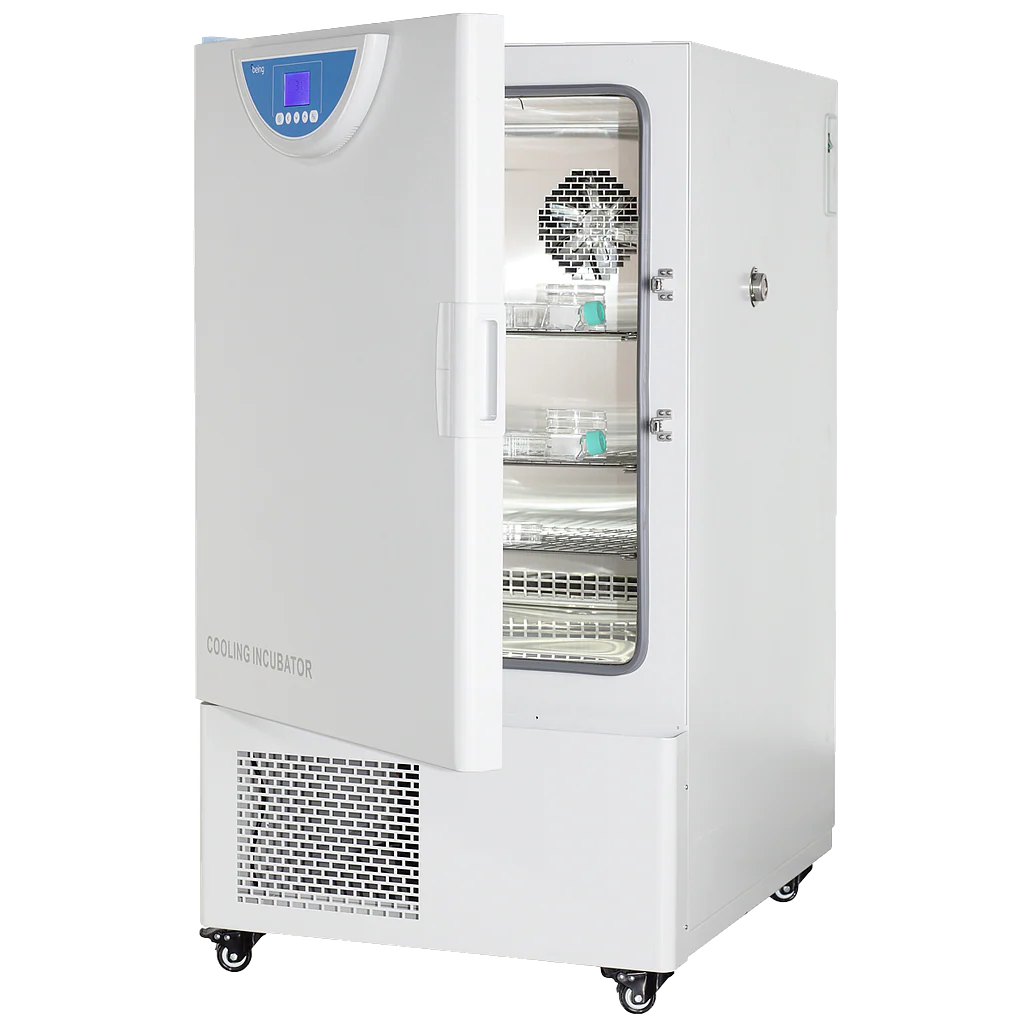

BEING BIC Series Cooling Incubators

Overview

BEING Cooling Incubators allow users to carry out applications that require temperatures ranging from -10° to +80°C. These incubators are ideal for biochemical oxygen demand testing, bacterial research, seed germination, fish/insect breeding and much more. The BEING Cooling Incubator provides accurate and dependable temperature control. Each cooling incubator uses environmentally friendly refrigerants that ensure rapid cooling does not come at the expense of the environment.

Features:

Performance and Features

• Temperature Range: -10℃ ~80℃ .
• P.I.D temperature controller provides accurate and reliable temperature control.
• Natural convection heating allows the sample temperature to be uniform, suitable for sterilization, powder drying and high temperature storage.
• Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.
• The BEING Controller provides programmability for 7 periods and 9 steps for each period making for a total of 63 programmable steps. Up to 9 programs can be saved.

Convenience

• Inner chamber is made from corrosion-resistant mirror stainless steel.
• Round curved inner angle is easy to clean.
• Anti-skid shelf design, easy to operate by single hand.

Safety

• Auto Start Feature after power loss/return .
• Temperature deviation alarm.
• Over temperature set point alarm.
• Over current protection alarm.
• Independent Over-temperature protection meets DIN 12880 International standard requirements provides you double protection.

Key Attributes

Cu ft.	2.4-8.9(model dependent)
Max Temp	80°C
Min Temp	-10°C
Temp Uniformity	± 1°C at 25°C
Interior Outlets	No
Alarms	Yes
Datalogging Capable	No
Warranty (years)	2
Site	Floor
Weight (lbs)	187, 220, 264

Manufacturer Specifications

Model	BIC-60	BIC-120	BIC-250
Chamber Volume	2.4 cu ft (68 liters)	4.24 cu ft (120 liters)	8.9 cu ft (252 liters)
Temperature Range	14~176℉	14~176℉	14~176℉
Display Resolution	0.1	0.1℉	0.1
Temperature Resolution	0.1℉	0.1	0.1℉
Temperature Uniformity	±1.8℉	±1.8℉	±1.8℉
Temperature Variation	High:±0.54℉	High:±0.54℉	High:±0.54℉
	Low:±0.9℉	Low:±0.9℉	Low:±0.9℉
Max # of Shelves	10	14	16
Shelves Included	3	3	3
Max. Load per Shelf	20Kg	20Kg	20Kg
Timing Range	1~5999mins	1~5999mins	1~5999mins
Internal Dimension (WxHxD)	15.8 x 17.7 x 15.0 inch	19.7 x 23.6 x 15.8 inch	23.6 x 27.6 x 23.6 inch
External Dimension (WxHxD)	21.5 x 39.4 x 26.0 inch	26.0 x 45.3 x 27.0 inch	27.4 x 29.2 x 34.8 inch
Net Weight	85Kg	100Kg	120Kg
Electrical Requirement	AC120V,60Hz	AC120V,60Hz	AC120V,60Hz
Power	1300W	1500W	1700W
110V Cat. No.	BLC15060U	BLC150120U	BLC150250U
220V Cat. No.	BLC15060C	BLC150120C	BLC150250C

FAQ

Do the BIC Cooling Incubators have a port hole?

Yes, there is a 1" port on the BIC cooling incubators.



Can you program a temperature ramp into the BIC Cooling Incubators?

No. If you are using the programmability functions, the incubator will get to the setpoint temperature as quickly as possible then remain at that temperature for the duration of the cycle.

If your application requires a refrigerated and heated incubator capable of performing temperature ramps, we suggest considering the BMT Friocell.
