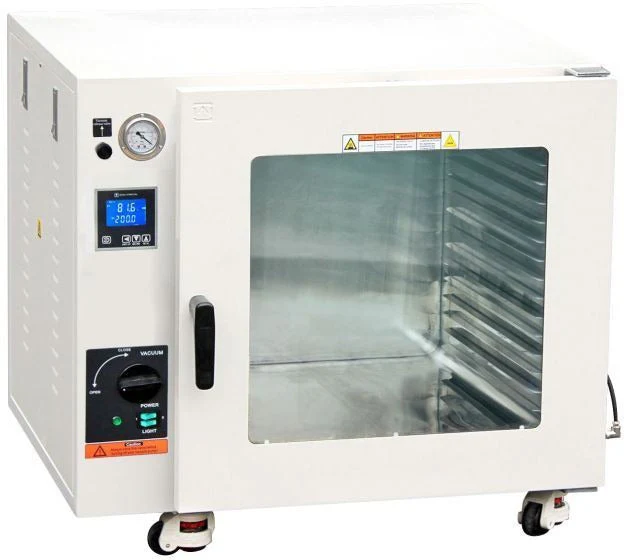

Ai ECO Vacuum Drying Ovens With LED Lights

Overview

Digital desktop vacuum ovens feature an easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber. Vacuum ovens go through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving facilities.

Features:

• Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
• 3rd gen LCD low proportional gain temperature controllers keep your oven temperature accurate.
• Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
• Dual layer observation window with 1/2" tempered safety glass.
• 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
• Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
• Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
• A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
• All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
• Guaranteed US based phone and email assistance within 30 minutes from our engineers.
• 2-year warranty and lifetime US-based parts and service support.
• Manufactured in accordance with:
• ISO 9001:2000
• ISO 12100-1:2003, ISO 12100-2:2003
• EN1050:1996, EN294:1992, EN60204-1:2006
• CE

The 3.2 cu ft model includes Ai internal shelf heating technology, each non-adjustable has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.

Attention: Before initial use, run oven at 200C/400F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process. NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.

Key Attributes

Max Temperature	150°C
Max Capacity	0.9, 1.9, 3.2 or 5 cu ft
Air Movement	Vacuum
Electrical	110V or 220V
Warranty	2 year

Manufacturer Specifications

Model	0.9 Cu ft	1.9 Cu ft	3.2 Cu ft	5 Cu ft
Electrical requirements	110V or 220V ±10%, 60Hz, 1-PH, 1,500 watts	110V +/-10% 60Hz 1-PH 13.6A or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts	110V +/-10% 60Hz 1-PH 13.6A, or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts	110V or 220V +/-10% 50/60Hz 1-PH, 3,000 watts
Chamber	Size: 12 x 12 x 11"	Size: 16.5 x 14.5 x 14"	Size: 18 x 18 x 18"	Size: 19.75 x 21.5 x 19.75"
	Material: Stainless steel	Material: Stainless steel	Material: Stainless steel	Material: Stainless steel
	Capacity: 0.9 cubic foot	Capacity: 1.9 cubic foot	Capacity: 3.2 cubic feet	Capacity: 5.0 cubic feet
Heater	3-sided heating (left 400W, right 400W, bottom 700W)	3-sided heating (left 400W, right 400W, bottom 700W)	500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient and uniform heating.	3-sided heating (left 800W, right 800W, bottom 1,400W)
Temperature control	Controller: 3rd gen low proportional gain, microcomputer PID controlled	Controller: 3rd gen low proportional gain, microcomputer PID controlled	Controller: 3rd gen low proportional gain, microcomputer PID controlled	Controller: low proportional gain, microcomputer PID controlled
	Range: ambient to 150°C	Range: ambient to 150°C	Range: ambient to 150°C	Range: ambient to 150°
	Display units: Fahrenheit or Celsius	Display units: Fahrenheit or Celsius	Display units: Fahrenheit or Celsius	Display units: Fahrenheit or Celsius
	Uniformity: +/- 5% of setpoint	Uniformity: +/- 5% of setpoint	Uniformity: +/- 5% of setpoint	Uniformity: +/- 7% of setpoint
	Dwelling timer range: 1 to 9999 minutes	Dwelling timer range: 1 to 9999 minutes	Dwelling timer range: 1 to 9999 minutes	Dwelling timer range: 1 to 9999 minutes
	Warm-up time to 480°F: 80 minutes (Approx.)	Warm-up time to 480°F: 90 minutes	Warm-up time to 100°F: 35 minutes; Warm-up time to 480°F: 60 minutes	.
Vacuum	Ultimate vacuum level: better than 500 microns/millitorrs	Ultimate vacuum level: better than 500 microns/millitorrs	Ultimate vacuum level: better than 500 microns/millitorrs	Ultimate vacuum level: better than 500 microns/millitorrs
	(may vary based on your altitude, click here to learn more)	(may vary based on your altitude, click here to learn more)	(may vary based on your altitude, click here to learn more)	(may vary based on your altitude, click here to learn more)
	Mechanical gauge range: 0 to 30 inch mercury	Mechanical gauge range: 0 to 30 inch mercury	Mechanical gauge range: 0 to 30 inch mercury	Mechanical gauge range: 0 to 30 inch mercury
	Vacuum port: KF25 flange x 1	Vacuum port: KF25 flange x 1	Vacuum port: KF25 flange x 1	Vacuum port: KF25 flange x 1
	Vent port: 1/4" ball valve	Vent port: 1/4" ball valve	Vent port: 1/4" ball valve	Vent port: KF25 flange x 1

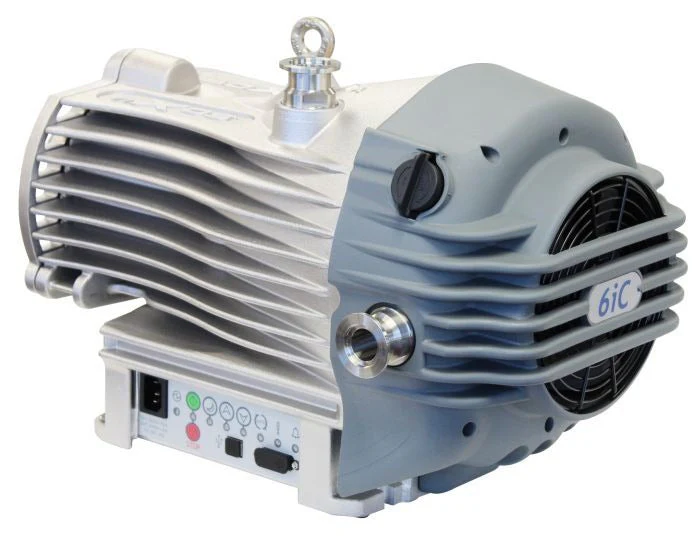

	Vacuum pump: Sold separately	Vacuum pump: Sold separately	Vacuum pump: Sold separately	Vacuum pump: Sold separately
Weight	Unit: 85 Lbs, shipping: 170 Lbs	Unit: 135 Lbs, shipping: 240 Lbs	Unit: 240 Lbs, shipping: 380 Lbs	Unit: 390 Lbs, shipping: 600 Lbs
Dimensions (WxDxH)	Unit: 23.4 x 17.25 x 19" With handle and vacuum port: 23.4 x 20 x 19"	Unit: 28 x 20 x 21.75" With handle and vacuum port: 28 x 23 x 21.75"	Unit: 30.5 x 24 x 29"	Unit: 32.25 x 28 x 30"
	Shipping: 29 x 29 x 29"	Shipping: 32 x 28 x 29"	Shipping: 36 x 33 x 35"	Shipping: 38 x 37 x 38"
Shelves	Included with oven purchase: 4 aluminum slide-in shelves	Included with oven purchase: 5 aluminum slide-in shelves	Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25" (WxD) each	Shelf size: 19.25 x 21 x 0.5" (WxDxH)
	Capacity: 8 shelves max.	Capacity: 10 shelves max.	Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25" (WxDxH)	Material: aluminum
	Style: pan-shape	Style: pan-shape	Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2	Style: pan-shape
	Size: 11.5 x 11.25"	Size: 16 x 14.25 inches	Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2	Capacity: 14 shelves max.
	Maximum area: 129.4 x 8 = 7 sq ft or 1035 inch2	Total area: 228 x 10 = 16 sq ft or 2,280 inch2	Distance between shelves (without stackable shelves): 4.75 inches	Comes standard with oven purchase: 7 shelves
	Distance between shelves: one inch	Distance between shelves: one inch	Distance between shelves (with 3 stackable shelves): 2.25 inches	Total area with 14 shelves: 39.3 sq ft or 5660 sq inch
	.	.	Max. load capacity per shelf: 20 Lbs	Distance between the most adjacent shelves: 1.25"
Door gasket material	Silicone or Viton	Silicone or Viton	Silicone (standard), Viton (optional)	Silicone or Viton
Observation window	1/2" tempered safety glass	1/2" tempered safety glass	1/2" tempered safety glass	1/2" tempered safety glass
Safety	Built-in circuit breaker	Built-in circuit breaker	Built-in circuit breaker	Built-in circuit breaker
	Overheat shutoff protection	Overheat shutoff protection	Overheat shutoff protection	Overheat shutoff protection
	.	.	.	Secondary over-temp protection dial
In-door lights	White LED	White LED	White LED	White LED (pre-installed)
Warranty	1 year	1 year	1 year	1 year
Compliance	CE	CE	CE	.
