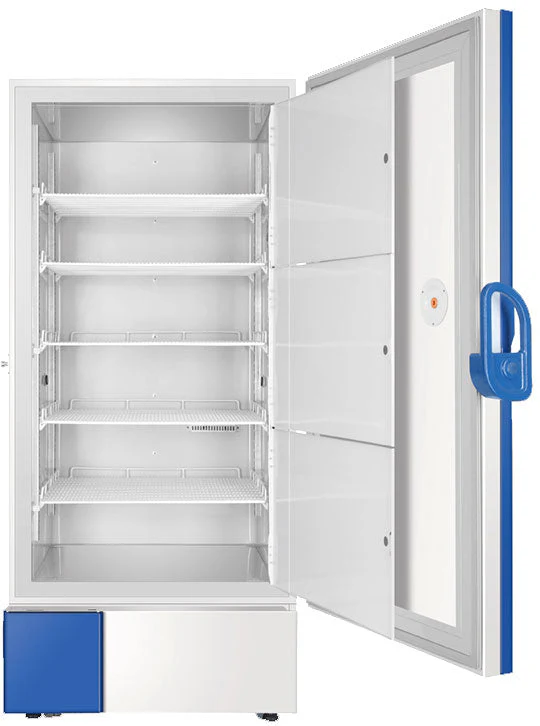

Ai EasyChill 29 Cu Ft -30°C Upright Freezer

Overview

The new Ai EasyChill series -30°C 29 Cu Ft freezers works on 110V to 230V power source, it is perfect for large storage of sample and products. Our unique compressor design offers you speedy cooling, great temperature uniformity inside the chamber, energy efficiency, and extremely quite operation.

Features:

• UL certified and great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum
• Energy saving with variable speed inverter technology. Optimized refrigeration system with a high efficiency inverter compressor to reduce energy consumption.
• Excellent temperature uniformity in a large storage space. Features built-in evaporator, large storage space and adjustable shelf, providing faster temperature pulldown and a better temperature uniformity of set point ±3°C
• Low noise. Sound reduction design lowers the sound level to 37 dB(A) at 220V/50Hz
• Environment friendly. HC refrigeration system contains zero chlorine and fluorine, which is better for the environment. Urethan foam insulation complies with European ROHS regulation.
• Microprocessor temperature controller, LED display, display cabinet at 0.1°C resolution.
• High efficient insulation and double sealing design improves temperature performance, energy efficiency, and system reliability.
• Built in lock and padlock features

Please note: This unit is NOT designed to be used on a mobile platform.

Key Attributes

Min. Temperature	-10°C to -30°C
Cubic Feet	28.9
Alarms	Yes
Controls	Digital
Defrost	Manual
Electrical	115V-230V (±10%) auto-detect, 50/60Hz 1-Phase 470W
Warranty(years)	1-year
Weight (lb)	463
Width (in)	39
Depth (in)	37.5
Height (in)	78



Manufacturer Specifications

Model	E29
Electrical requirements	115V-230V (±10%) auto-detect, 50/60Hz 1-Phase 470W
Performance	Temperature range: -10°C to -30°C Time from ambient to -30°C: 2.5 hours Uniformity: ±3°C Time from -30°C to 0°C with door closed (ambient 25°C): 6 hours
Controller	Microprocessor-controlled, displays chamber temperature, ambient temperature and input voltage
Compressor	Cooling type: direct cooling Defrost mode: manual Refrigerant: R290
Chamber	Dimensions: 29.5 x 29.7 x 57.5" (WxDxH) Material: coated steel Volume: 28.9 Cu Ft
Shelf	Five
Door and gasket	Inner door: three Outer door: one, lockable door, dual sealing gaskets
Working environment	- Temperature: 10°C to 32°C (ideal temperature: 18°C to 25°C) - Humidity: <85% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system	48 hours (for controller display and alarms only)
Access port	Two
Noise level	37 dBA
Unit/shipping weight & dimensions	463 Lbs / 625 Lbs 39 x 37.5 x 78"/ 41 x 42 x 83"(WxDxH)
Safety	Compressor over-temp protection Compressor power surge delay protection External door with lock Door open, power failure, sensor error, low battery, chamber high/low temperature, and high ambient temperature alarms
Compliance	UL 61010-1 CSA C22.2
Warranty	One year
