Original: $6,290.00
-70%$6,290.00
$1,887.00The Story
Overview

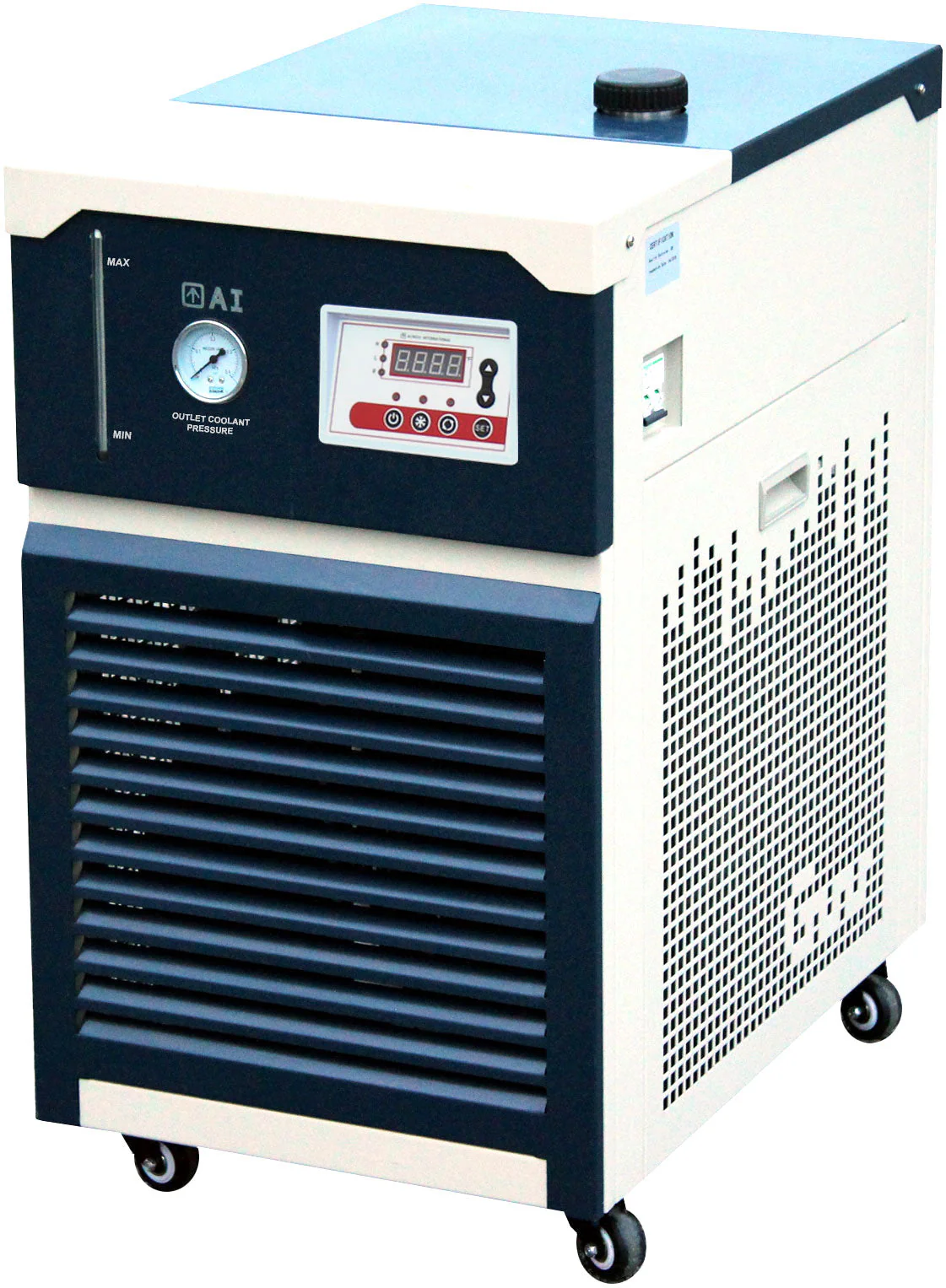

Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C30 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
Features:
- ETL tested to UL and CSA standards
- No dry ice or liquid nitrogen needed
- Advanced PID digital temp controller
- Built-in chilling fluid filter protects the recirculating pump and prevent blockage
- All steel construction for durability
- Eco-friendly R410A refrigerant
- Cost saving as the water consumption is completely eliminated
- Built-in casters for mobility
- Insulated tubing included
- Recommended for 10L rotary evaporators
Please Note: -30°C/-22°F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
Key Attributes
| Type | Chiller |
| Incubation | No |
| Refrigeration | Yes |
| Temp Range (°C) |
Ambient to -30°C (No load) |
| Capacity (L) | 17 L |
| Circulation | External Only |
| Brand | Across International |
| MaxFlow Rate (l/min) | 20 |
| Temp Stability (°C) | ±2°C |
| Timer | Yes |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | No |
| Tank Material | Stainless Steel |
| Sample Agitation | No |
| Media Racks Available | No |
| Warranty (years) | 1 |
| Weight (lb) | 175 |
| Width (in) | 26.5 |
| Depth (in) | 18 |
| Height (in) | 30.5 |
Manufacturer Specifications
| Model | C30-17-10L |
| Temperature range | Ambient to -30°C (No load) |
| Electrical requirements | 220V 60Hz 1-PH, 1200 watts (Not compatible with 50Hz power) |
| Cooling capacity (Assuming working environment 25°C/77°F) |
@ 32°F/0°C: 1,750W @ 14°F/-10°C: 1,100W @-4°F/-20°C: 700W @-22°F/-30°C: 300W |
| Compressor | Make: Panasonic Power: 208-230V 60Hz 1-PH Number of compressor: one Refrigerant: R410A |
| Recirculating pump | Type: Centrifugal Output: 100 watts Pumping speed: 20 L/min or 5.3 gallon/min Maximum head: 20 feet or 6 meter Maximum pressure: 5.8 psi |
| Coolant outlet pressure | Displayed on the built-in mechanical pressure gauge |
| Reservoir | Material: Type 304 stainless steel,polished Chilling fluid connection: 3/8" hose barb x 2 Capacity: 17 liters or 4.5 gallons |
| Temperature controller |
Type: Digital microprocessor PID controlled |
| Temperature sensor type |
Pt100 |
| Housing | Powder coated type 42 stainless steel |
| Recommended coolant | For 50°F/10°C or higher: distilled water Between50°F/10°C and -22°F/-30°C: 50% ethylene glycol + 50% distilled water |
| Working environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters | Four |
| Unit/shipping dimensions | 26.5 x 18 x 30.5" / 32 x 23 x 40" (WxDxH) |
| Unit/shipping weight | 175 Lbs / 235 Lbs |
| Safety | Compressor over-temp protection Compressor delay start protection Short circuit and ground protection Over-current protection |
| Recommended for rotary evaporators | Ai 10L SolventVap rotary evaporators |
| Warranty | One year |
| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3 |
