Overview

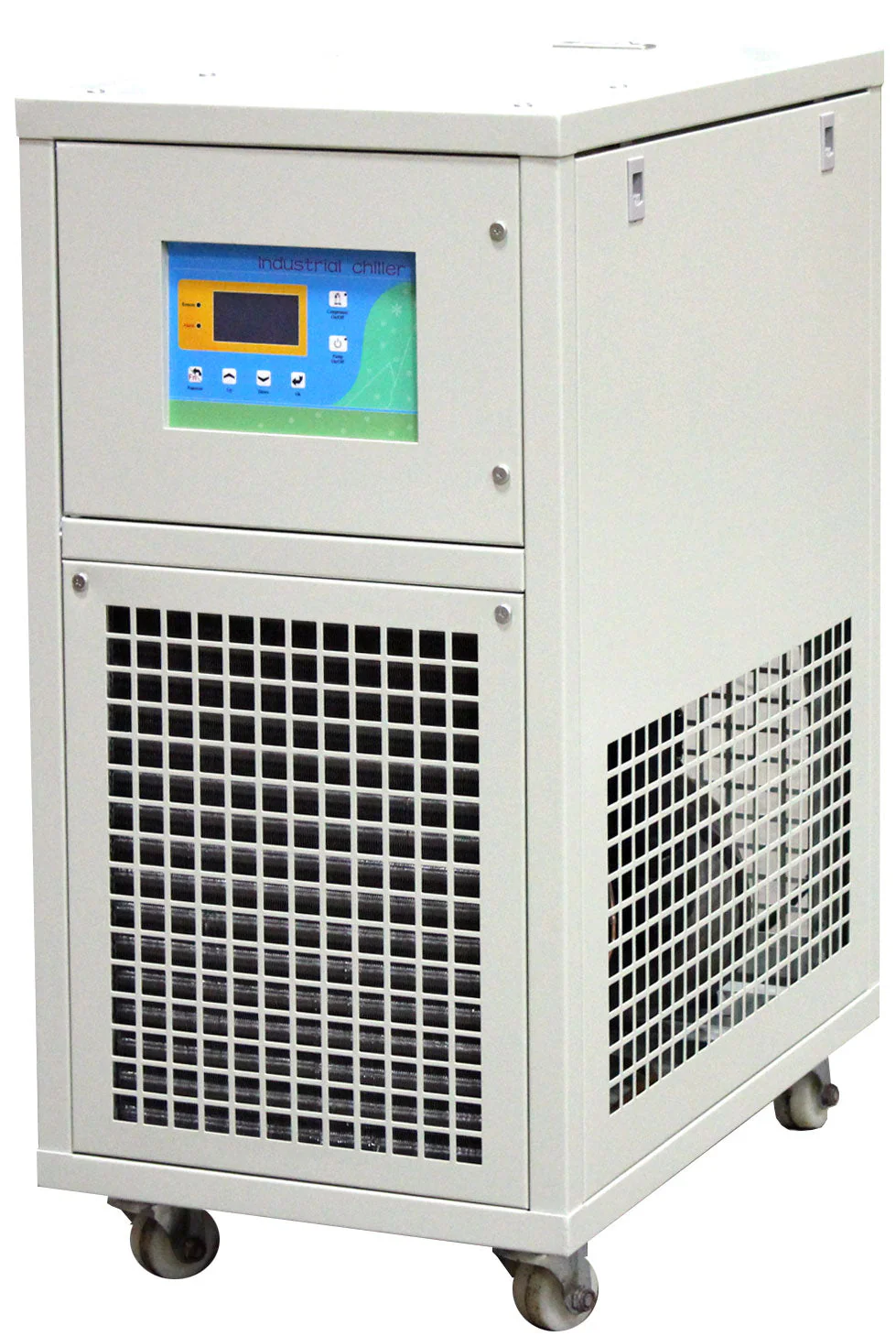

Ai WAC-1 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for IH series induction heaters. These chillers have built-in stainless steel tank and water pump for durability and rust-free operation. two sets of water manifolds included for immediate use.
Key Attributes
| Type | Chiller |
| Incubation | No |
| Refrigeration | Yes |
| Temp Range (°C) |
10 to 25°C (No load) |
| Capacity (L) | 17 L |
| Circulation | External Only |
| Brand | Across International |
| MaxFlow Rate (l/min) | 33 |
| Temp Stability (°C) | ±2°C |
| Timer | Yes |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | No |
| Tank Material | Stainless Steel |
| Sample Agitation | No |
| Media Racks Available | No |
| Warranty (years) | 1 |
| Weight (lb) | 200 |
| Width (in) | 29 |
| Depth (in) | 17 |
| Height (in) | 35 |
Manufacturer Specifications
| Model | WAC-1 |
| Input power | 110 VAC 60 Hz single-phase (1PH) 1460 watts |
| Nominal cooling capacity | 1935 kcal/h |
| Nominal cooling capacity is according to: Inlet chilled fluid temperature: 12°C Outlet chilled fluid temperature: 7°C Inlet cooling air temperature: 30°C Outlet cooling air temperature: 35°C |
|
| Compressor | Make:Panasonic, UL Listed Power: 110VAC 60Hz 1-PH, LRA42, thermally protected Refrigerant: R410A (800g) Number of compressor installed: one |
| Water pump | Make: LX (CMFL2-20-A-W-G-BABE) Power: 110VAC 60Hz 1-PH 370 watts 3.7A 3450 rpm IP55 Flow rate: 528 gallons per hour Max pressure: 10 bar. H(max); 20.5m, H(n): 16m |
| Reservoir volume | 4.5 gallons |
| Cooling fan | Make: Kunli (YWF A2S-300S-5DIIIA05) Power: 110VAC 60Hz 1-PH 155 watts 1.35A 2700rpm 16uF/500V IP44 Flow rate: 70,000 cu ft per hour Number of fan installed: one |
| Temperature accuracy | +/- 2 °C |
| Recommended coolant | Distilled water |
| Water inlet & outlet on chiller |
KF40 flange |
| Manifold | Inlet: KF40, outlet: 8mm quick connect with ball valve |
| Unit/shipping weight | 200 Lb / 260 Lb |
| Unit/shipping dimensions | 29 x 17 x 35" / 36 x 21 x 42" (DxWxH) |
| Safety | Over current and compressor thermal protection |
| Working environment | Temperature range of chilled fluid: 5°C - 35°C Temperature difference of chilled fluid between inlet and outlet: 3°C - 8°C.It is better to use the chiller while the ambient temperature at or below 35°C |
| Compatible Ai induction heaters | High frequency 4kW, 6.6kW Mid frequency 15kW, 25kW Low frequency 15kW |
| CE compliant | Yes |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Overview
Ai WAC-1 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for IH series induction heaters. These chillers have built-in stainless steel tank and water pump for durability and rust-free operation. two sets of water manifolds included for immediate use.
Key Attributes
| Type | Chiller |
| Incubation | No |
| Refrigeration | Yes |
| Temp Range (°C) |
10 to 25°C (No load) |
| Capacity (L) | 17 L |
| Circulation | External Only |
| Brand | Across International |
| MaxFlow Rate (l/min) | 33 |
| Temp Stability (°C) | ±2°C |
| Timer | Yes |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | No |
| Tank Material | Stainless Steel |
| Sample Agitation | No |
| Media Racks Available | No |
| Warranty (years) | 1 |
| Weight (lb) | 200 |
| Width (in) | 29 |
| Depth (in) | 17 |
| Height (in) | 35 |
Manufacturer Specifications
| Model | WAC-1 |
| Input power | 110 VAC 60 Hz single-phase (1PH) 1460 watts |
| Nominal cooling capacity | 1935 kcal/h |
| Nominal cooling capacity is according to: Inlet chilled fluid temperature: 12°C Outlet chilled fluid temperature: 7°C Inlet cooling air temperature: 30°C Outlet cooling air temperature: 35°C |
|
| Compressor | Make:Panasonic, UL Listed Power: 110VAC 60Hz 1-PH, LRA42, thermally protected Refrigerant: R410A (800g) Number of compressor installed: one |
| Water pump | Make: LX (CMFL2-20-A-W-G-BABE) Power: 110VAC 60Hz 1-PH 370 watts 3.7A 3450 rpm IP55 Flow rate: 528 gallons per hour Max pressure: 10 bar. H(max); 20.5m, H(n): 16m |
| Reservoir volume | 4.5 gallons |
| Cooling fan | Make: Kunli (YWF A2S-300S-5DIIIA05) Power: 110VAC 60Hz 1-PH 155 watts 1.35A 2700rpm 16uF/500V IP44 Flow rate: 70,000 cu ft per hour Number of fan installed: one |
| Temperature accuracy | +/- 2 °C |
| Recommended coolant | Distilled water |
| Water inlet & outlet on chiller |
KF40 flange |
| Manifold | Inlet: KF40, outlet: 8mm quick connect with ball valve |
| Unit/shipping weight | 200 Lb / 260 Lb |
| Unit/shipping dimensions | 29 x 17 x 35" / 36 x 21 x 42" (DxWxH) |
| Safety | Over current and compressor thermal protection |
| Working environment | Temperature range of chilled fluid: 5°C - 35°C Temperature difference of chilled fluid between inlet and outlet: 3°C - 8°C.It is better to use the chiller while the ambient temperature at or below 35°C |
| Compatible Ai induction heaters | High frequency 4kW, 6.6kW Mid frequency 15kW, 25kW Low frequency 15kW |
| CE compliant | Yes |
