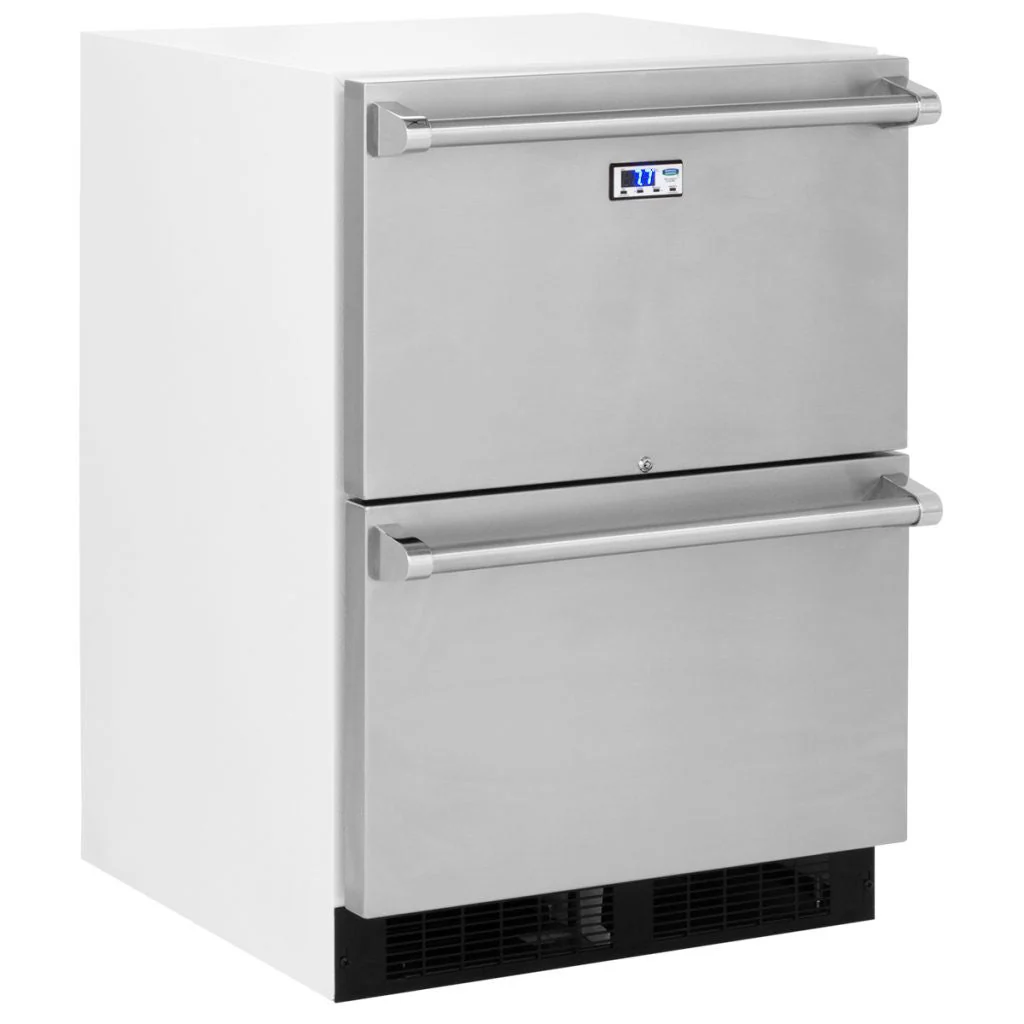

Marvel Scientific 24" General Purpose Refrigerator Drawers

Overview

Marvel Scientific’s undercounter configuration allows for easy use even from a seated position. Two deep, three-fourths extension drawers store nearly all types of containers and provide superior visibility and access – no more reaching to the back of a crowded shelf. Also features bright interior lighting, automatic defrost, hidden touchpad controls with LED digital display and heavy duty drawer slides for full loads. Box-Style drawer fronts come in white or Stainless Steel finish.

Standard Features:

• 2 extra-large, full-extensions drawers made of easy-to-sanitize and stain-resistant stainless steel
• Insulated thermal-efficient cabinet and drawer fronts ensures optimum efficiency and preservation
• Easy-to-grab full-width handles
• Cam-assisted drawer-close system to reduce “drawer-ajar“ events
• Front vented through the toe space grill for true built-in installations
• 1″ diameter probe port in rear cabinet wall (standard)
• Bright energy efficient white LED interior lighting for easy content viewing
• Extra-long, jacketed commercial power cord with hospital grade plug to meet stringent hospital and clinical use standards
• CSA Approved and warrantied for commercial use
• Recommended ambient temperature 15.6°C to 18.3°C (65°F to 90°F)
• One lock secures both drawers
• 4 leveling legs for up to 1″ height adjustment

Reliable Temperature Stability & Energy Efficiency

• Advanced forced air evaporator system design with optimized interior cooling air distribution
• Powerful compressor for fast pull-down time and temperature recovery after door opening or content loading
• New energy efficient drawer front gasket system seals in the cold, reducing energy consumption
• Automatic defrost without supplemental heat

MicroSentry™ II Temperature Control

• Drawer-front mounted control for easy access and monitoring
• Accurate electronic temperature control of contents within ±2°C of set point
• Large, easy-to-read digital temperature display with resolution to 0.1°C
• User-selectable temperature set point between +2° and +8°C, factory preset to +4°C
• User-selectable high and low temperature alarm values
• User selectable alarm delay time period
• Visual and audible alarms for over temperature, under temperature, and “drawer-ajar” events
• Alarm silence and automatic ring back function
• Keypad lock-out to prevent unintended control inputs
• Basic high and low temperature logging with reset capability
• Visual diagnostic error codes

NOTE: Marvel Scientific refrigerators and freezers are manufactured at the time the order is placed and then put through rigorous testing to ensure quality before they are released. A lead time of approximately 2-3 weeks should be expected

Key Attributes

Min. Temperature	2° to 8° C
Cubic Feet	4.7
Alarms	Yes
Controls	Digital
Defrost	Auto
Electrical	120V/60Hz/15Amps
Warranty (years)	1
Weight (lb)	135
Width (in)	33 3/4
Depth (in)	23 7/8
Height (in)	23 23/32



Manufacturer Specifications

Temperature Range	2° to 8° C
Volume	4.7 cubic feet, 133 liters
Exterior Dimensions: H x W x D	Inches: 23 7/8" W x 33 3/4" H x 23 23 D
