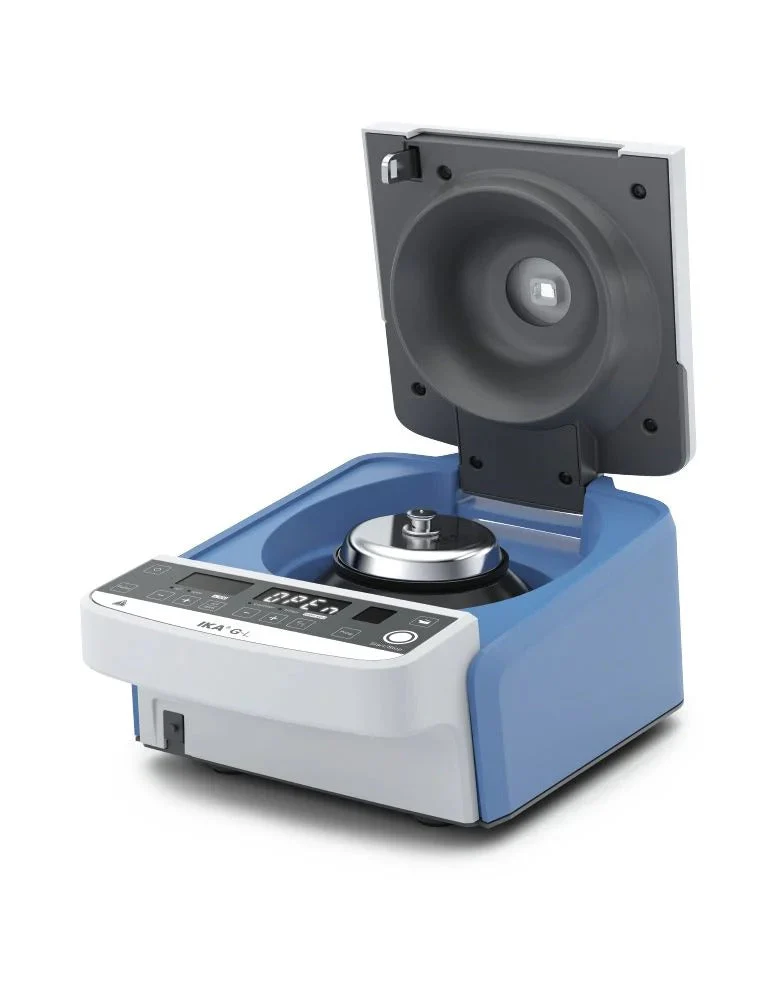

IKA G-L Midi Centrifuge

Overview

Separating substances at medium rotational speeds: IKA G-L is the ideal midi centrifuge for all types of separation processes such as those found in molecular biology. It can be used with standard 1.5/2 ml vessels, as well as with PCR strips. The cover opens automatically at the press of a button.

Features:

• Safe use - The centrifuge is fitted with a metal cover and does not start until it is firmly closed.
• State-of-the-art display - The completely intuitive navigation is carried out through a membrane keypad. This allows an easy setting of speed, rotational speed or programs.
• Powerful motor - With a rotational speed of up to 15,700 rpm, the centrifuge is fitted with a high-performance motor.
• Broad scope of delivery - Metal rotor and cover for 12 vessels, with a capacity of 1.5/2 ml, are already included in the scope of delivery.
• Includes:
• IKA G-L
• Metal rotor set 12 x 1.5/2.0 ml
• Screwdriver for opening the lid in emergency
• USB cable

Key Attributes

RPM	800 - 15,700
RCF	16,500
Refrigeration	No
Capacity	12 x 1.5/2.0 mL
Warranty (years)	2

Manufacturer Specifications

Capacity 12 x 1.5/2.0 ml
Pemitted density 1.2 kg/dm3
Centrifugal acceleration 16500 G
Kinetic energy max. 940 Nm
Motor rating input 65 W
Speed range 800 - 15700 rpm
Speed deviation 2.5 %
Setting accuracy speed ±100 rpm
Timer yes
Timer display 7 segment LED
Unbalance sensor yes
Quick stop yes
Cover opening automatic
Rotor exchange without tool
Protective cover yes
Noise level 55 dB
Acceleration time to max. speed 17 s
Breaking time from max. speed 18 s
Display changeable rpm <-> rcf yes
Dimensions (W x H x D) 200 x 140 x 280 mm
Weight 3.9 kg
Permissible ambient temperature +5 - +40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
USB interface yes
Voltage 115 V
Frequency 50/60 Hz
Power input 92 W
Power input standby 3 W
