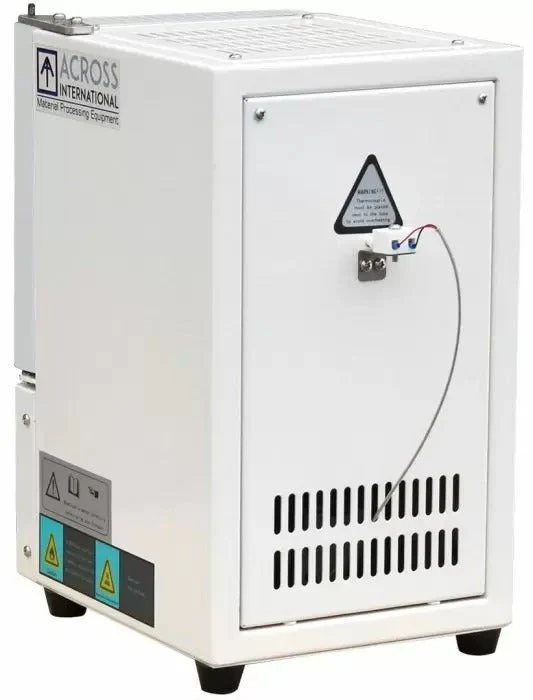

Ai 1050 Compact Muffle Furnace

Overview

For Dental, Dentistry Cast, Ceramic Works, Jewelry Treatment. CF1100 4x4x4" compact muffle furnaces with 30 segments programmable up to 1050C.

Features:

• Great for small sample heating in research
• Chamber built with high quality Mitsubishi (Japan) alumina ceramic
• Compact, lightweight and ideal for benchtop use & installation in a glove box
• CE certified & supported by our award-winning team 9am-9pm EST
• All our furnaces are CE compliant.

Please note: Wire heating element DOES NOT have warranties. All Ai furnaces tested before shipment. If you believe there are imperfections, please contact.

Key Attributes

Max Temperature	1050°C
Max Capacity	0.037 cu ft
Air Movement	N/A
Electrical	110V 60hz 700 watts
Warranty	1 year

Manufacturer Specifications

Model	CF1100.4.4.4
Electrical requirements	AC 110V 60hz 700 watts
Chamber dimensions (DxWxH)	4 x 4 x 4"
Chamber usable space (DxWxH)	3.75 x 4 x 3.25" (with cushion block)
Min. working temperature	Ambient
Max. working temperature	1050°C
Max. constant working temperature	950°C
Refractory lining	Mitsubishi (Japan) 1500 grade fiber alumina
Heating element	Resistance coil wire
Thermocouple type	K
Temperature controller	UDIAN 30-segment, single PID
Max heating rate	30°C / min
Temperature accuracy	+/- 1°C (+/- 1.8°F)
Unit dimensions (DxWxH)	10 x 8 x 15"
Shipping dimensions (DxWxH)	15 x 14 x 21"
Unit weight	25 Lb
Shipping weight	40 Lb
Compliance	CE (Standard)
Warranty	1 year
