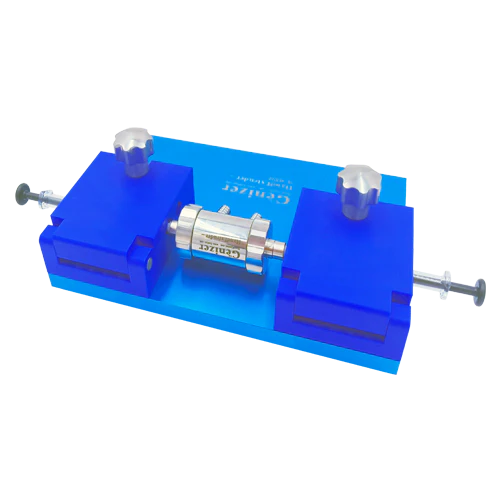

Genizer Liposome HandExtruders

The HandExtruder is a manually powered extruder designed for the formulation of 0.25mL-2.0mL liposome and lipopolyplex with small samples. The sample is passed back through the membrane by being pushed back and forth between two syringes. Homogeneous samples can be produced quickly and easily in minutes; typically 5-10 passes are sufficient to produce a sample with uniform liposome size. The HandExtruder offers minimal dead-volume, is easy to clean and is suitable for sterilization. Temperature control is available

Features:

• Low dead volume
• HandExtruder-1mL-RT can control the temperature of extrusion

Catalog No.	HandExtruder-1mL	HandExtruder-1mL-RT
Description	Liposome hand extruder	Liposome hand extruder with thermo-jacket
Cooling	None	Yes
Dimensions	23cm×17cm×13cm	23cm×17cm×13cm
Weight	2kg	2kg
Application	Liposome formulation	Lipids with high transition temperature or heat-sensitive
Min. Sample Size	0.25mL
Max. Pressure	700 psi
Temperature Limit	80ºC (176ºF)
Power Type	Manual
Nano-membrane	19mm polycarbonate membrane
Cleaning	Flush to clean
Sterilization	Whole unit autoclavable
Standard Features
Parts	1) Liposome HandExtruder 2) 10 pieces of 100nm/400nm/other size membrane
Feed Reservoir	1.0 mL gas-tight syringe
Collector Reservoir	1.0 mL gas-tight syringe
Nano Membrane	100nm 19mm track-etched polycarbonate membrane
Compatibility	Parts are compatible with Liposofast in Avestin
Product Material	316L stainless steel, viton
Material Standard	Sanitary grade
Warranty	1 year against any manufacturing defects
Option Features
Parts	Stabilizer holder for HandExtruder
Feed Reservoir	0.25/0.5/1.0/2.5mL gas-tight syringe
Collector Reservoir	0.25/0.5/1.0/2.5mL gas-tight syringe
Nano Membrane	30, 50, 80, 100, 200, 400, 800nm, 1000nm, 2μm, 5μm, 10μm, 20μm, 30μm 19mm track-etched membrane
Syringe Type	Gas-tight syringe with protective film
