IKA Ministar Overhead Stirrers

Overview

The new MINISTAR series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee.

Features:

• Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
• State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
• Clear display for all essential information at a glance
• Integrated timer / counter for the control of kinetic sensitive reactions and reminders
• USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
• Intuitive and simple handling; touch-sensitive surface for long service life
• Temperature reading on display
• Chemical resistant housing
• Key lock function
• Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity

MINISTAR 20 control - “The Fast One” in the high-tech mini class, perfect for low viscosities!

• Viscosities up to 10,000 mPas and volumes of up to 15 l
• Continuously adjustable speed between 0/30 – 2,000 rpm

MINISTAR 40 control -“The Universal” in the high-tech mini class, reaches up to 1000 RPM!

• Viscosities up to 30,000 mPas and volume of up to 25 l
• Continuously adjustable speed between 0/30 – 1,000 rpm

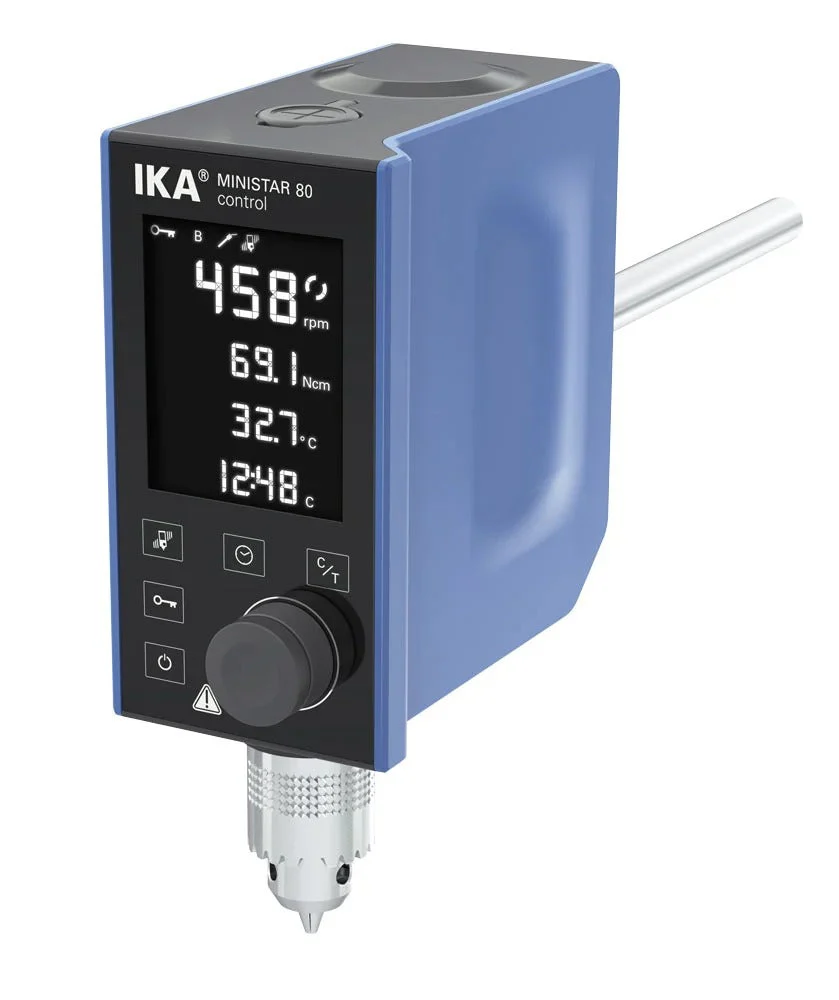

MINISTAR 80 control -“The Power Pack” in the high-tech mini class, small and as strong as an ox, reaches up to 500 RPM!

• Viscosities up to 60,000 mPas and volumes of up to 50 l
• Continuously adjustable speed between 0/30 – 500 rpm

Key Attributes

Maximum volume (L):	15, 20, or 50 L
Minimum Volume (L):	N/A
Speed max (rpm):	2000, 1000, or 500
Speed min (rpm):	30
Max temperature (◦C):	N/A
Plate:	N/A
Plate material:	N/A
Torque max (Ncm):	20, 40, or 80
Controls:	Digital
Timer:	Yes
Programmable:	No
Reverse rotation:	No
Warranty (years):	2
Weight (lbs):	3.79
Dimensions Width (in):	2.8
Dimensions Height (in):	7.6
Dimensions Length (in):	6.0



Manufacturer Specifications

Model	MINISTAR 20 control	MINISTAR 40 control	MINISTAR 80 control
Stirring quantity max. per stirring position (H2O)	15 l	25 l	50 l
Motor rating input	60 W	60 W	60 W
Motor rating output	46 W	46 W	46 W
Motor principle	Brushless DC	Brushless DC	Brushless DC
Speed display	LCD	LCD	LCD
Speed range	0/50 - 2000 rpm	0/30 - 1000 rpm	0/30 - 500 rpm
Viscosity max.	10000 mPas	30000 mPas	60000 mPas
Output max. at stirring shaft	42 W	42 W	42 W
Permissible ON time	100%	100%	100%
Torque max. at stirring shaft	20 Ncm	40 Ncm	80 Ncm
Speed control	Turning knob	Turning knob	Turning knob
Setting accuracy speed	±1 rpm	±1 rpm	±1 rpm
Deviation of speed measurement n > 300rpm	±3 %	±1 %	±1 %
Stirring element fastening	chuck	chuck	chuck
Connection for ext. temperature sensor	PT1000	PT1000	PT1000
Temperature display	yes	yes	yes
Chuck range diameter	0.5 - 8.2 mm	0.5 - 8.2 mm	0.5 - 8.2 mm
Hollow shaft, inner diameter	8.5 mm	8.5 mm	8.5 mm
Hollow shaft (push-through - when stopped)	yes	yes	yes
Fastening on stand	extension arm	extension arm	extension arm
Extension arm diameter	13 mm	13 mm	13 mm
Extension arm length	160 mm	160 mm	160 mm
Torque display	yes	yes	yes
Speed control	electronic	electronic	electronic
Nominal torque	0.2 Nm	0.4 Nm	0.8 Nm
Torque measurement	trend	trend	trend
Deviation of torque measurement I	±3 Ncm	±4 Ncm	±8 Ncm
Timer	yes	yes	yes
Timer display	LCD	LCD	LCD
Time setting range	0 - 6000 min	1 - 6000 min	0 - 6000 min
Temperature measuring range	-10 - 350 °C	-10 - 350 °C	-10 - 350 °C
Temperature measurement resolution	0.1 K	0.1 K	0.1 K
Accuracy of temperature measurement	±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K	±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K	±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
Limit deviation temperature sensor	≤ ± (0.15 + 0.002xITI) K	≤ ± (0.15 + 0.002xITI) K	≤ ± (0.15 + 0.002xITI) K
Housing material	alu-cast coating / thermoplastic polymer	alu-cast coating / thermoplastic polymer	alu-cast coating / thermoplastic polymer
Communication distance (depend onbuilding) max.	150 m	150 m	150 m
Dimensions (W x H x D)	70 x 193 x 154 mm	70 x 193 x 154 mm	70 x 193 x 154 mm
Weight	1.56 kg	1.72 kg	1.72 kg
Permissible ambient temperature	5 - 40 °C	5 - 40 °C	5 - 40 °C
Permissible relative humidity	80%	80%	80%
Protection class according to DIN EN 60529	IP 54	IP 54	IP 54
USB interface	yes	yes	yes
Voltage	100 - 240 V	100 - 240 V	100 - 240 V
Frequency	50/60 Hz	50/60 Hz	50/60 Hz
Power input	69 W	69 W	69 W
DC Voltage	24 V=	24 V=	24 V=
Current consumption	2900 mA	2900 mA	2900 mA
