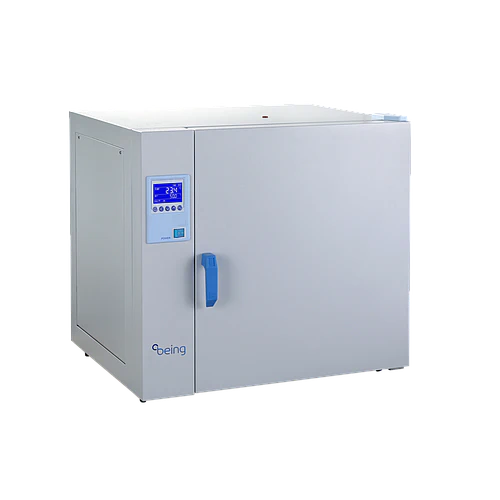

BEING BIF Mechanical Convection Incubators

Overview

Laboratory incubator applications are diverse because of the many different industries and protocols they are used for, the BEING LAB Incubator family is designed to accommodate a wide range of applications. The BEING Controller guarantees temperature accuracy and control.

Features:

• Design, safety test results are in line with international standards DIN 12880.
• Temperature Range : Amb +5℃ ~ 80℃
• P.I.D temperature controller provides accurate and reliable temperature control, built-in Over-temperature protection/alarm function.
• Automatic calibration function, able to adapt to a variety of laboratory environments.
• The BEING Controller provides programmability for 7 periods and 9 steps for each period making for a total of 63 programmable steps.
• Adjustable Exhaust Port/Vent.
• Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.
• Mechanical convection facilitates hot air circulation.
• Available RS-232 and USB ports for external control and data collection (Option)
• Mechanical Convection Incubator
• Volumes from 35 ~ 253 L
• Inner chamber is made from corrosion-resistant mirror stainless steel.
• Round curved inner angle is easy to clean.
• Anti-skid shelf design, easy to operate by single hand.
• Auto Start Feature after power loss/return
• Temperature deviation alarm.
• Over temperature set point alarm.
• Over current protection.
• Independent Over-temperature protection meets DIN 12880 International standard requirements provides you double protection.

Key Attributes

Cu ft.	0.6-8.1(model dependent)
Max Temp	80°C
Min Temp	Ambient +5°C
Temp Uniformity	± 1°C at 37°C
Interior Outlets	No
Alarms	Yes
Datalogging Capable	Optional
Warranty (years)	2
Site	Floor, Stackable
Weight (lbs)	105, 123, 181, 262



Manufacturer Specifications

Chamber Volume	1.2 cu ft (35 liters)	2.4 cu ft (67 liters)	5.2 cu ft (146 liters)	8.9 cu ft (253 liters)
Temperature Range	Ambient+9~176℉ Ambient+5~80℃	Ambient+9~176℉ Ambient+5~80℃	Ambient+9~176℉ Ambient+5~80℃	Ambient+9~176℉ Ambient+5~80℃
Temperature Stability	±0.2	±0.2	±0.2	±0.2
Display Resolution	0.1	0.1	0.1	0.1
Uniformity at 100℃	±3.0	±3.0	±3.0	±3.0
Uniformity at 37℃	±1.0	±1.0	±1.0	±1.0
Heated to 37℃	25min	30min	30min	30min
Max # of Shelves	5	6	10	16
Max. Load per Shelf	20Kg	20Kg	20Kg	20Kg
Internal Dimension (WxHxD)	12.6 x 12.6 x 11.8 inch	15.8 x 16.3 x 15.9 inch	20.5 x 20.9 x 20.9 inch	25.6 x 25.6 x 23.6 inch
External Dimension (WxHxD)	23.0 x 20.9 x 21.7 inch	26.2 x 24.8 x 20.1 inch	30.9 x 29.3 x 27.0 inch	36.0 x 35.2 x 30.0 inch
Net Weight	105 lbs	123 lbs	181 lbs	262 lbs
Timer	1~5999mins	1~5999mins	1~5999mins	1~5999mins
Electrical Requirement	AC120V,60Hz	AC120V,60Hz	AC120V,60Hz	AC120V,60Hz
Power	300W	350W	600W	700W
110V Cat. No.	BH15235U	BH15255U	BH152120U	BH152200U
220V Cat. No.	BH15235C	BH15255C	BH152120C	BH152200C
