VELP AREX 5 CerAlTop™ Hot Plate Stirrer

Overview

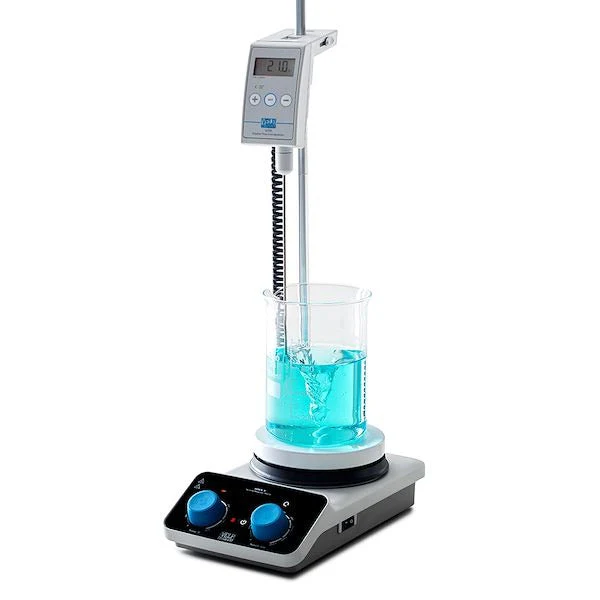

The AREX 5 is a robust and versatile hotplate stirrer suitable for applications ranging from basic to temperature-sensitive where precise sample thermoregulation is required. The AREX 5 can work stand-alone or be upgraded to digital by connecting the VTF digital temperature controller. The CerAlTopTM plate reaches a maximum temperature of 310°C; when connected with the VTF, the AREX 5 is able to thermoregulate the medium up to 300°C with an accuracy of ± 0.5 °C.

Features:

• Two illuminated indicators always inform the operator when the heating is on. Furthermore, the icon stays on when the temperature of the plate is above 50°C even if the instrument is switched off.
• The internal electronic parts are protected by the insulating disk, which, together with the robust die-cast aluminum housing, enables the AREX 5 to withstand even the most demanding laboratory environments and applications, such as when working with cold media (below 0°C).
• The 135 mm diameter top is protected from chemicals and scratches by the superior resistant CerAlTop™ ceramic coating.
• IP42 certified and it is backed up by a 3-year warranty (online product registration required).
• You can rely on the robust AREX 5 and its powerful brushless motor for everyday laboratory applications like sample and buffer solutions preparation, as it stirs volumes up to 20 liters (H2O).
• By turning the right knob of the AREX 5 it is possible to easily adjust the stirring speed from 100 up to 1500 rpm.
• The AREX 5 is equipped with VELP-engineered SpeedServo™ torque compensation technology that ensures constant speed even when the viscosity of the medium changes.

Key Attributes

Maximum volume (L):	20
Minimum Volume (L):	N/A
Speed max (rpm):	1500
Speed min (rpm):	100
Max temperature (◦C):	310 °C
Plate:	Round
Plate material:	CerAlTop™ (ceramic coated aluminum alloy)
Torque max (Ncm):	N/A
Controls:	Analog
Timer:	No
Programmable:	No
Reverse rotation:	No
Warranty (years):	3
Weight (lbs):	3.7
Dimensions Width (in):	6.3
Dimensions Height (in):	3.3
Dimensions Length (in):	10

Manufacturer Specifications

USER INTERFACE Analog
HOUSING MATERIAL Epoxy painted aluminum structure
PLATE MATERIAL CerAlTop™ (ceramic coated aluminum alloy)
PLATE DIAMETER 135 mm
STIRRING VOLUME 20 L
STIRRING SPEED RANGE 100 - 1500 rpm
SPEED CONTROL Analog
MOTOR Brushless
TORQUE COMPENSATION SpeedServo™
TEMPERATURE RANGE Room temp - 310 °C
HEATING CONTROL Analog
EXTERNAL TEMPERATURE SENSOR CONNECTION VTF
THERMOREGULATION ACCURACY ± 0.5 °C (VTF)
HOT PLATE WARNING SYSTEM Illuminated Icon (when the temperature is above 50 °C)
PROTECTION CLASS IP 42
POWER INPUT 630 W
WEIGHT 1,7 kg (3,7 lb)
DIMENSIONS (WXHXD) 160x270x85 mm (6,3x10,6x3,3 in)
