SE Microplate Holders

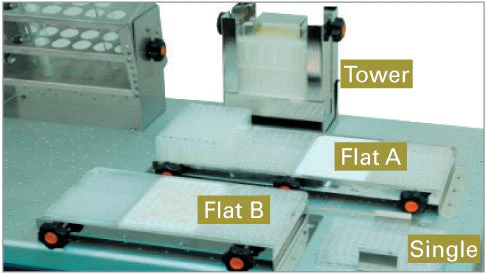

Microplate holders for Jeio Tech Shakers (required platform sold separately) Available in three styles: tower type, flat type (small and large), and single type.

• Tower type holder is for 10 standard or deep well plates.
• Large flat holder is for 4 standard or deep well plates.
• Small flat holder is for 3 standard or deep well plates.
• Single type holder is for 1 standard or deep well plate.

Standard well plate height: 14.7mm.

Platform compatibility and maximum mountable microplate holder capacity possible per platform:

Description			OS-2000	OS-3000	OS-4000	OS-7100 OS-7200	CMS-350
Cat.No.	Universal platform		AAA3A501-V2	AAA23501-V3	AAA23502-V3	AAA23503-V3	AAA3B501
-	Microplate holders	.	Max. mountable microplate holders
AAA23654		Single	6	8	15	25	6
AAA23651		Tower	4	6	10	21	6
AAA23652		Flat A (large)	-	-	2	4	-
AAA23653		Flat B (small)	1	2	3	6	-



Description			SKC - 6000 models		SKC - 7000 models
			Small	Large	Small	Large
Cat.No.	Universal platform	Single	AAA30501	AAA30503	AAA30502	AAA30504
		Dual	-	-	AAA30541	AAA30542
-	Microplate holders	Holder type	Max. mountable microplate holders
AAA23654		Single	20	23	25	28
AAA23651		Tower	16	19	22	25
AAA23652		Flat A(large)	3	4	4	5
AAA23653		Flat B(small)	4	5	6	7



Description		IST-3075/R	IST-4075/R	ISF-7100/R ISF-7200/R	ISS-3075/R	ISS-4075/R
Cat.No.	Universal platform	AAA23501-V3	AAA23502-V3	AAA23053-V3	AAA31501-V3	AAA23502-V3
-	Microplate holder type	Max. mountable microplate holders
AAA23654	Single	8	15	25	8	15
AAA23651	Tower	5	8	21	6	10
AAA23652	Flat A(large)	-	2	4	-	2
AAA23653	Flat B(small)	2	2	6	2	3

* Microplate holders need to be mounted on an universal platform which is sold separately.
