Ohaus Mini Vortex Mixers

Overview

Four Mini Vortex Mixer models for gentle to high-speed mixing are available. Analog model offers variable speed control, and digital model allows input of the exact speed and time to achieve reproducible results. Pulsing model features a unique pulse action that reduces heat generation, while providing more effective mixing and cell disruption. Fixed speed model offers one-touch, high-speed mixing.

• Select from Two Modes of Operation—Touch or Continuous
• Variable Speed Models Offer Low RPM Start Up to High-Speed Mixing
• Fixed Speed Models Provide Full RPM for Vigorous Mixing

Fixed Speed Vortex Mixer: Built sturdy to provide stable and reliable vortexing action. Starts mixing when the cup head is pressed down. Speed is fixed at full rpm to provide vigorous vortexing of samples. Model VXMNFS

Analog Vortex Mixer: Built sturdy to provide stable and reliable vortexing action. Control allows low rpm startup for gentle shaking or high speed mixing for vigorous vortexing of samples. Two modes of operation; continuous mode when using accessory attachments or touch mode which activates mixing when depressing the cup head. Model VXMNAL

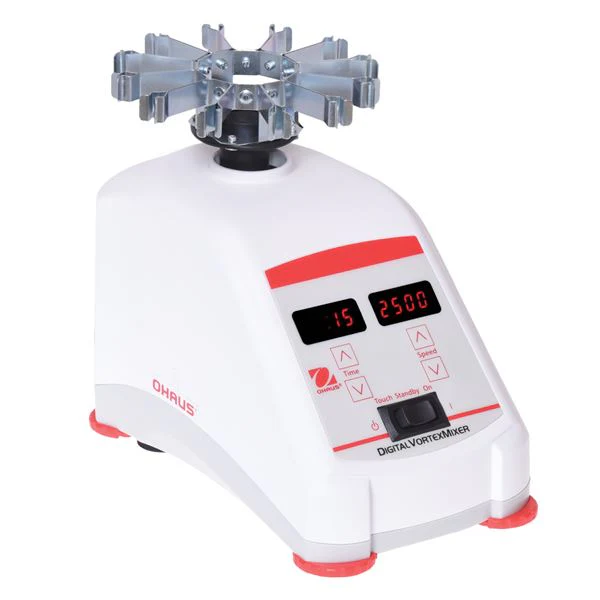

Digital Vortex Mixer: Built sturdy to provide stable and reliable vortexing action. Ideal for applications that demand repeatable results. Microprocessor control maintains set speed for strong, consistent mixing action. Timer will display elapsed time or, when programmed to user defined time limit, the unit will shut off when time reaches zero. Two modes of operation; continuous mode when using accessory attachments or touch mode which activates mixing when depressing the cup head. Model VXMNDG

Pulsing Vortex Mixer: Units include a 3-wire cord and plug . Includes cup head, 3" head with cover, and an easy-to-load 1.5 mL to 2 mL Micro-Tube Holder. Holder has a built-in cup head. Model VXMNPS

Operating Conditions: Unit can be run in conditions from 4 to 40°C (39 to 104°F), 20% to 85% relative humidity, non-condensing.

Key Attributes

Type	Vortexers
Incubation	No
Refrigeration	No
Stacking	No
Platform Area (ft^2)	n/a
Max Load (lb)	n/a
RPM - Max	3200
RPM - Min	300
Orbit Diameter (mm)	2.5 mm, 4.9 mm
Platform Dimensions	N/A
Warranty	2 years
Weight (lb)	14.4
Width (in)	8.3
Depth (in)	4.8
Height (in)	6.5



Manufacturer Specifications

Control Type	Fixed Speed	Analog	Digital	Pulsing
Frequency	50/60 Hz
Voltage	120V
Amps	1.2
Watts	150
Speed Range	3200 rpm	300 to 3200rpm	500 to 3000rpm	500 to 3000rpm
Speed Disclaimer	Maximum speed will vary depending on accessory used.
Orbit	4.9 mm			2.5 mm
Duty Rating	Intermittent
Dimensions	8.3 x 4.8 x 6.5"
Certifications	UL Listed
Origin	Manufactured in the USA
