Select Size
From $209.70
Original: $699.00

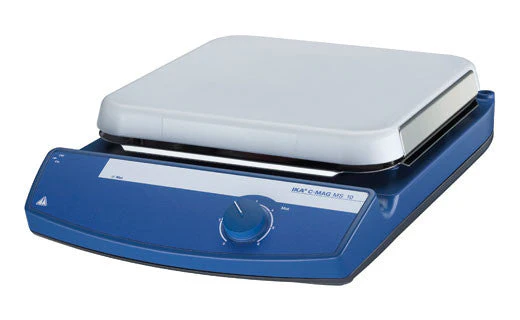

-70%IKA C-MAG MS Series Magnetic Stirrers—
$699.00
$209.70The Story
Overview
Magnetic stirrer without heating. With ceramic set-up plate which offers excellent chemical resistance.
Features:
- Powerful motor for stirring quantities of up to 5 l, 10 l, or 15 l (H2O) depending on model.
- Elevated control panel for protection against leaking liquids
- Speed range: 100 - 1500 rpm
Key Attributes
| Maximum volume (L): | 5, 10, or 15 |
| Minimum Volume (L): | N/A |
| Speed max (rpm): | 1,500 |
| Speed min (rpm): | 100 |
| Max temperature (◦C): | N/A |
| Plate: | Square |
| Plate material: | Ceramic |
| Torque max (Ncm): | N/A |
| Controls: | Analog |
| Timer: | No |
| Programmable: | No |
| Reverse rotation: | No |
| Warranty (years): | 2 |
| Weight (lbs): | 6.6, 11, or 13.2 |
| Dimensions Width (in): | 5.9, 8.66, or 11.8 |
| Dimensions Height (in): | 4.13 |
| Dimensions Length (in): | 10.24, 12.99, or 16.34 |
Manufacturer Specifications
| Model | MS 4 | MS 7 | MS 10 |
| Number of stirring positions | 1 | ||
| Stirring quantity max. per stirring position (H2O) | 5 l | 10 l | 15 l |
| Motor rating output | 1.5 W | ||
| Direction of rotation | left | ||
| Speed control | scale 0 - 6 | ||
| Speed range | 100 - 1500 rpm | ||
| Stirring bar length max. | N/A | 80 mm | |
| Set-up plate material | ceramic | ||
| Set-up plate dimensions | 100 x 100 mm | 180 x 180 mm | 260 x 260 mm |
| Dimensions (W x H x D) | 150 x 105 x 260 mm | 220 x 105 x 330 mm | 300 x 105 x 415 mm |
| Weight | 3 kg | 5 kg | 6 kg |
| Permissible ambient temperature | 5 - 40 °C | ||
| Permissible relative humidity | 0.8 | ||
| Protection class according to DIN EN 60529 | IP 21 | ||
| Voltage | 230 / 120 / 100 V | ||
| Frequency | 50/60 Hz | ||
| Power input | 30 W | ||
