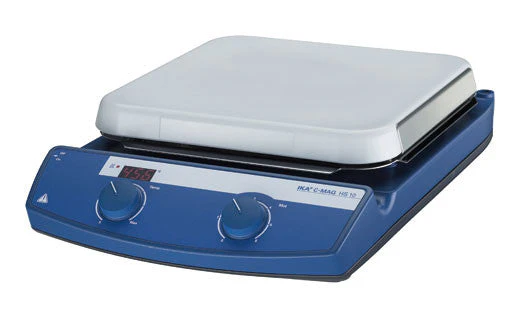

IKA C-MAG HS Series Magnetic Hotplate Stirrers

Overview

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

Standard Model Features:

• Powerful motor for stirring quantities of up to 5 l, 10 l, or 15 l (H2O) depending on model.
• Fixed safety circuit of 550 °C
• Hot Top indicator >> hot surface warning to prevent burns!
• Exact temperature setting via digital display (LED)
• Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control (On HS 7 and HS 10 models)
• Digital error code display
• Elevated control panel for protection against leaking liquids

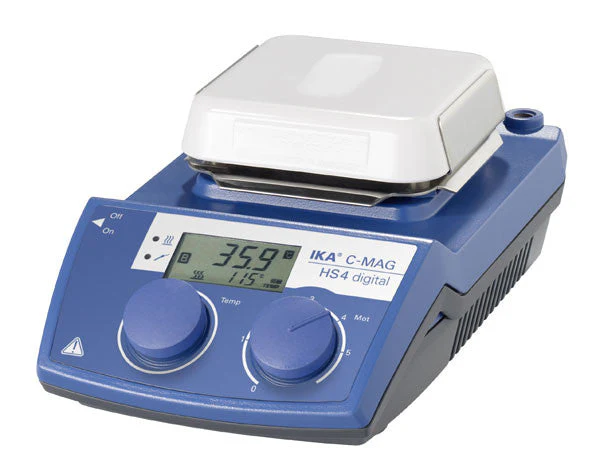

Digital Model additional features:

• Simultaneous digital display of target and actual temperatures via LCD dispaly
• Connection for a PT 1000 temperature sensor enable a precise temperature control (included with purchase)
• Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
• Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
• 3 operating modes to choose (standard, safe, adjustment protection)

Key Attributes

Maximum volume (L):	5, 10, or 15
Minimum Volume (L):	N/A
Speed max (rpm):	1,500
Speed min (rpm):	100
Max temperature (◦C):	500
Plate:	Square
Plate material:	Ceramic
Torque max (Ncm):	N/A
Controls:	Digital
Timer:	No
Programmable:	No
Reverse rotation:	No
Warranty (years):	2
Weight (lbs):	6.6, 11, or 13.2
Dimensions Width (in):	5.91, 8.66, or 11.8
Dimensions Height (in):	4.13
Dimensions Length (in):	10.24, 12.99, or 16.34



Manufacturer Specifications

Model	C-MAG HS 4	C-MAG HS 4 digital	C-MAG HS 7	C-MAG HS 7 digital	C-MAG HS 10	C-MAG HS 10 digital
Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	5 l		10 l		15 l
Motor rating output	1.5 W
Direction of rotation	N/A	left				N/A
Speed control	scale 0 - 6
Speed range	100 - 1500 rpm
Stirring bar length max.	N/A	30 mm	80 mm
Self-heating of the hotplate by max. stirring (RT:22°C/duration:1h)	N/A			28 +K	N/A
Heat output	250 W		1000 W		1500 W
Heating temperature range	50 - 500 °C
Heat control	LED	stepless	LED	LCD	LED	stepless
Heating rate heating plate	2.5 K/min		5 K/min
Connection for ext. temperature sensor	N/A	PT1000	ETS-D5	PT1000	ETS-D 4 fuzzy	PT1000
Fixed safety circuit	550 °C
Set-up plate material	ceramic
Set-up plate dimensions	100 x 100 mm		180 x 180 mm		260 x 260 mm
Dimensions (W x H x D)	150 x 105 x 260 mm		220 x 105 x 330 mm		300 x 105 x 415 mm
Weight	3 kg		5 kg		6 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	0.8
Protection class according to DIN EN 60529	IP 21
Voltage	230 / 120 / 100 V
Frequency	50/60 Hz
Power input	270 W		1020 W		1520 W

FAQ

What is the set point temperature resolution on the C-MAG HS Series hotplate stirrers?

We've asked IKA this and have yet to get a particularly straight answer, so we'll just tell you what they told us...

"The C-MAG Basic unit has an analog scale of 0-500 with 5 marks on the dial. In between the first mark, the setting is 30 then at the first mark the setting is 100, the second mark is at 190, the third mark is at 270, the fourth mark is at 330, the fifth mark is at 435 and then the maximum setting is 500 (these are approximate readings). The temperature setting is displayed on the screen.

The C-MAG Digital unit has a digital display scale of 0-500 with a readout of 1 degree increments."
