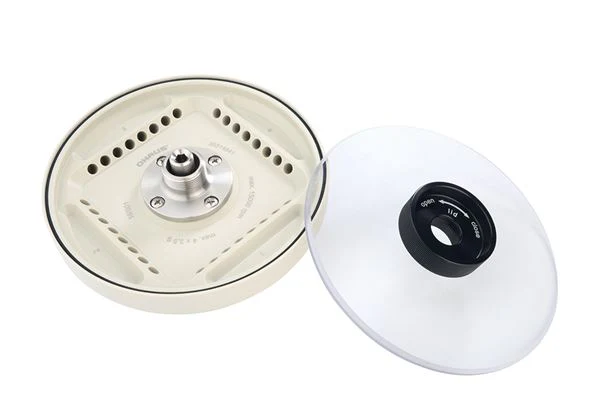

Frontier Rotor R-A4xPCR-15I

Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.

R-A4xPCR/15I Rotor

Maximum Speed	15,000 rpm
Maximum Relative Centrifuge Force (x g)	15,343 g
Maximum Capacity (Rotor)	4 x 8-w PCR Strip
Tube diameter without adapter	N/A
Outer/Inner Radius	61 mm
Rotor Style	Angle
Aerosol tight	Not applicable
Acceleration Time (sec)	16 / 130
Angle	45°
Compatible Models	FC5718; FC5718R
Deceleration Time (sec)	12 / 130
Dimensions (LxØ)	4.96 in (126 mm)
Maximum loading weight	14 g
Multiple Maximum Speeds	No
Net Weight	2.72 lb (1.23 kg)
Working Environment	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: < 95%)
