Frontier Rotor R-A30x2-13MS and Adapters

Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.

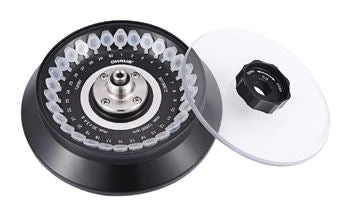

R-A30x2/13MS Rotor

Maximum Speed	13,500 rpm
Maximum Relative Centrifuge Force (x g)	19,150 g
Maximum Capacity (Rotor)	30 x 1.5 / 2.0 ml
Tube diameter without adapter	12 mm / 2.0 ml,1.5 ml
Outer/Inner Radius	94 mm
Rotor Style	Angle
Aerosol tight	Include
Acceleration Time (sec)	29 / 235
Angle	45°
Deceleration Time (sec)	27 / 258
Maximum loading height	45 mm
Maximum loading weight	102 g
Multiple Maximum Speeds	No
Net Weight	3.75 lb (1.7 kg)
Working Environment	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity: < 95%)

Available Adapters:

• Adapter, D6mm, 0.2/0.4ml Tubes x6
• Adapter, D8mm, 0.5ml Tubes x6
