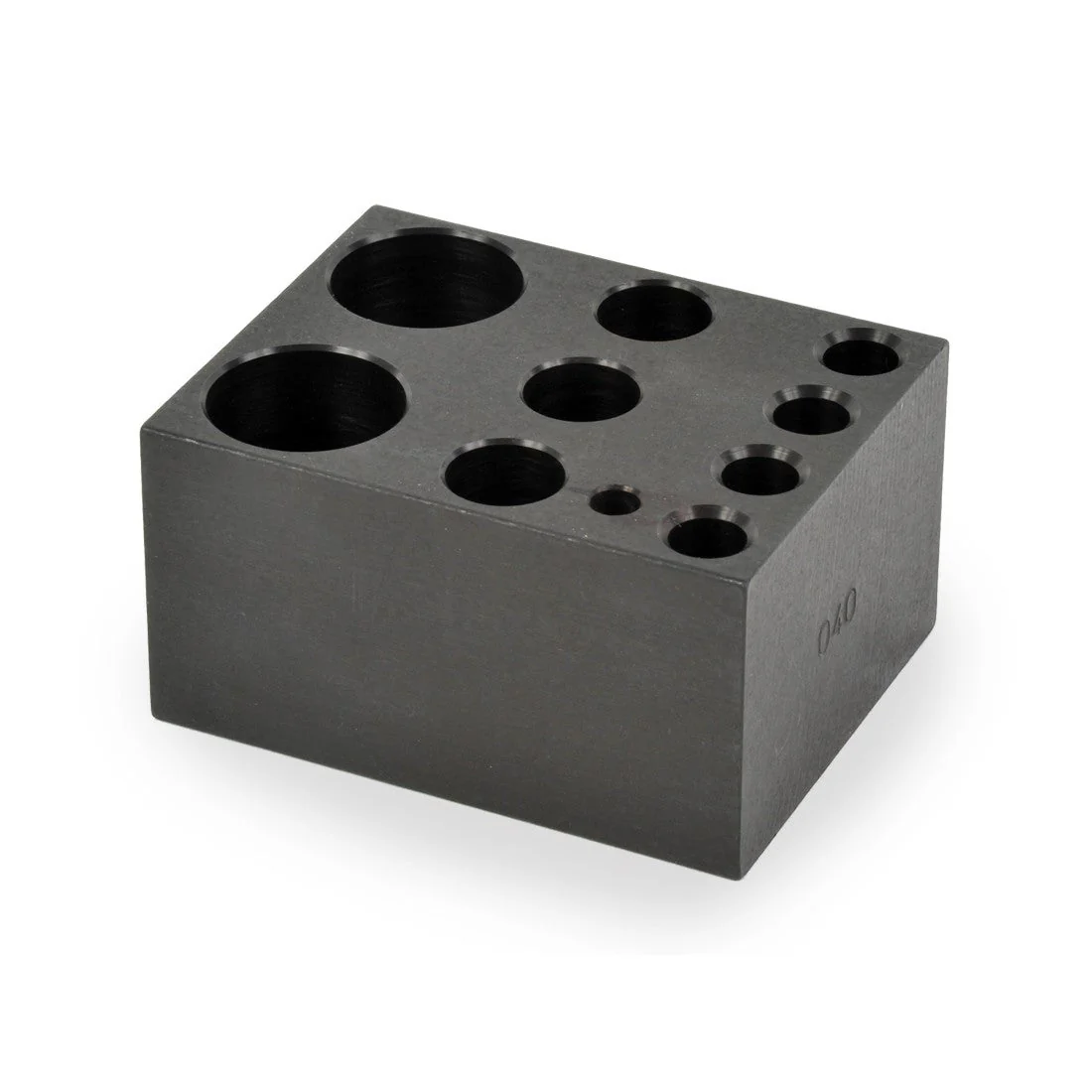

Centrifuge Tube Combination Block

Modular Blocks are constructed from a solid anodized aluminum block, ideal for its temperature conducting and corrosion resistant properties. The close contact of tubes to block walls allow for maximum heat retention. Each block has a thermometer well for measuring block temperature.

Modular blocks also fit in the Dry Block Heaters.

Block dimensions (L x W x H): 3.75 x 3 x 2" (9.5 x 7.6 x 5.1cm)

Applications: Cell cultures, hybridizations, and extraction procedures.

This block has been designed for variable sized samples. The block holds 9 tubes in 3 different sizes.

Centrifuge Tube Combination Block
Single Block	No. of Wells	Well Diameter	Well Depth
1.5mL	4	11.1mm	39.1mm
15mL	3	17.1mm	44.5mm
50mL	2	29.0mm	47.6mm
