The Story
Overview

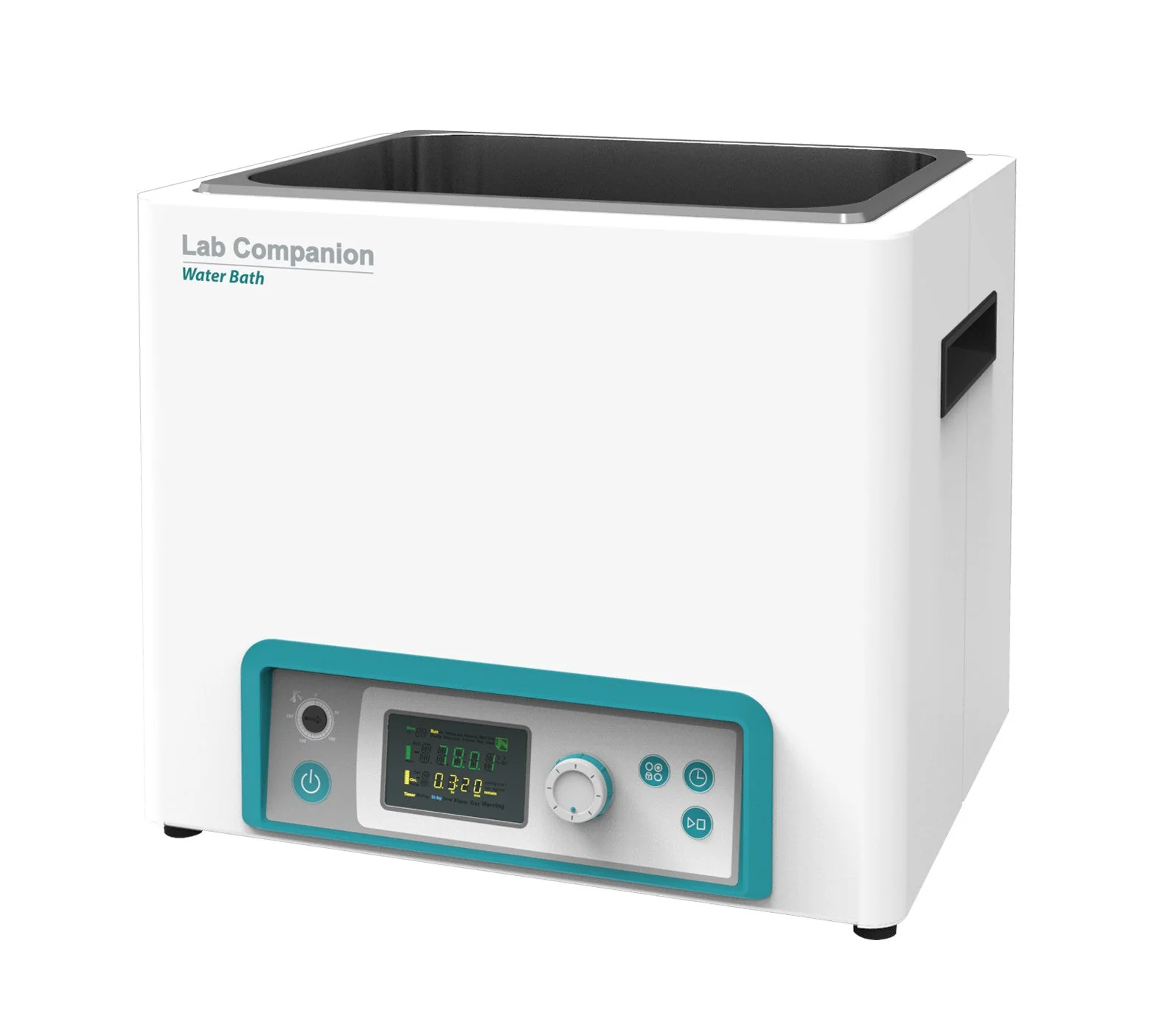

Outstanding temperature control water baths for diverse applications.
Models: BW3-05G/10G/20G
Performance
- Temperature range from ambient +5℃ to 100℃.
- Microprocessor PID control / Automatic tuning / Calibration.
Convenience
- Easy readout digital LED displays. (0.1℃resolution)
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Programming functions are ideal for critical research quality control, and regulatory tests.
- Convenient memory function of up to three frequently set temperature.
- Corrosion-resistant stainless steel construction allowing other bath fluids as well as water and silicone fluids.
- Low-profile reservoir design.
Safety
- Isolated design of heater, and sensor by a baffle plate to protect users and samples against direct contact.
- Complete safety protection system with warning alarms.
- - Low fluid level and dry-running, over-temperature, over-current.
- Splash-proof keypad.
Key Attributes
| Type | Incubated Baths |
| Incubation | Yes |
| Refrigeration | No |
| Temp Range (°C) | Ambient +5 to 100 |
| Capacity (L) | 3.5, 11.5, 20 |
| Circulation | Internal |
| Brand | Jeio Tech |
| MaxFlow Rate (l/min) | N/A |
| Temp Stability (°C) | ±0.4, ±0.3 |
| Timer | Yes |
| Alarms | No |
| Digital or Mechanical | Digital |
| Data connection | No |
| Tank Material | Stainless Steel |
| Sample Agitation | No |
| Media Racks Available | Yes |
| Warranty (years) | 1 (2 years after submission of warranty registration card) |
| Weight (lb) | 14, 22, 41 |
Manufacturer Specifications
| Model | BW3-05G | BW3-10G | BW3-20G | |
|---|---|---|---|---|
|
Bath volume (L / cu ft) |
3.5 / 0.1 |
11.5 / 0.4 |
20 / 0.7 |
|
|
Working temperature range (℃ / ℉) |
Amb. +7 to 100 / Amb. +12.6 to 212 |
|||
|
Temperature stability 1) (±℃ / ℉) |
0.4 / 0.72 |
0.3 / 0.72 |
0.3 / 0.72 |
|
|
Dimension |
Bath opening / depth (W×L, D) (mm / inch) |
240×136, 150/ 9.4×5.4, 5.9 |
300×240, 200/ 11.8×9.5, 7.9 |
498×300, 200/ 19.6×11.8, 7.9 |
|
Exterior with gable cover (W×L×H) (mm / inch) |
307×200×264/ 12.1×7.9×10.4 |
360×300×294 / 14.2×11.8×11.6 |
564×356×294 / 22.2×14×11.6 |
|
|
Net weight (kg / lbs) |
6.5 / 14.3 |
10 / 22 |
18.5 / 40.8 |
|
|
Electrical requirements (230V, 50 / 60Hz) |
3A | 4.3A | 8.3A | |
|
Cat. No. |
AAH41035K | AAH41315K | AAH41325K | |
