Jeio Tech BW Economy Digital and Dual Baths
HomeStore

Jeio Tech BW Economy Digital and Dual Baths

Jeio Tech BW Economy Digital and Dual Baths

Select Type
Select Size
Select Electrical Requirements
From $377.40

Original: $1,258.00

-70%
Jeio Tech BW Economy Digital and Dual Baths—

$1,258.00

$377.40

The Story

Overview

Model selection between single and dual baths.
Models: BW-05H/10H/20H, BW-0505H/0510H/1010H/1020H

Performance

  • Temperature range from ambient +5℃ to 100℃.
  • Microprocessor PID control / Automatic tuning / Calibration.

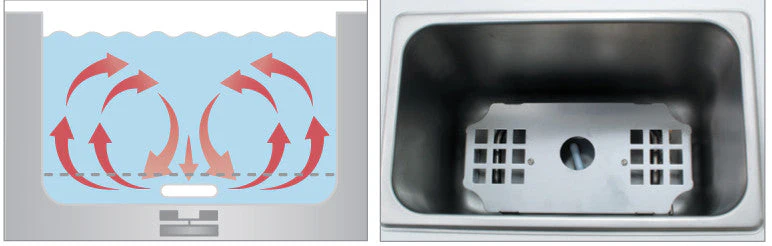

  • Powerful circulation system using our patented agitator.

Safety

  • Two independently controlled reservoirs merged into a single unit for space saving. (for Dual models)
  • Digital LED displays with quick adjustable dial knob. (0.1℃resolution)
  • Low-profile design with sloped control panel for easier access and better safety.

Convenience

  • Isolated design of heater, and sensor by a baffle plate to protect users and samples against direct contact.
  • Complete safety protection system with warning alarms.
    • - Over-temperature, over-current protection.
  • Keypad lock function prevents accidental changes during operation.

PLEASE NOTE: 230 V units are not stocked in the United States and are special ordered from Korea. They have a 10 - 12 week lead time.

    Key Attributes
    Type Circulating Baths
    Incubation Yes
    Refrigeration No
    Temp Range (°C) Ambient +5 to 100
    Capacity (L) 3.5, 11.5 and 20
    Circulation Internal Only
    Brand Jeio Tech
    MaxFlow Rate (l/min) N/A
    Temp Stability (°C) ±0.1°C
    Timer No
    Alarms Yes
    Digital or Mechanical Digital
    Data connection No
    Tank Material Stainless
    Sample Agitation No
    Media Racks Available Yes
    Warranty (years) 1 (2 years after submission of warranty registration card)
    Weight (lb) 14, 21, 27, 31, 34, 39
    Manufacturer Specifications
    Digital Model BW-05H BW-10H BW-20H

    Bath volume (L / cu ft)

    3.5 / 0.1

    11.5 / 0.4

    20 / 0.7

    Working temperature range (℃ / ℉)

    Amb. +5 to 100 / Amb. +9 to 212

    Temperature stability 1) (±℃ / ℉)

    ±0.1 / 0.18

    Dimension

    Bath opening / depth
    (W×L, D) (mm / inch)

    240×136, 150/ 9.4×5.4, 5.9

    300×240, 200/ 11.8×9.5, 7.9

    498×300, 200/ 19.6×11.8, 7.9

    Exterior(W×L×H) (mm / inch)

    307×216×266 / 12.1×8.5×10.5

    364×316×318 / 14.3×14.4×12.5

    564×372×318 / 22.2×14.6×12.5

    Net weight (kg / lbs)

    6.5 / 14.3

    9.5 / 21

    15.5 / 34.2

    Electrical requirements (230V, 50 / 60Hz)

    3.0A

    4.3A

    8.7A
    Cat. No. AAH45115K AAH45125K AAH45135K
    Electrical requirements (120V, 60Hz) 5.8A 8.3A 8.3A
    Cat. No. AAH45113U AAH45123U AAH45133U

    1) Technical data according to DIN 12876. (bath fluid : water at 50℃)

    Dual Model BW-0505H BW-0510H BW-1010H BW-1020H

    Bath volume (L / cu ft)

    3.5 & 3.5 / 0.1 & 0.1

    3.5 & 11.5 / 0.1 &0.4

    11.5 & 11.5 / 0.4 & 0.4

    11.5 & 20 / 0.4 & 0.7

    Working temperature range (℃ / ℉)

    Amb. +5 to 100 / Amb. +9 to 212

    Temperature stability 1) (±℃ / ℉)

    ±0.1 / 0.18

    Dimension

    Bath opening / depth
    (W×L, D & W×L, D) (mm / inch)

    240×136, 150
    per chamber

    240×136, 150
    & 300×240, 200

    300×240, 200
    per chamber

    300×240, 200
    & 498×300, 200

    9.4×5.4, 5.9
    per chamber

    9.4×5.4, 5.9
    & 11.8×9.5, 7.9

    11.8×9.5, 7.9
    per chamber

    11.8×9.5, 7.9
    & 19.6×11.8, 7.9

    Exterior
    (W×L×H) (mm / inch)

    590×216×265
    / 23.2×8.5×10.4

    544×316×318
    / 21.4×12.4×12.5

    706×300×318
    / 27.8×11.8×12.5

    844×372×318
    / 33.2×14.6×12.5

    Net weight (kg / lbs)

    9.7 / 21.3

    12.4 / 27.3

    14 / 30.8

    17.6 / 38.7
    Electrical requirements (230V, 50 / 60Hz) 3 & 3A 3 & 4.3A 4.3A & 4.3A 4.3A & 8.7A
    Cat. No. AAH47115K AAH47125K AAH47135K AAH47145K
    Electrical requirements (120V, 60Hz) 5.8A & 5.8A 5.8A & 8.3A 8.3A & 8.3A 8.3A & 8.3A
    Cat. No. AAH47113U AAH47123U AAH47133U AAH47143U

    1) Technical data according to DIN 12876. (bath fluid : water at 50℃)
