Overview

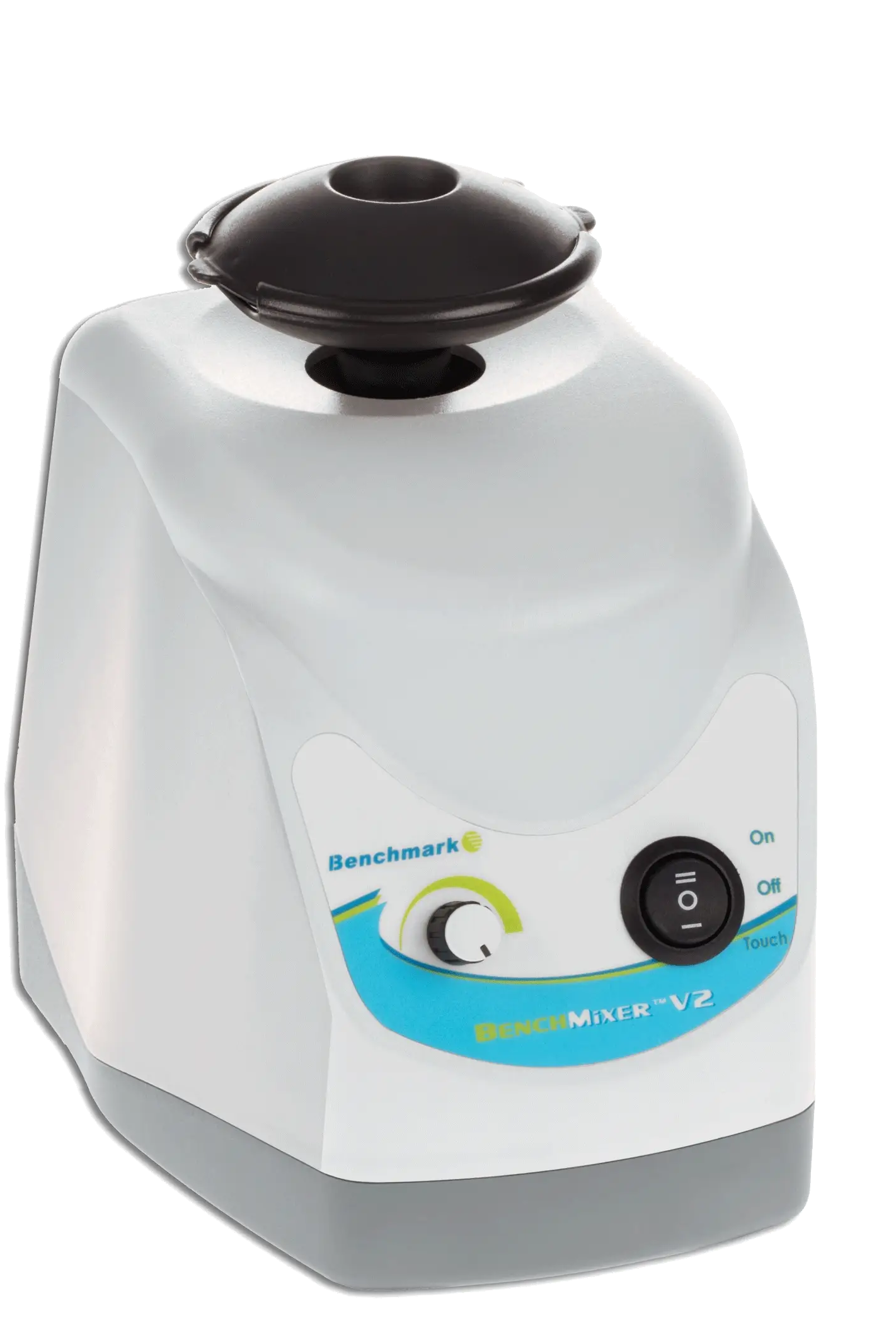

The BenchMixer™ V2 utilizes a smooth and powerful mixing technology similar to the original BenchMixer, with the advantage of a uniquely designed reversible rubber head that can be attached to the mixer in two orientations. For the vortexing of single tubes, the cupped surface would generally be preferred. However, for applications requiring a flat/dimpled surface for mixing uniquely shaped vessels (or a handful of multiple test-tubes), the head can easily be flipped over and reattached in reverse orientation.
Like the original BenchMixer, the drive system is balanced with Q-Drive™ technology, providing a smooth vortexing action, while minimizing noise and excessive vibration. This results in quieter, more efficient and longer lasting operation. With a maximum speed up to 3,200 rpm, the mixer provides an instant vortex of even the largest sample sizes, including full 50ml tubes.
Features:
- Reversible top platform, cup or flat-dimpled surface
- Powerful motor for INSTANT vortexing
- Continuous or "touch" operation
- Q-Drive™ dynamic balancing system
- Variable speed from 200 to 3200 rpm
- Wide variety of accessories, for tubes up to 50ml
Key Attributes
| Type | Vortexers |
| Incubation | No |
| Refrigeration | No |
| Stacking | No |
| Platform Area (ft^2) | n/a |
| Max Load (lb) | . |
| RPM - Max | 3200 |
| RPM - Min | 200 |
| Orbit Diameter (mm) | 3 mm |
| Platform Dimensions | n/a |
| Warranty | 2 years |
| Weight (lb) | 8.4 lbs |
| Width (in) | 5.2" |
| Depth (in) | 6.7" |
| Height (in) | 6.7" |
Manufacturer Specifications
|
Speed:
|
200 to 3200 rpm |
|---|---|
|
Operating modes: |
Touch or continuuous |
|
Orbit: |
3mm |
|
Operating Temp. Range: |
+4 to +45°C |
|
Dimensions: (w x d x h) |
5.2 x 6.7 x 6.7 in. 13.2 x 17 x 17 cm |
|
Weight:
|
8.4 lbs (3.8 kg) |
|
Electrical:
|
115V, 60Hz or 230V, 50Hz, 180W |
|
Warranty:
|
2 Years |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Overview
The BenchMixer™ V2 utilizes a smooth and powerful mixing technology similar to the original BenchMixer, with the advantage of a uniquely designed reversible rubber head that can be attached to the mixer in two orientations. For the vortexing of single tubes, the cupped surface would generally be preferred. However, for applications requiring a flat/dimpled surface for mixing uniquely shaped vessels (or a handful of multiple test-tubes), the head can easily be flipped over and reattached in reverse orientation.
Like the original BenchMixer, the drive system is balanced with Q-Drive™ technology, providing a smooth vortexing action, while minimizing noise and excessive vibration. This results in quieter, more efficient and longer lasting operation. With a maximum speed up to 3,200 rpm, the mixer provides an instant vortex of even the largest sample sizes, including full 50ml tubes.
Features:
- Reversible top platform, cup or flat-dimpled surface
- Powerful motor for INSTANT vortexing
- Continuous or "touch" operation
- Q-Drive™ dynamic balancing system
- Variable speed from 200 to 3200 rpm
- Wide variety of accessories, for tubes up to 50ml
Key Attributes
| Type | Vortexers |
| Incubation | No |
| Refrigeration | No |
| Stacking | No |
| Platform Area (ft^2) | n/a |
| Max Load (lb) | . |
| RPM - Max | 3200 |
| RPM - Min | 200 |
| Orbit Diameter (mm) | 3 mm |
| Platform Dimensions | n/a |
| Warranty | 2 years |
| Weight (lb) | 8.4 lbs |
| Width (in) | 5.2" |
| Depth (in) | 6.7" |
| Height (in) | 6.7" |
Manufacturer Specifications
|
Speed:
|
200 to 3200 rpm |
|---|---|
|
Operating modes: |
Touch or continuuous |
|
Orbit: |
3mm |
|
Operating Temp. Range: |
+4 to +45°C |
|
Dimensions: (w x d x h) |
5.2 x 6.7 x 6.7 in. 13.2 x 17 x 17 cm |
|
Weight:
|
8.4 lbs (3.8 kg) |
|
Electrical:
|
115V, 60Hz or 230V, 50Hz, 180W |
|
Warranty:
|
2 Years |
